Markar FS302 Heavy Duty Full Surface Stainless Steel Pin & Barrel Continuous Hinge

$620.18
This item ships FREE! Usually Ships:  10-15 Business Days
  • Heavy-duty 14 gauge stainless steel
  • Supports weights up to 600lbs
  • .187" diameter stainless steel pin (rod)

Available Options:

Clear

Product Overview

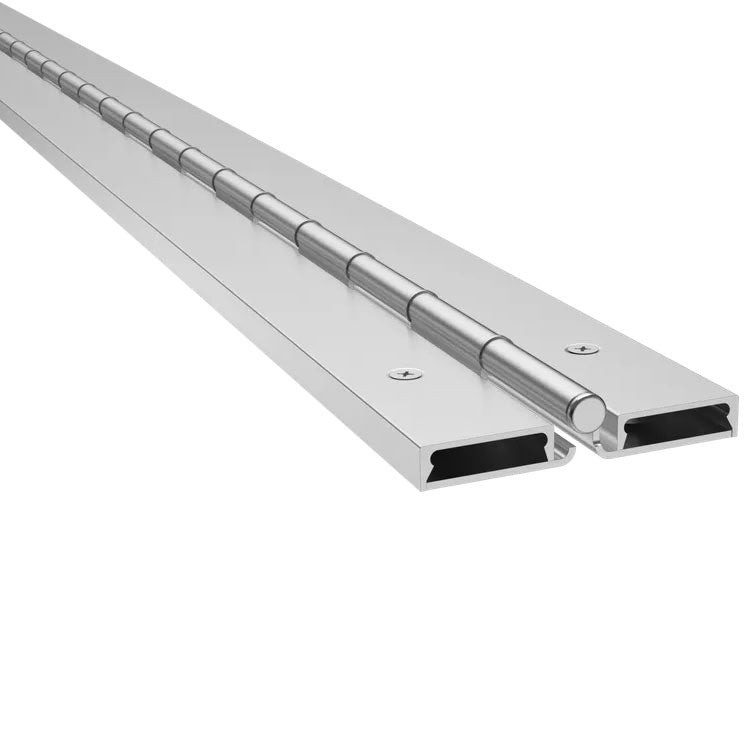

Markar FS302 Heavy Duty Full Surface Pin & Barrel Continuous Hinge, Satin Stainless Steel

The Markar FS302 Series Full Surface Continuous Pin and Barrel Hinge is ideal for flush doors and can be used to repair and replace existing hinges on both fire-labeled and non-labeled doors that have very tight clearances, giving it a weather tight seal.

Features

  • Stainless steel end pins
  • Fasteners concealed by covers
  • Covers are extruded aluminum
  • For flush doors

Benefits

  • Used to repair and replace existing hinges
  • For both fire-labeled and non-labeled doors that have very tight clearances
  • Provides a weather-tight seal
  • Fire ratings up to and including 3 hours

Certifications

  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
  • Warnock Hersey listing
  • ANSI/BHMA Standard A156.26
Brand

Finish

Stainless Steel

Material

304 Stainless Steel

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA Standard A156.26 Grade 1, ANSI/SDI 250.13 Certified

Fire-Rating

UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing

Continuous Hinge Type

Full Surface

Buy American Act Compliance

Meets Buy American Act - Made in USA
