Locinox

Locinox VENUS ADA Complaint Motorized Gate Closer for Pedestrian Swing Gates up to 5ft and 440 lbs

$1,197.76
Usually Ships:  1-2 Business Days
  • For pedestrian gates up to 5 ft wide and 440 lbs
  • Designed for semi-manual or fully automated outdoor use
  • Compact and vandal-proof design

Available Options:

Clear

Product Overview

Locinox VENUS Motorized Gate Closer for Pedestrian Swing Gates and Doors up to 5ft and 440 lbs, Multiple Arm Types, ADA Compliant

The Venus is a plug-and-play motorized gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor's performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener. Awarded an iF DESIGN AWARD

  • Fast and easy installation with Quick-Fix
  • Motorized gate closer with integrated electronics
  • 150 Nm torque
  • Fits on 3 2/16" profiles
  • Steel gear box
  • Anodized aluminium cover

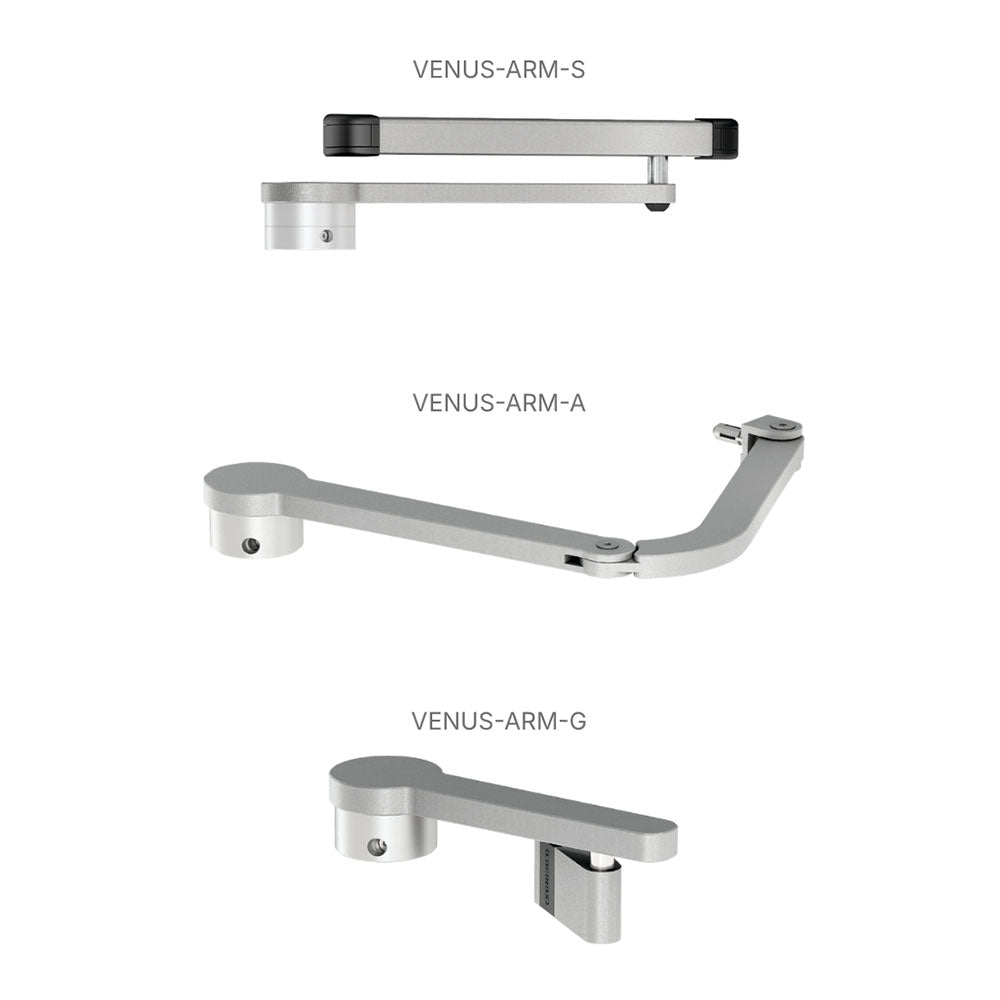

  • 3 different arm options for installation
  • Compact and vandal-proof design
  • Integrated warning light
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use - to be combined with a lock
  • Conforms to UL/cUL 325 standard for automatic operators, tested by ETL
  • Input main power supply: 110V AC to 240V AC
  • Configuration via app
  • Tested up to 500 000 cycles
  • EN 16005 Compliant
  • 3 inputs and 3 outputs (Max. 48W, 24V DC)
  • Temperature range: -22°F to +158°F
  • For pedestrian gates up to 5 ft wide and 440 lbs

Applications

  • Residential pedestrian gates
  • Commercial access walkways
  • Controlled entry points
  • Facilities requiring reliable automatic gate closing

What makes it special?

  • Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection
  • All-in-one gate operator with integrated power supply and circuit board, input/output connectors and indicator light
  • Easy setup with free mobile app

Models: VENUS-G-9005 (P00035921-9005), VENUS-G-SILV (P00035921-SILV), VENUS-A-9005 (P00035917-9005), VENUS-A-SILV (P00035917-SILV), VENUS-S-9005 (P00035917-9005), VENUS-S-SILV (P00035917-SILV)

Brand

Finish

Silver, Black

ADA Compliance

ADA Compliant

Warranty

2 Years
