Locinox SWITCHSTONE-STD-X-230 2-Channel Relay Module

$223.71
Usually Ships:  1-2 Business Days
  • To be used exclusively with the 60W Power Supply
  • Ensures maximum security thanks to 2 external relays
  • Long range secure 2-wire communication with the SlimStone-X, up to 985' distance

Product Overview

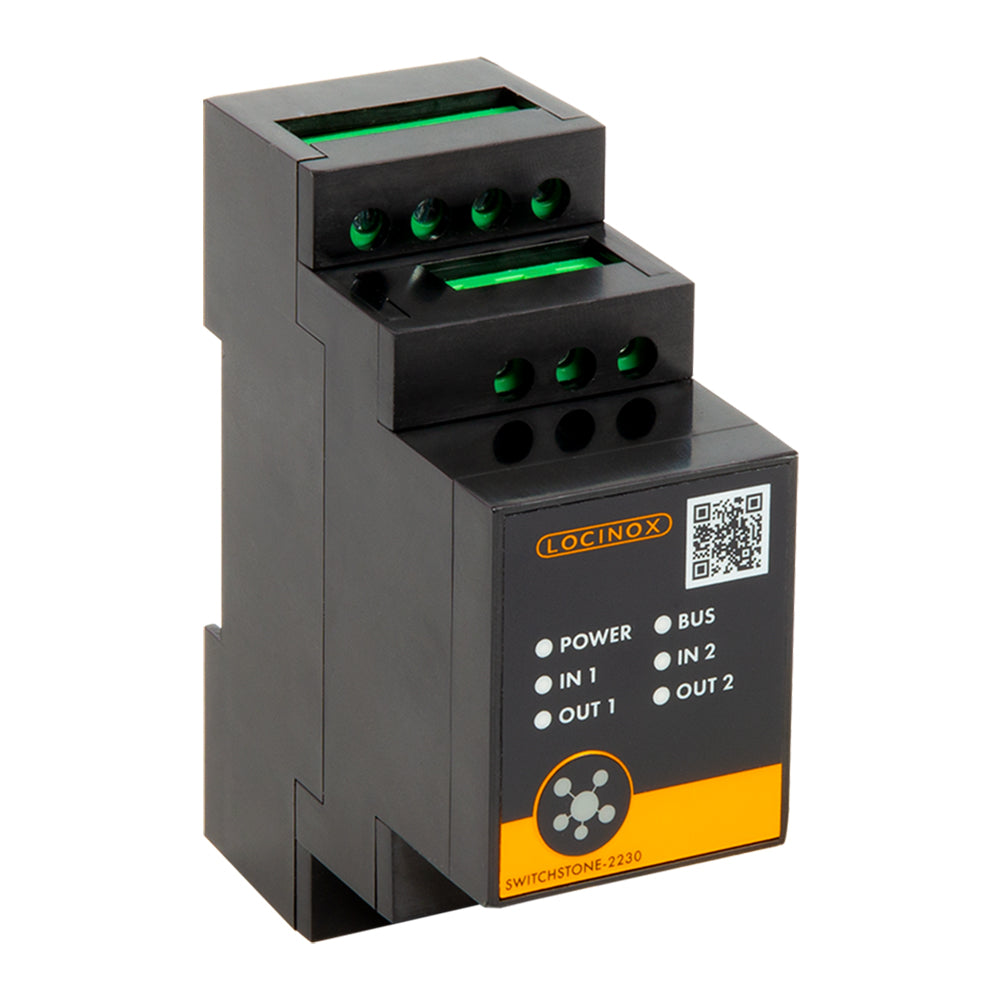

Locinox SWITCHSTONE-STD-X-230 2-Channel Relay Module

The SwitchStone-STD relay module has been developed to work in combination with devices such as the SlimStone-X keypad. The SwitchStone-STD ensures maximum security thanks to 2 external relays, both with a Common, Fail Open and Fail Close contact. These relays are capable of switching voltages up to 250V AC/26V DC, allowing them to be used in a wide range of applications, including switching lighting. Free exit functionality can be easily implemented using the 2 inputs on the module.

  • Tested from -22°F to 185°F
  • Includes 2x 250V AC/26V DC relays, each with COM, Fail Open and Fail Close contact
  • Long range secure 2-wire communication with the SlimStone-X, up to 985' distance
  • Auto back up functionality
  • DIN-rail mountable
  • Relay switching duration adjustable between pulse and timer mode (500 ms - 99 s)
  • Current: maximum 0.07 A
  • Consumption: maximum 1.7 W
  • To be used exclusively with the 60W power supply.
