Locinox

Locinox MAGNUS ADA Complaint Motorized Hinge and Gate Closer in One for Pedestrian Gates

$1,594.19
Usually Ships:  1-2 Business Days
  • For pedestrian gates up to 5 ft wide and 440 lbs
  • Designed for semi-manual or fully automated outdoor use
  • Compact and vandal-proof design

Available Options:

Clear

Product Overview

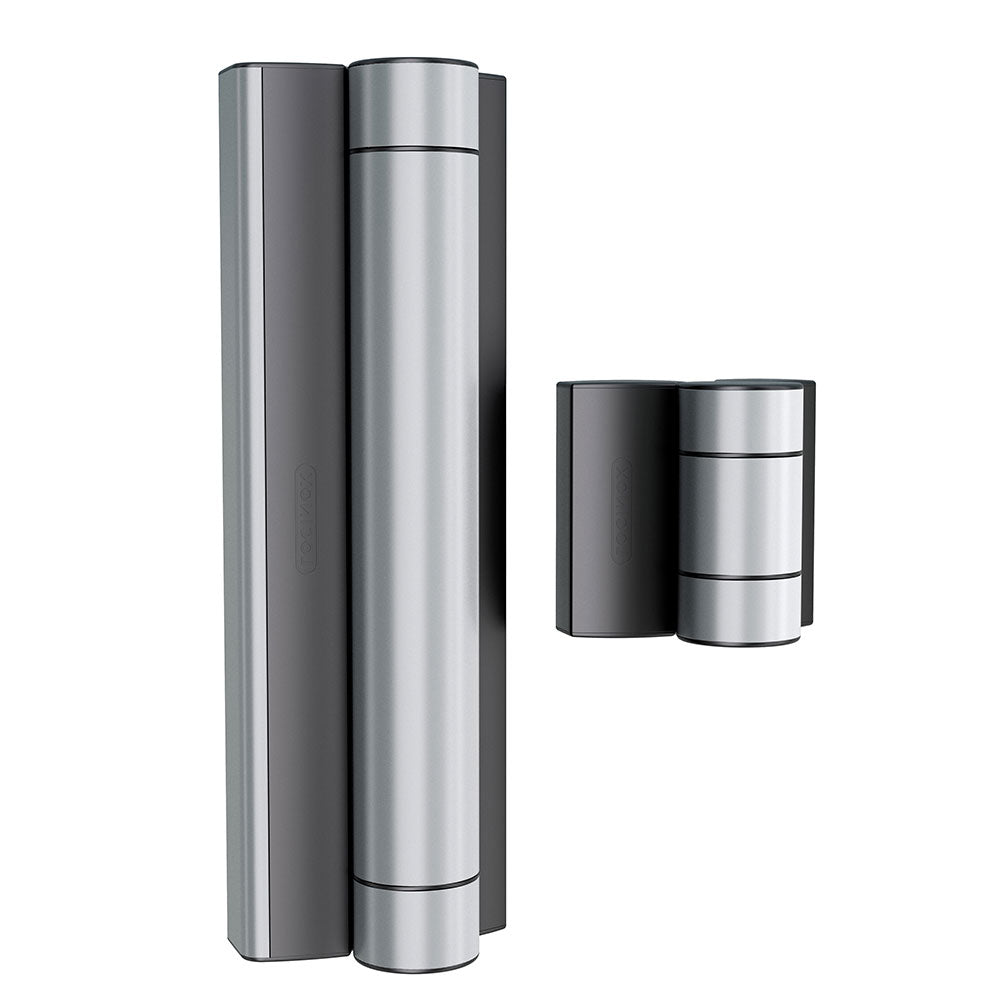

Locinox MAGNUS Motorized Hinge and Gate Closer in One for Pedestrian Gates

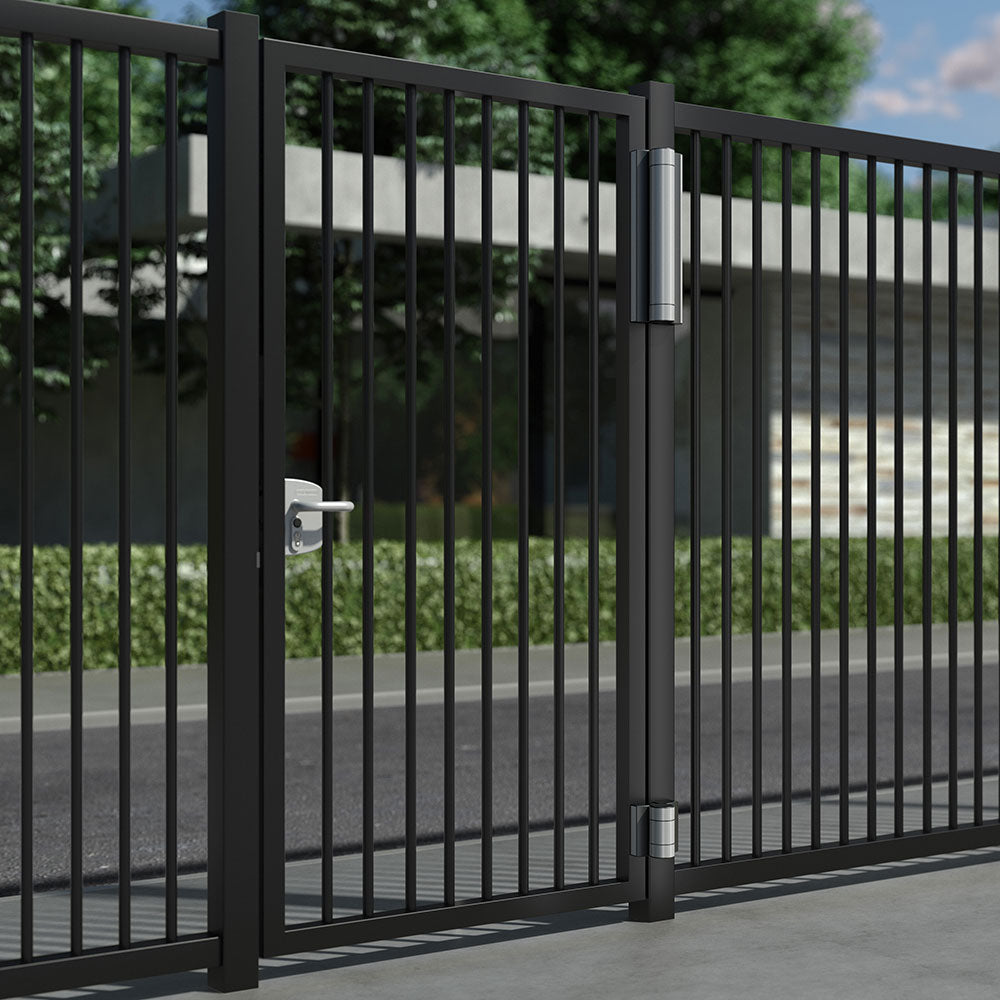

MAGNUS is an ADA-compliant motorized hinge and gate closer in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

  • Fast and easy fixation with Quick-Fix bolts
  • 2-dimensional adjustment: 2 x 20 mm, width and height
  • Motorized gate closer with integrated electronics
  • Steel gear box
  • Anodized aluminium cover
  • Compact and vandal-proof design
  • Motor voltage: 24V DC
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use - to be combined with a lock
  • Conforms to UL/cUL 325 standard for automatic operators, tested by ETL
  • Fits on post profiles from 2 3/8" and gate profiles from 1 9/16"
  • Input main power supply: 110V AC to 240V AC
  • Configuration via app
  • Tested up to 500 000 cycles
  • External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
  • 6-1/2ft cable between motor and connection module
  • EN 16005 Compliant
  • 100 Nm torque
  • For pedestrian gates up to 5 ft wide and 440 lbs

Applications

  • Commercial - businesses, construction zones
  • Facilities - schools, prisons, airports
  • Transportation - parking lots, bike parks
  • Recreation - playgrounds, amusement parks, sports stadiums, swimming pools
Brand

Finish

Silver, Black
