LCN

LCN 9553IQ-REG2 Senior Swing ADA Low-Energy Electromechanical Operator - Push Side Mount

$7,547.67
Usually Ships:  1-2 Business Days
  • Push N' Go permits non-switch activation with a power boost
  • Electromechanical unit with microprocessor control
  • Push side mounting, 72" header

Available Options:

Clear

Product Overview

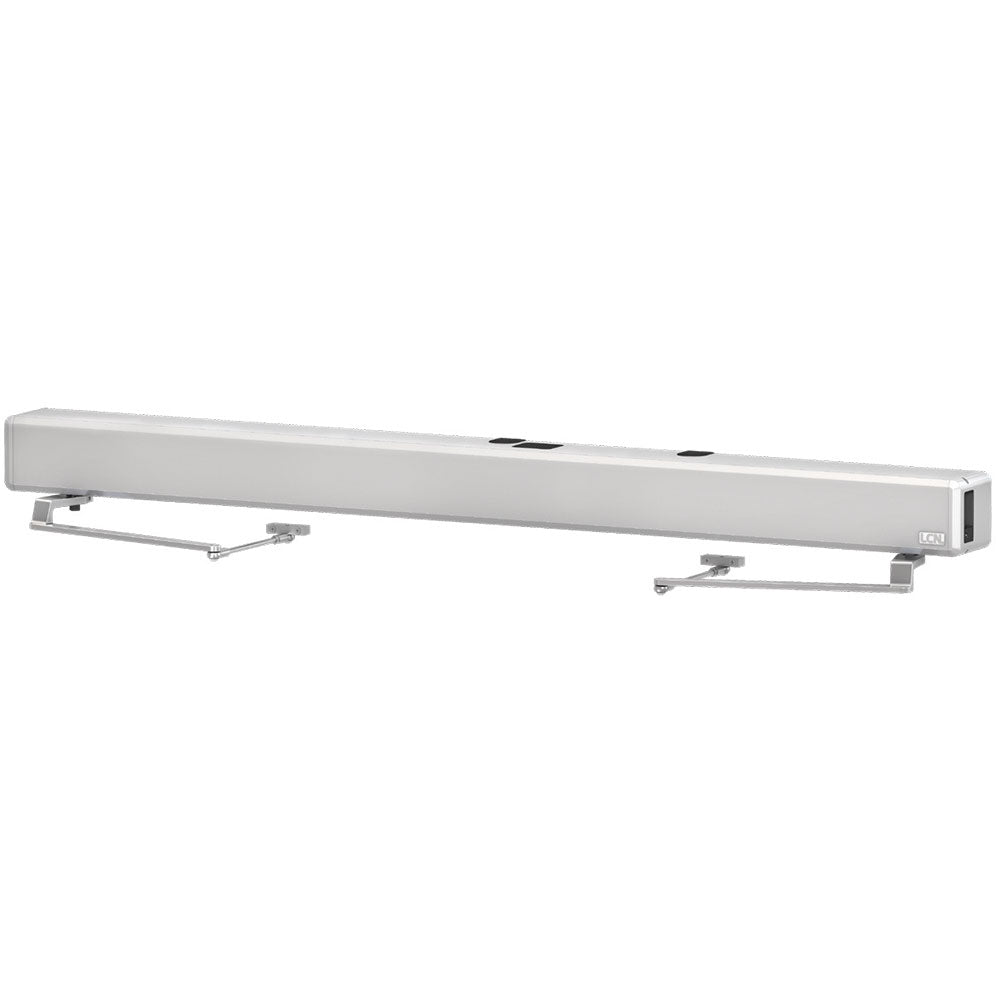

LCN 9553IQ-REG2 Grade 1 Surface Electromechanical Door Operator, Double Lever Arm Regular, Push Side Mounting, 72" Header, Satin Aluminum Clear Anodized Finish, Non-Handed

The LCN® 9550IQ Senior Swing is a heavy-duty electromechanical swing door operator. Designed for a surface mount on double door applications, this configuration is ideal for simultaneous double door operation and features two motor gearboxes with one controller.

When activated, this operator provides a smooth and seamless opening experience to accommodate those with accessibility needs or a pedestrian with their hands full. The 9550IQ can also be operated manually for regular pedestrian traffic and includes both Power Assist and Push n’ Go, which can be activated for an easy, smooth manual open.

Features & Benefits

  • Capability to operate and control doors of up to 600 pounds
  • Power Assist and Push and Go to allow for easy manual operation
  • Auto Reverse on Closing to minimize potential damage from obstructions
  • Opening Speed and Force programmed separately for further customization
  • Off/Hold-Open/Auto switch hidden outside the cover for easy yet discreet access
  • On-board power supply (24VDC Output) to power actuators, card readers, and safety circuits
  • Built-in support for up to six optional safety sensors
  • Certifications: Grade 1 - ANSI A156.19, UL325/228, UL1998, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
  • Fluid: All Weather Fluid
  • Handing: Handed
  • Warranty: 2 years
  • Fasteners: Machine Screws (MS)
  • Mounting: Simultaneous pair, surface mount, pull side, push side, double egress

Operator will be shipped with:

  • Motor gearbox mounting bracket (2)
  • Controller box mounting hooks (2)
  • Cover end cap kit (one left, one right, cover insert(s), fasteners)
  • Regular arm (2 ea)
  • Machine screws

Brand

Finishes

ANCLR Anodized Aluminum

Usage

Heavy Duty

Certifications

Grade 1 - ANSI A117.1, A156.19, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Handing

Non-Handed

Mounting

Push Side (Standard Arm)

Mounting Header Width

72" standard

Arms

Regular Arm

Warranty

2 Years

Buy American Act Compliance

Meets Buy American Act - Made in USA
