Product Overview

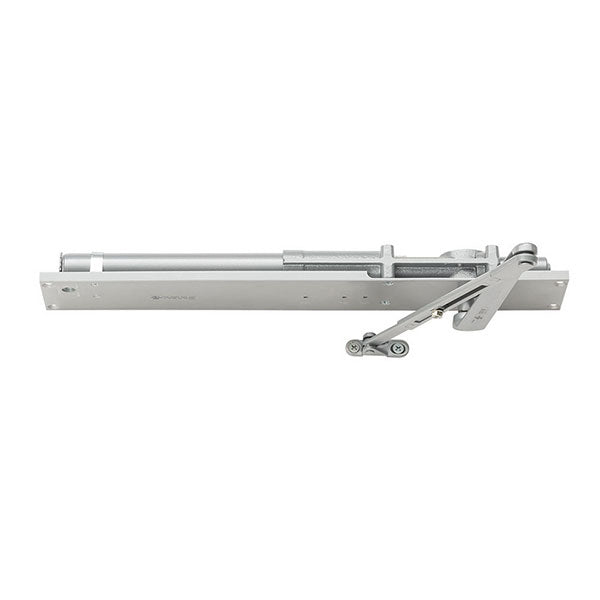

LCN 5036-REG Overhead Concealed Closer, Size 6
The concealed 5030 Series PACER® is a heavy-duty closer designed to fit in a narrow, minimum 1 3⁄4" aluminum transom. The double lever arm provides superior door control and the choice of finishes and arm functions meet virtually all architectural requirements.
- Includes: Standard cylinder with mounting plate, regular arm, and screws (wood and machine)
- Mounting: Concealed (in tube); aluminum frame requires minimum 1 3⁄4" (44 mm) x 4 1⁄2" (114 mm) tube
- Certifications: Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 hour salt spray, meets BAA - Buy American Act
| Brand | |
|---|---|
| Finishes |
696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 693 Black (Powder Coated), 689 Aluminum (Powder Coated) |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Grade 1 - ANSI A156.4 |
| Fire-Rating |
UL and CL listed |
| Body Construction |
Cast Iron Body |
| Cylinder Size |
6 |
| Mounting |
Concealed (in tube); aluminum frame requires minimum 1 3⁄4" (44 mm) x 4 1⁄2" (114 mm) tube |
| Handing |
Handed – LH, RH |
| Fluid |
All Weather Fluid |
| Fasteners |
Wood and Machine Screws (WMS) |
| Door Thickness |
1-3/4" minimum |
| Warranty |
15 Years |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
