LCN

LCN 4040XP Rw/PA Door Closer

Trudoor's Choice Made in USA
$436.05
This item ships FREE! Usually Ships:  Same Day
  • Heavy-Duty, ANSI Grade 1 certified, Made in USA
  • Cast iron body, adjustable spring size 1-6
  • Tri-packed - regular, top jamb, or parallel arm mount

Available Options:

Clear

Product Overview

LCN 4040XP RWPA Heavy-Duty Grade-1 Door Closer, Regular Arm with Parallel Bracket, Full Cover

Extra heavy-duty surface-mounted door closer designed for institutional and other demanding high-traffic applications

Generally regarded as one of the world's top heavy-duty door closer and often duplicated, the 4040XP is LCN’s most durable and flexible heavy-duty closer designed for institutional, industrial, commercial and other demanding high-traffic applications. High-traffic doors call for heavy-duty closers – closers that won’t let you down no matter how many people go through the door or how hard they kick, push or slam against it. And when it comes to heavy-duty closers, no other closer performs like the LCN 4040XP.

  • Designed for commercial, industrial, and institutional applications

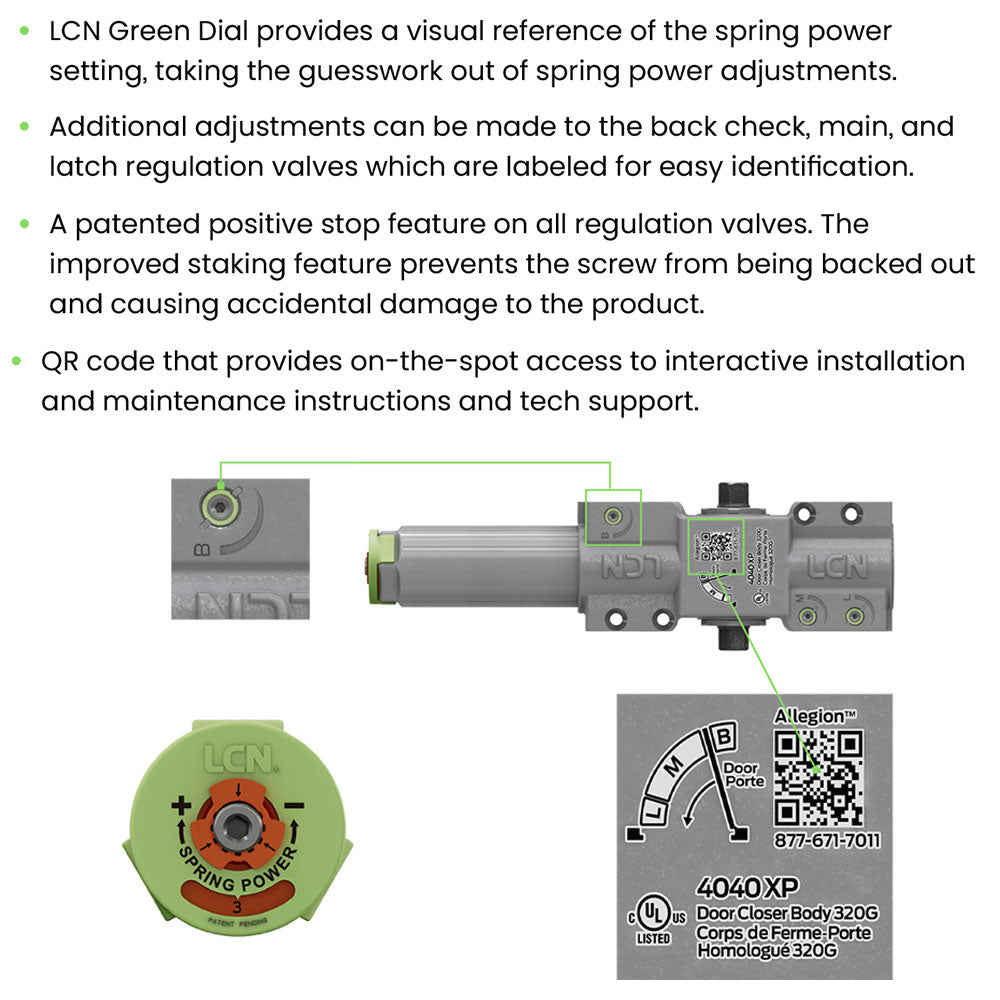

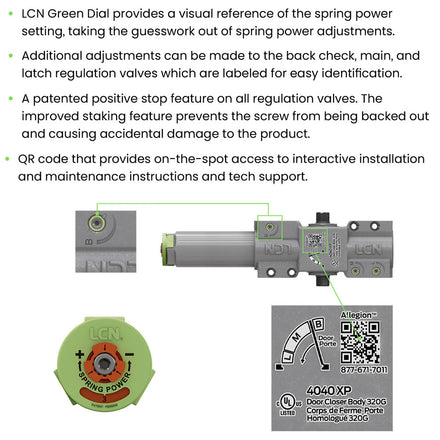

  • Adjustable Spring Size 1-6, - Includes LCN Green Dial to take the guesswork out of spring force adjustments
  • For interior doors to 5'0" wide and exterior doors to 4'0" wide

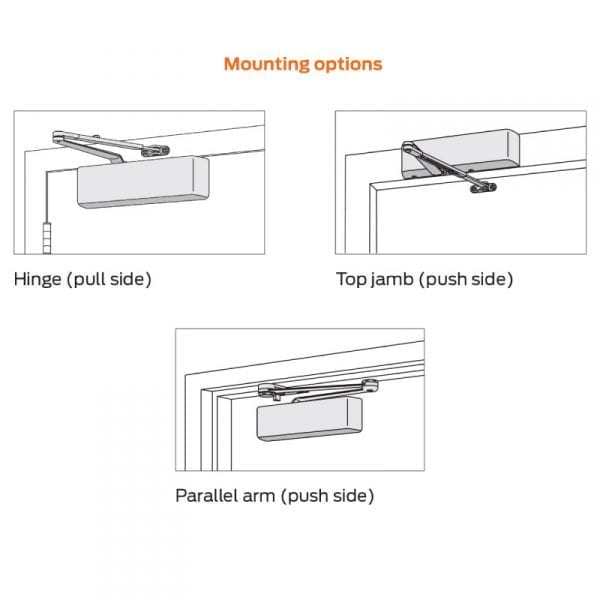

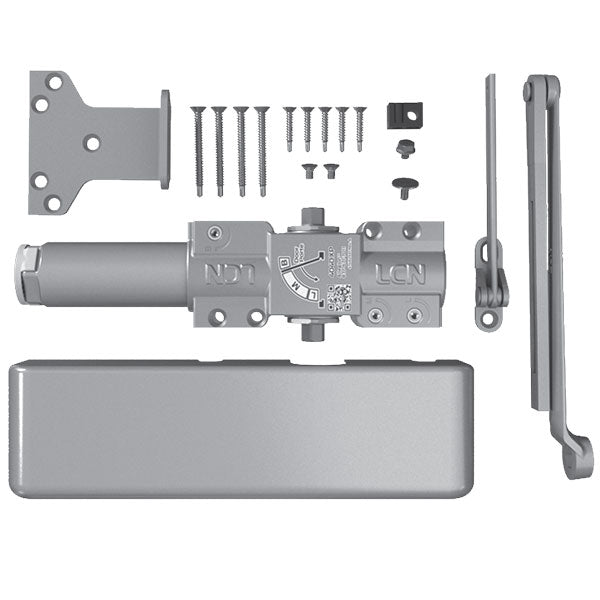

  • Standard tri-pack includes arm and PA bracket for regular pull side, push side top jamb, or push side parallel arm mounting

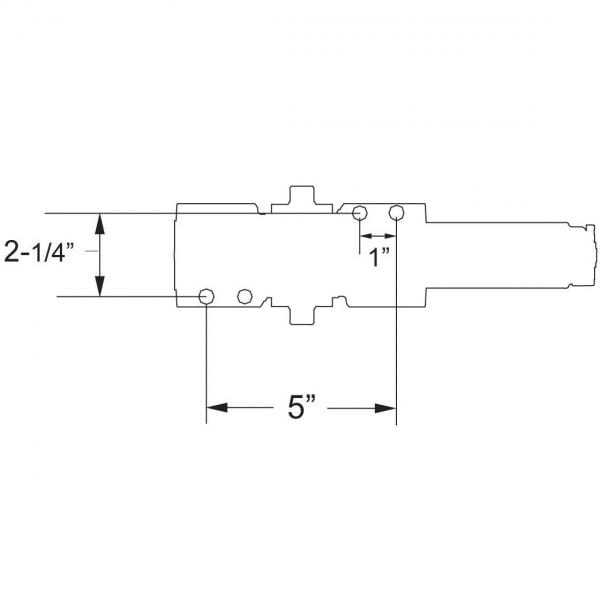

  • Peel-n-stick template for quick and accurate installation - 2-1/4" x 5" mounting hole pattern
  • ANSI/BHMA A156.4, Grade 1 certified

Powder Coated Finishes:

  • AL, BHMA 689 – Aluminum
  • DKBRZ, BHMA 695 - Dark Bronze
  • BLK, BHMA 693 - Black
  • BRASS, BHMA 696 - Brass
  • STAT, BHMA 690 - Statuary Bronze
  • LTBRZ, BHMA 691 - Light Bronze

Models: 4040XP.CYL.RWPA.689.PC.TBSRT (UPC: 043156871025), 4040XP.CYL.RWPA.695.PC.TBSRT (UPC: 043156871032), 4040XP.CYL.RWPA.690.PC.TBSRT, 4040XP.CYL.RWPA.693.PC.TBSRT, 4040XP.CYL.RWPA.696.PC.TBSRT, 4040XP.CYL.RWPA.691.PC.TBSRT

Brand

Finishes

693 Black (Powder Coated), 689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated)

Templating (Hole Pattern)

2-1/4" x 5"

Usage

Heavy Duty

Body Construction

Cast Iron Body

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Spring Size

Adjustable Spring Size 1-6

Fluid

All Weather Liquid X Fluid

Door Application

Hollow Metal or Wood

Handing

Non-Handed

Certifications

Tested and certified under ANSI/BHMA A156.4 Grade 1

Fire-Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Cover

Full Cover

Fasteners

Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts

Warranty

30 Years

Buy American Act Compliance

Meets Buy American Act - Made in USA

LCN4040XP4041DATRI-PACKInstallationInstructions013852 How to Install Von Duprin 98/99 Rim Exit Device
