LCN

LCN 4011 Regular Arm Door Closer, Pull Side Mount

$411.54
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade 1 certified
  • Adjustable spring size 1-5
  • Hinge side/pull side mount

Available Options:

Clear

Product Overview

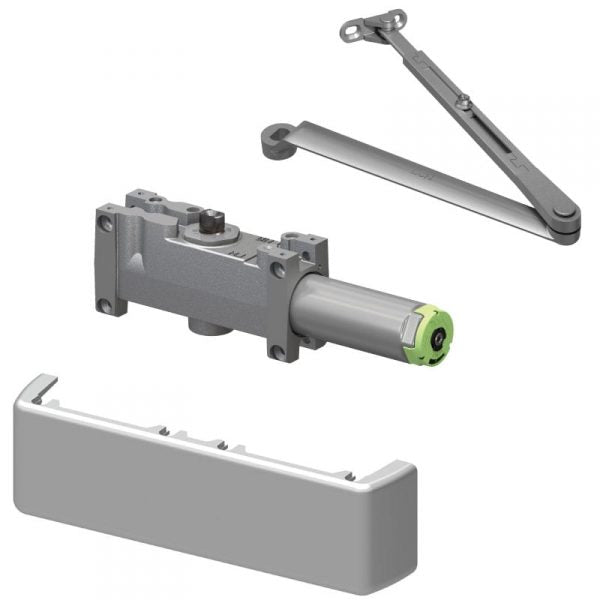

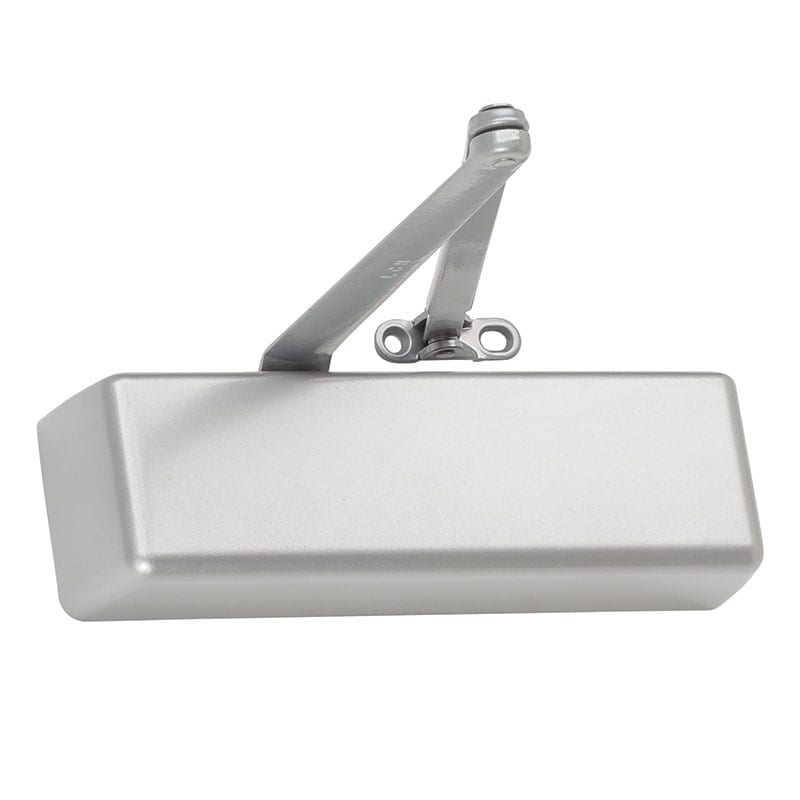

LCN 4011-REG Door Closer with Regular Arm, Pull Side Mount

The 4010 Series are heavy-duty closers that meet demands for high-traffic installations and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards, and boast 30-year warranties. They feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.

  • Designed for high traffic institutional applications
  • Adjustable Spring Size 1-5, includes Patented Green Dial
  • For interior doors to 4'6" wide and exterior doors to 3'6" wide
  • Peel-n-Stick templates - 2-1/2" x 6" Mounting Hole Pattern

Brand

Finishes

689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 693 Black (Powder Coated)

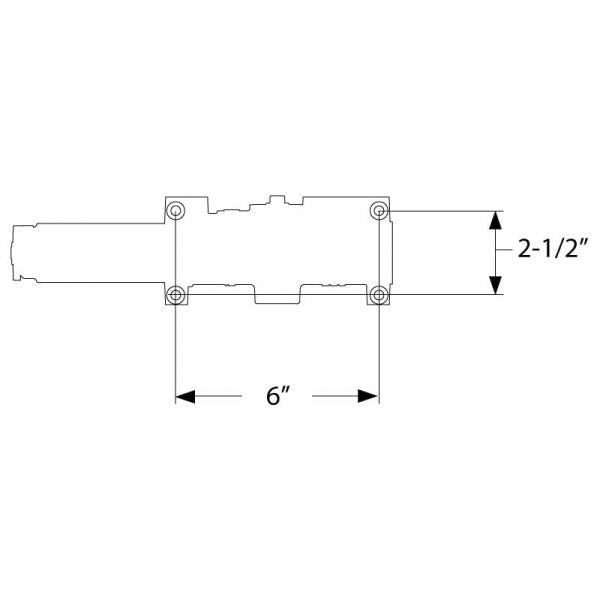

Templating (Hole Pattern)

2-1/2" x 6"

Usage

Heavy Duty

Body Construction

Cast Iron Body

Mounting Options

Regular (Pull Side)

Spring Size

Adjustable Spring Size 1-5

Fluid

All Weather Liquid X Fluid

Door Application

Hollow Metal or Wood

Handing

Handed - LH, RH

Certifications

Tested and certified under ANSI Standard A156.4 - Grade-1

Fire-Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Cover

Full Cover

Fasteners

Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts

Warranty

30 Years

Buy American Act Compliance

Meets Buy American Act - Made in USA

LCN4010SeriesInstallationInstructions How to Install Von Duprin 98/99 Rim Exit Device
