LCN

LCN 1461 Rw/PA Door Closer

$276.70
Usually Ships:  Same Day
  • ANSI/BHMA A156.4 Grade 1 Certified, Made in USA
  • Cast iron body, fully adjustable (sizes 1-6)
  • Regular, top jamb, or parallel arm mount

Available Options:

Clear

Product Overview

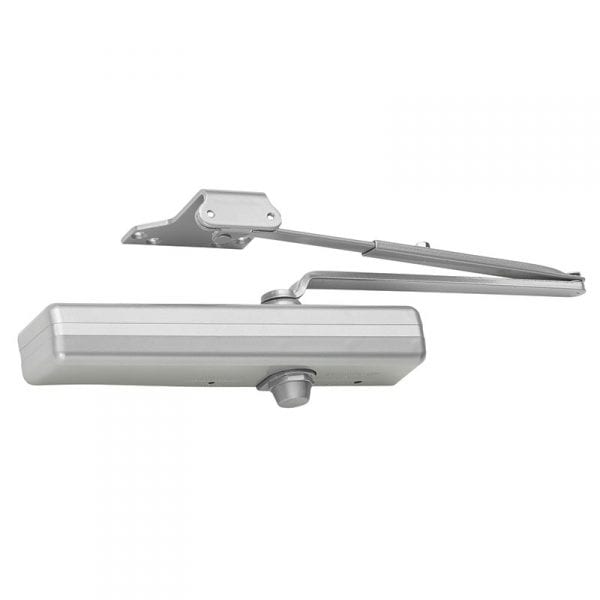

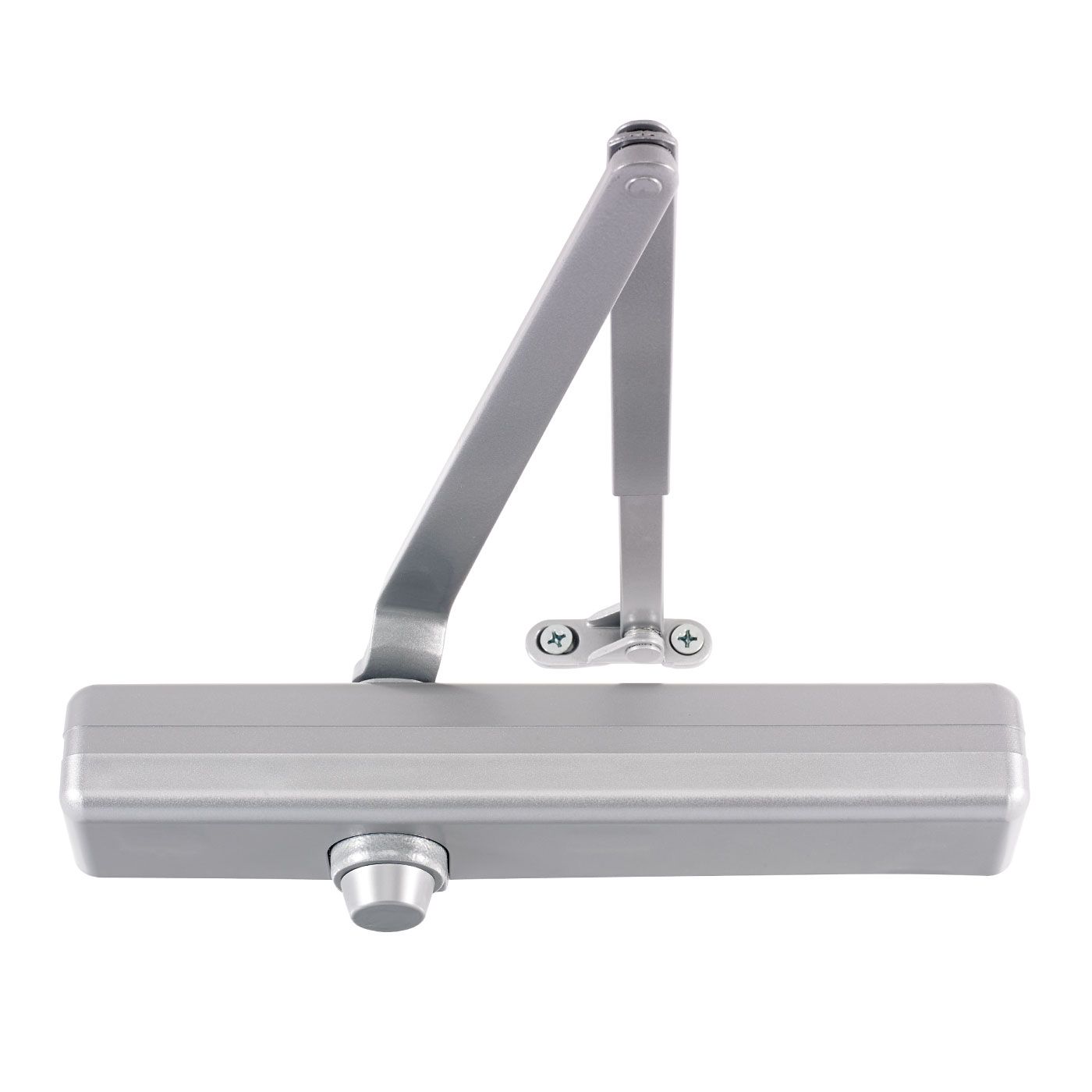

LCN 1461 RWPA Door Closer, Cast Iron Body, Regular Arm with Parallel Bracket

The 1460 Series is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements. It installs quickly, accurately and offers a variety of options. It is cUL and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. LCN peel-n-stick templates ensure quick and accurate installation, and the patented LCN Green Dial takes the guesswork out of spring force adjustments.

Body construction

  • Cast iron cylinder with full-complement bearing
  • 1-1/4" diameter piston
  • Heat-treated steel pinion journal

Quality and durability

  • All-weather fluid
  • LCN Patented Green Dial spring force indicator
  • 30-year warranty

Installation

  • Universal non-handed
  • Standard slimline cover, optional full cover

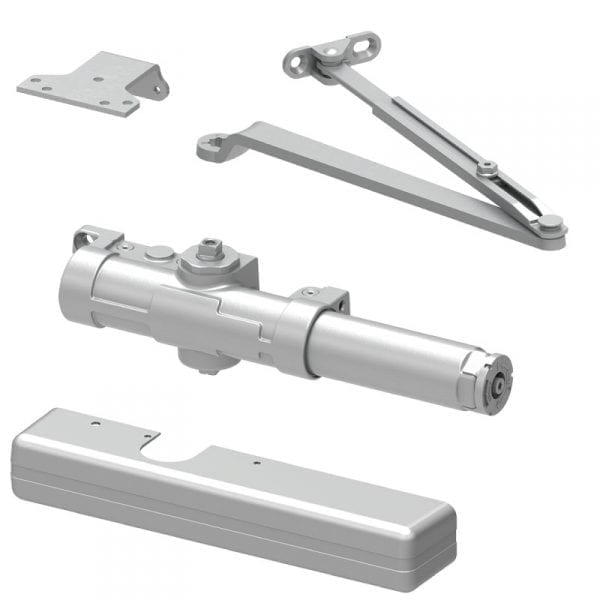

  • Tri-packed - Regular arm with parallel arm shoe (regular, top jamb, or parallel mount)
  • Peel-n-stick template and standard slim line plastic cover
  • Non-sized (1-6) cylinder is adjustable for interior doors to 5'0" and exterior doors to 4'0"

Finishes:

  • AL, BHMA 689 – Aluminum
  • DKBRZ, BHMA 695 - Dark Bronze
  • BLK, BHMA 693 - Black
  • BRASS, BHMA 696 - Brass
  • LTBRZ, BHMA 691 - Light Bronze

Models: 1461.CYL.RWPA.689.SLIMPC.TBSRT (UPC: 043156871001), 1461.CYL.RWPA.689.FPC.TBSRT, 1461.CYL.RWPA.695.SLIMPC.TBSRT (UPC: 043156871018), 1461.CYL.RWPA.695.FPC.TBSRT, 1461.CYL.RWPA.693.SLIMPC.TBSRT, 1461.CYL.RWPA.693.FPC.TBSRT 1461.CYL.RWPA.696.SLIMPC.TBSRT, 1461.CYL.RWPA.696.FPC.TBSRT, 1461.CYL.RWPA.691.SLIMPC.TBSRT, 1461.CYL.RWPA.691.FPC.TBSRT

Brand

Finishes

693 Black (Powder Coated), 689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated)

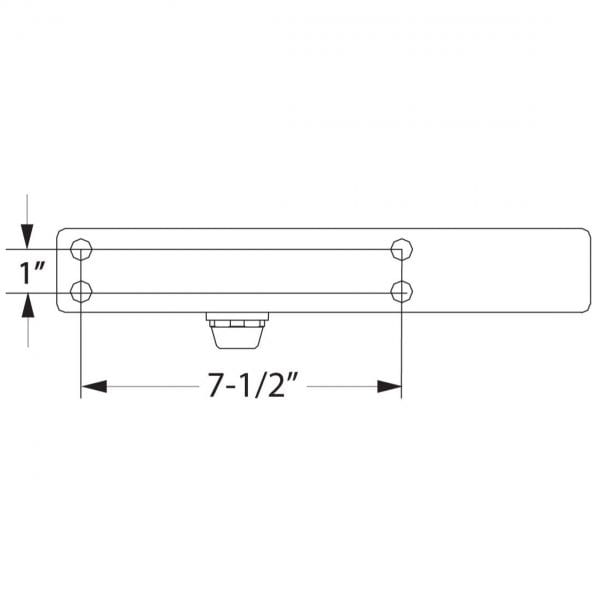

Templating (Hole Pattern)

1" x 7-1/2"

Usage

Medium Duty

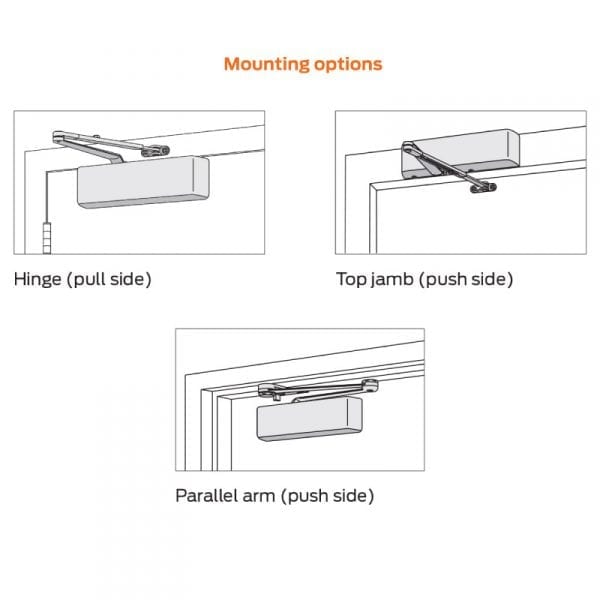

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Fluid

All Weather Fluid

Handing

Non-Handed

Door Application

Hollow Metal, Wood or Aluminum

Certifications

Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)

Cover

Slim Cover Standard (Full Cover Optional)

Fasteners

Self Reaming and Tapping Screws (SRT)

Warranty

30 Years

Buy American Act Compliance

Meets Buy American Act - Made in USA
