Ives

Ives FB358 Manual Flush Bolt for Wood Doors

$30.98
Usually Ships:  1-2 Business Days
  • Bolt throw is 3/4" with a 7/8" vertical adjustment
  • UL Listed up to 90 minutes (fire-rated)
  • 1 ea. per box (add 2 for a pair)

Available Options:

Clear

Product Overview

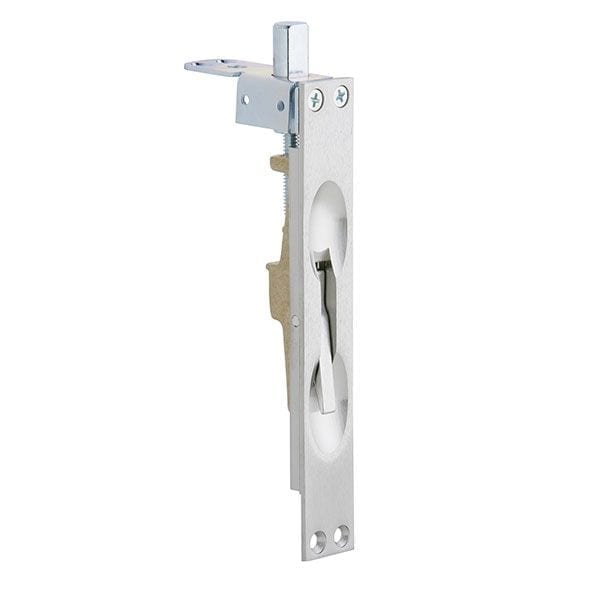

Ives FB358 Flush Bolt, For Wood Doors

Flush bolts are used to secure the inactive leaf, so the active door can lock into it. Flush bolts are installed in the top and bottom edges of the door. When flipped, the top bolt projects into the frame head. The bottom bolt projects into the floor or threshold.

  • Reduces installation costs; requires only simple router mortise at top and bottom corners of doors
  • Door strength and rigidity maintained by tying door faces to reinforcing extensions on guide with machine screws and bearing washers, not supplied
  • Non-handed
  • Bolt tip 1/2" diameter
  • Bolt throw is 3/4" with a 7/8" vertical adjustment
  • Bolt backset is 3/4"
  • Not available for rabbeted door installations

Certifications

  • Meets ANSI A156.16, L04261
  • UL Listed 90 Minute fire doors 8’0" X 10’0". Fire-rated openings require top and botom bolt.
Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 612 Satin Bronze, 613 Oil Rubbed Bronze, 643e Aged Bronze, 619 Satin Nickel, BLK Black

ANSI/BHMA Standard

Meets ANSI A156.16, L04261

Fire-Rating

UL Listed 3 Hour fire doors 8’0" X 10’0". Fire rated openings require top and bottom bolt.

Guide Size

1" Wide x 2-1/2" Long x 5/64" Thick

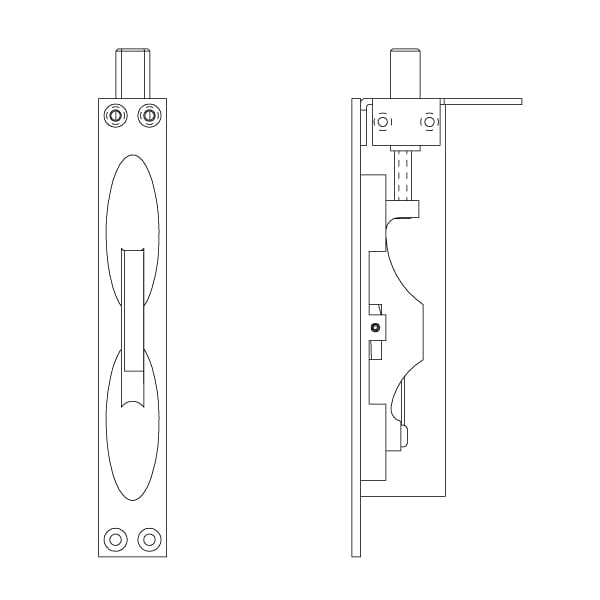

Body Size

1″ Wide x 6-3/4″ Long x 1-1/8″ Deep

Strike Size

15/16″ Wide x 2-1/4″ Long x 5/64″ Thick

Handing

Non-Handed
