Ives

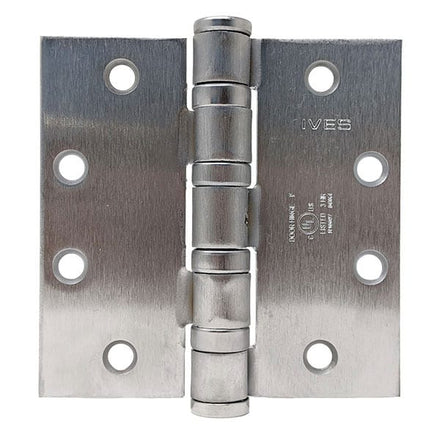

Ives 5BB1-HW 4.5" x 4.5" Heavy Weight NRP Ball Bearing Hinge (Non-Removable Pin)

$30.37
Usually Ships:  1-2 Business Days
  • For heavyweight doors, high-frequency usage
  • NRP (Non-Removable Pin)
  • 4 ball bearings

Available Options:

Clear

Product Overview

Ives 5BB HW 4-1/2" x 4-1/2" Five Knuckle Full Mortise Heavyweight Ball Bearing Hinges, Non-Removable Pin

Non-Removable Pin also known as security hinges are used with outswinging doors with locking hardware. Typically found on exterior doors that swing outward. A set screw in the barrel prevents the removal of the hinge pin.

Ives offers a variety of architectural hinges that will cover any need commercial application while also exceeding code requirements. With tested durability and consistent superior performance, Ives architectural hinges get the job done.

  • Recommended for heavier weight doors (>150 lbs)ƒ
  • Recommended for high-frequency usage (400 cycles per day) ƒ
  • Made with four ball bearing assembliesƒ
  • Recommended for use with a door closerƒ
  • Packed with fasteners for hollow metal and wood doors
  • UL Classified for windstorm rated assemblies - R37965
Brand

Finishes

646 Satin Nickel, 639 Satin Bronze, 630 Satin Stainless Steel, 651 Bright Chrome, USP Prime Coat, 613 Oil Rubbed Bronze, 633 Satin Brass, F-BLK Flat Black, 652 Satin Chrome, 632 Bright Brass, 695 Dark Bronze (Powder Coated)

Hinge Type

Full Mortise

Size

4.5" x 4.5"

Knuckles

Five

Bearings

Ball Bearing

Gauge

0 .180

Material

1040 steel or 304 series stainless steel

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.1 for performance standards, Meets ANSI/BHMA 156.7 for template hinge dimensions

Usage

Heavy Duty

Fire-Rating

Certified to meet UL standards (3hr)
