Ives

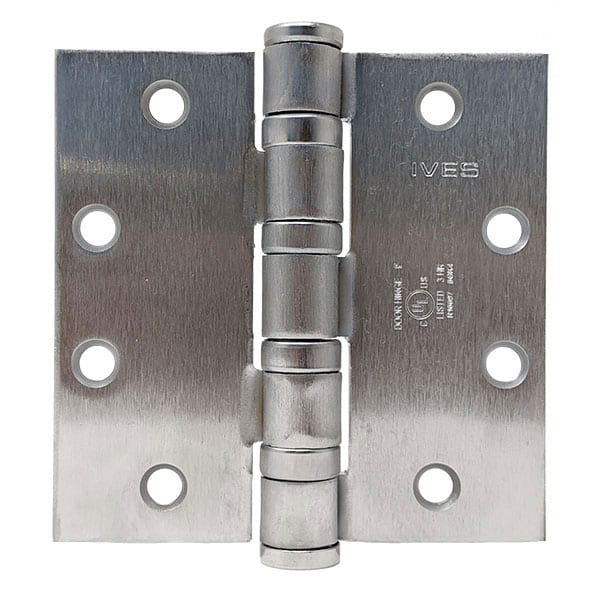

Ives 5BB1-HW 4.5" x 4.5" Heavy Weight Ball Bearing Hinge

$28.89
Usually Ships:  1-2 Business Days
  • For heavyweight doors, high-frequency usage
  • .180 heavyweight, 4 ball bearings
  • Certified to ANSI/BHMA A156.1

Available Options:

Clear

Product Overview

Ives 5BB HW 4-1/2" x 4-1/2" Five Knuckle Full Mortise Heavyweight Ball Bearing Hinges

Ives offers a variety of architectural hinges that will cover any need in commercial applications while also exceeding code requirements. With tested durability and consistent superior performance, Ives architectural hinges get the job done.

  • Recommended for heavier-weight doors (>150 lbs)ƒ
  • Recommended for high-frequency usage (400 cycles per day) ƒ
  • Made with four ball bearing assembliesƒ
  • Recommended for use with a door closerƒ
  • Packed with fasteners for hollow metal and wood doors
  • UL Classified for windstorm-rated assemblies - R37965
Brand

Finishes

630 Satin Stainless Steel, 632 Bright Brass, 633 Satin Brass, 639 Satin Bronze, 640 Oil Rubbed Bronze, 646 Satin Nickel, 651 Bright Chrome, 652 Satin Chrome, 695 Dark Bronze (Powder Coated), F-BLK Flat Black, 629 Bright Stainless Steel

Hinge Type

Full Mortise

Size

4.5" x 4.5"

Knuckles

Five

Bearings

Ball Bearing

Gauge

0 .180

Material

1040 steel or 304 series stainless steel

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.1 for performance standards, Meets ANSI/BHMA 156.7 for template hinge dimensions

Usage

Heavy Duty

Fire-Rating

Certified to meet UL standards (3hr)
