Hager

Hager 5200 Door Closer x Hold Open Arm (HO)

$201.24
Usually Ships:  3-5 Business Days
  • BHMA/ANSI Certified Grade-1
  • Includes 5910 friction hold open arm
  • Regular, top jamb, and parallel arm installations

Available Options:

Clear

Product Overview

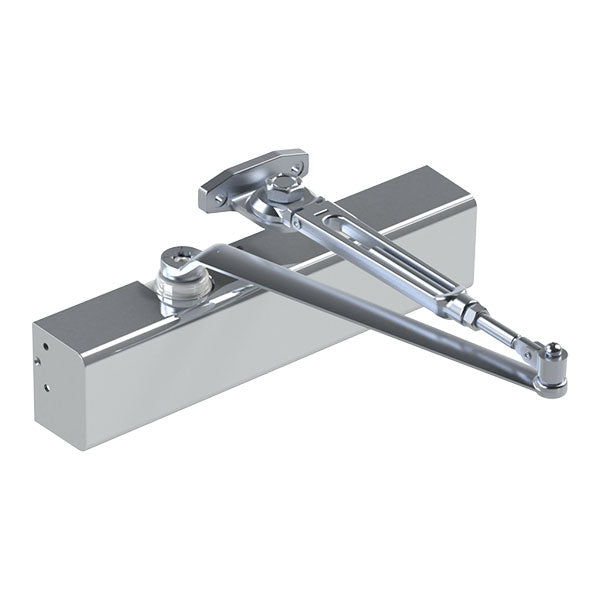

Hager 5200 Series Door Closer x 5910 Hold Open Arm (HO), Multi-Mount, Size 1-6 Adjustable

5200 Series Closers are engineered and designed to offer the ideal combination of appearance and reliability. The 5200 Series Closers are constructed of aluminum alloy to be installed on exterior and interior doors. They are designed and engineered for reliability and superior performance.

  • Includes 5910 hold open arm
  • MLT (Multi-Mount) - Regular, parallel-arm, and top jamb mount
  • Standard, separate and independent, latch, sweep and backcheck valves
  • Ideal for schools, hospitals, and other high-use environments
  • Ideal choice for doors with a maximum weight of 250 lbs
  • To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball-bearing hinges with this product
Brand

Finishes

DBZ Sprayed Dark Bronze, ALM Sprayed Aluminum, BLK Black

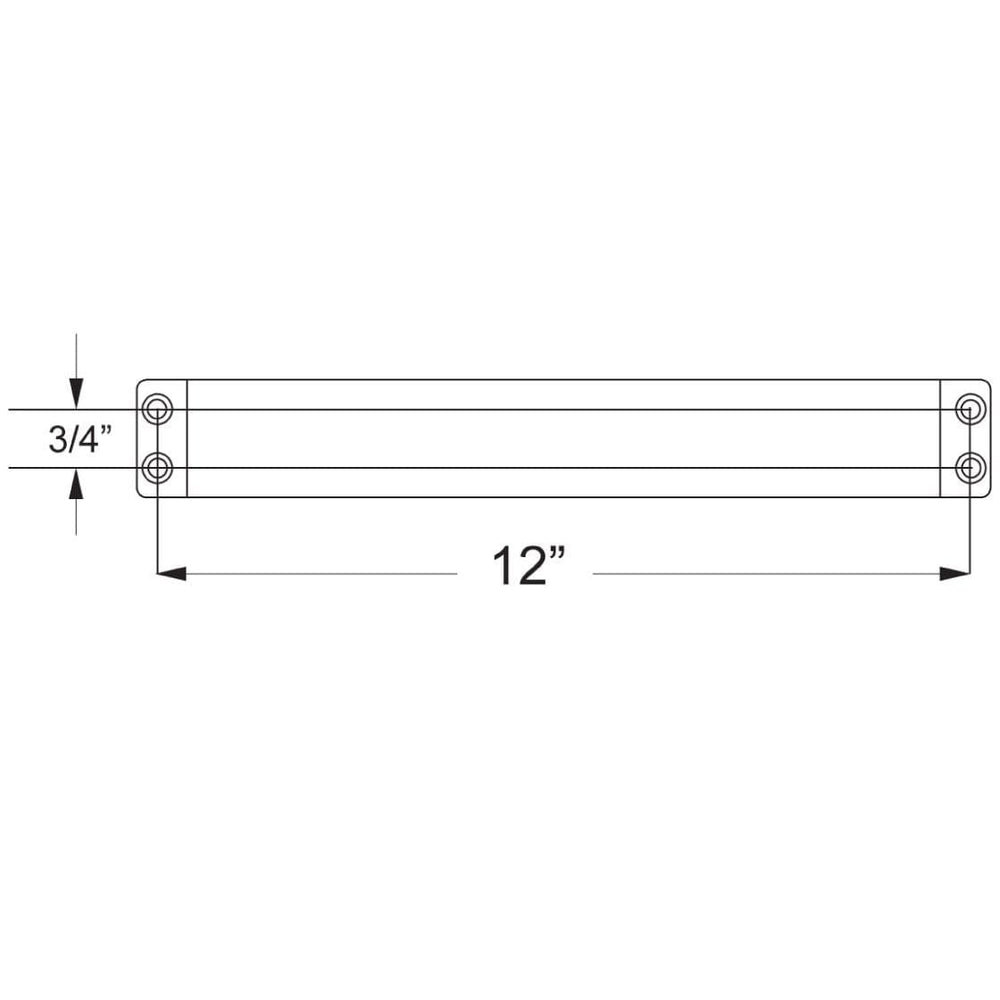

Templating (Hole Pattern)

3/4" x 12"

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Fire-Rating

Non-Rated with Hold Open Arm

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Cover

Full Cover

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Door Applications

Hollow Metal, Wood or Aluminum

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Usage

Medium Duty

Warranty

Limited Lifetime Warranty
