Hager

Hager 5200 Door Closer

$96.84
Usually Ships:  Same Day
  • BHMA/ANSI Certified Grade-1
  • Adjustable spring size 1-6
  • Regular, top jamb, and parallel arm installations

Available Options:

Clear
Added to Cart

Product Overview

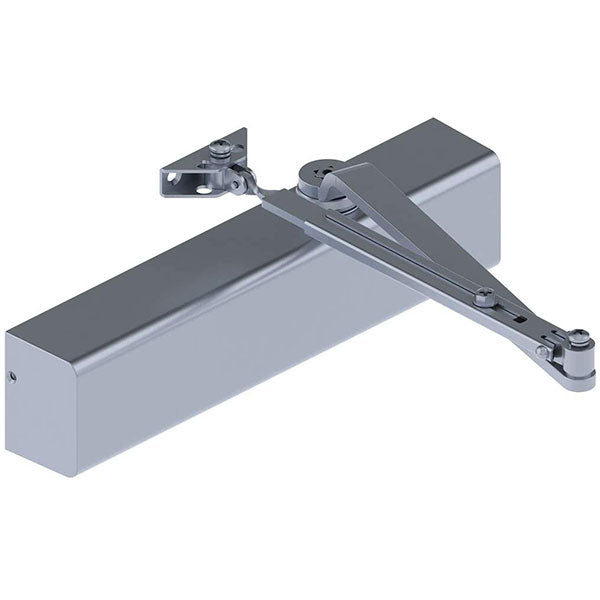

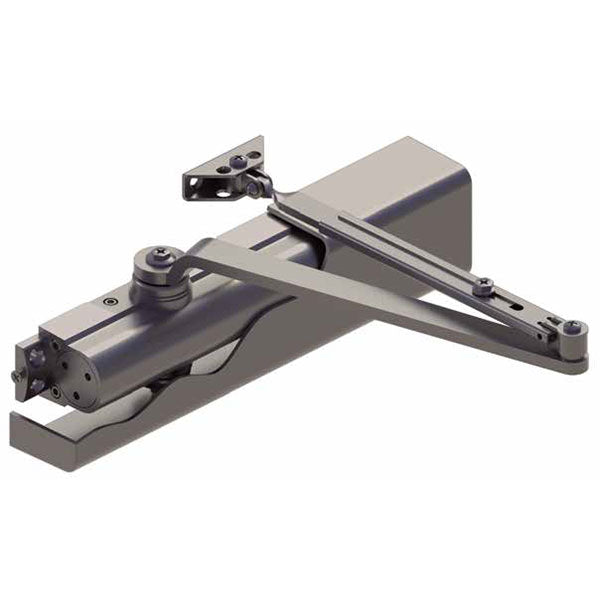

Hager 5200 Series Door Closer, 5200 MLT ADJ 1-6 BF, MLT - Multi-Mount, Size 1-6 Adjustable, Barrier Free

5200 Series Closers are engineered and designed to offer the ideal combination of appearance and reliability. The 5200 Series Closers are constructed of aluminum alloy to be installed on exterior and interior doors. They are designed and engineered for reliability and superior performance.

  • Includes standard 5203 tri-pack arm
  • MLT (Multi-Mount) - Regular, parallel-arm, and top jamb mount
  • Standard, separate and independent, latch, sweep and backcheck valves
  • Ideal for schools, hospitals, and other high-use environments
  • Ideal choice for doors with a maximum weight of 250 lbs
  • To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball-bearing hinges with this product

codes

Brand

Finishes

GOL Sprayed Gold, DBZ Sprayed Dark Bronze, ALM Sprayed Aluminum, BLK Black

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Fire-Rating

UL Listed - UL10c compliant for positive pressure

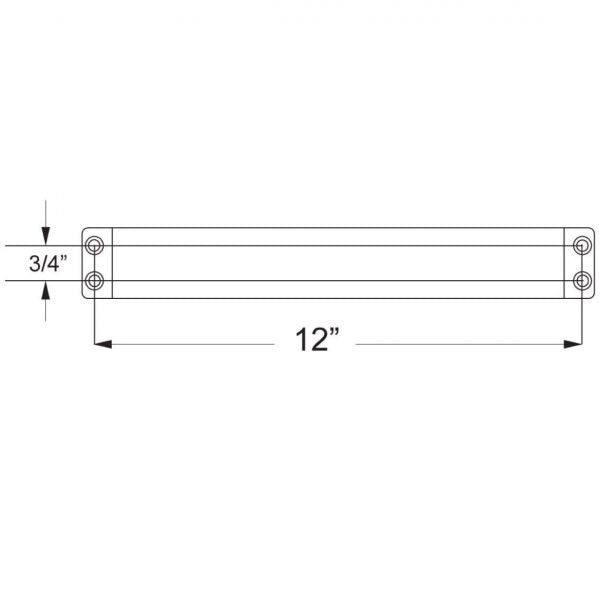

Templating (Hole Pattern)

3/4" x 12"

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Cover

Full Cover

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Door Applications

Hollow Metal, Wood or Aluminum

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Usage

Medium Duty

Warranty

Limited Lifetime Warranty
