Hager

Hager 4501R x 45BE-WTN Panic Rim Exit Device with Blank Escutcheon Passage Lever Trim

$1,154.60
Usually Ships:  3-5 Business Days
  • Heavy-Duty, BHMA/ANSI Certified Grade-1
  • Non-handed for metal and wood doors
  • Includes 45BE lever trim (passage function)

Available Options:

Clear

Product Overview

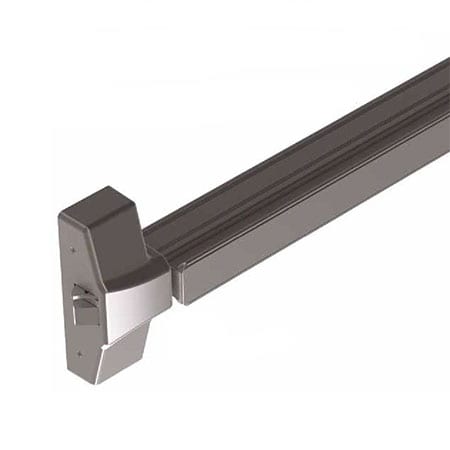

Hager 4500 Series Grade-1 Rim Exit Device x 45BE Blank Escutcheon Lever Trim

Hager 4500 Series Exit Devices are ideal for use in heavy-duty commercial applications including office buildings, medical facilities, schools, and hospitality structures.

The 4500 Series Exit Devices are BHMA certified Grade 1 and meet Life Safety codes and Fire Safety requirements.

  • BHMA Certified Grade 1 and meets life safety codes
  • UL305 Listed for Panic Hardware (F Model UL Listed for Fire Hardware, 3-Hour Rated)

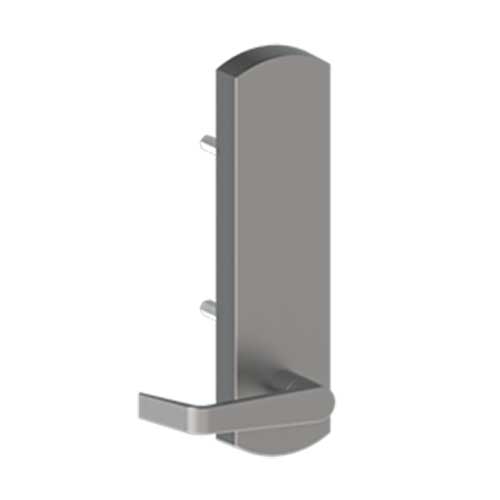

45BE Lever Trim

  • ANSI Function: 14 – Always operable (passage)
  • Lever Design: WTN Withnell
  • Base Size: 10-3/4″ x 2-3/4″
  • Projection: 2-11/16″
Brand

Finishes

US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, BLK Black

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Trim

45BE-WTN

ANSI/BHMA Standard

ANSI/BHMA A156.3-2014 Grade 1

Usage

Heavy Duty

Fire-Rating

4501R - Non-Rated - 4501R-F 3 Hour Fire-Rated

Latchbolt

3/4” throw, pullman type with automatic dead-latching, stainless steel

Strike

Solid stainless steel

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Door Thickness

1-3/4"

Warranty

Limited Lifetime Warranty
