Product Overview

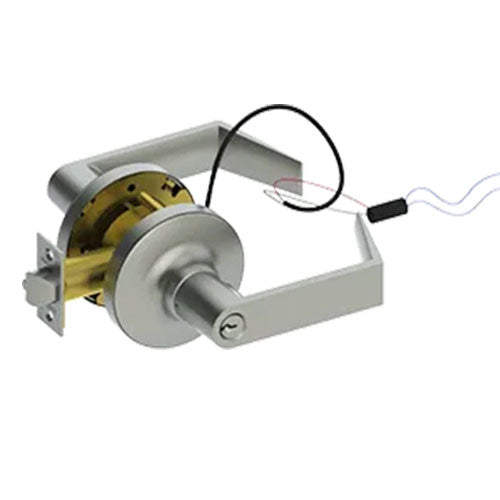

Hager 3480 ELEU Electrified Storeroom Lever Lock, WTH Withnell Lever Design
Hager 3400 Series Grade 1 lock is designed and engineered to withstand the most abusive commercial, industrial, and institutional environments.
Electrified Locking (EL) - Storeroom (F86) or Electrified Unlocking (EU) - Storeroom (F86)

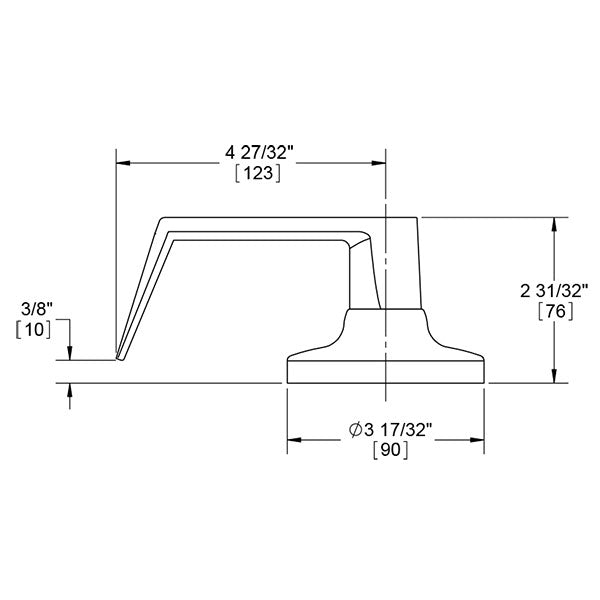

- WTN - Withnell lever design
- Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
- No exposed mounting screws
- 12-24V AC/DC (250mA Max in rush, 10mA Max holding)
- 125 VAC (3 AMP maximum current)
- 30 VDC (2 AMP maximum current)
- Wire leads (22 AG current)
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome |
| Lock Function |
Electrified Storeroom |
| ANSI Grade |
BHMA Certified ANSI A156.2, Series 4000, Grade 1 |
| Usage |
Heavy Duty |
| Cylinder & Keys |
6-pin conventional, keyed different, with 2 keys |
| Keyway |
Schlage C Keyway |
| Latch |
1/2” throw, deadlocking - 1-1/8" x 2-1/4" face |
| Backset |
2-3/4" |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Lever Design |
WTN (Withnell) |
| Handing |
Non-Handed |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire-Rating |
UL/cUL listed up to 3 Hours |
| Door Thickness |
1-3/8" to 1-3/4" |
| Warranty |
One-Year Electrified components, Lifetime on mechanical components |
