Hager

Hager 3450 WTN Entry/Office Lever Lock

$249.92
Usually Ships:  3-5 Business Days
  • Extra Heavy Duty, BHMA/ANSI Certified Grade 1
  • US26D Satin Chrome Finish
  • ADA Compliant, 3 Hour Fire-Rated

Product Overview

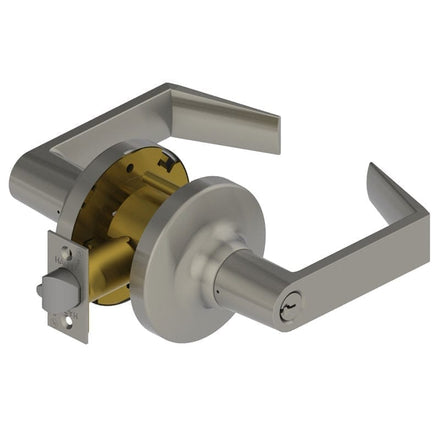

Hager 3450 Entry/Office Lever Lock, WTH Withnell Lever Design, Satin Chrome Finish

Hager 3400 Series Grade 1 lock is designed and engineered to withstand the most abusive commercial, industrial, and institutional environments.

Hager 3450 Entry/Office Function (ANSI F82A) - Deadlocking latchbolt operated by lever from either side except when outside lever is locked by push button on inside lever. When outside lever is locked, operating key in outside lever or operating inside lever unlocks push button. Closing door does not release push button.

  • WTN - Withnell lever design
  • US26D satin chrome finish
  • Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
  • No exposed mounting screws

codes

Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Entry (Entrance), Office

ANSI Grade

BHMA Certified ANSI A156.2, Series 4000, Grade 1

Usage

Heavy Duty

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Lever Design

WTN (Withnell)

Handing

Non-Handed

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours

Door Thickness

1-3/8" to 1-3/4"

Warranty

Limited Lifetime Warranty
