Hager 3450 ARC Entry/Office Lever Lock

$249.92

Usually Ships: 3-5 Business Days

Extra Heavy Duty, BHMA/ANSI Certified Grade 1
US26D Satin Chrome Finish
ADA Compliant, 3 Hour Fire-Rated

Quantity:

Added to Cart

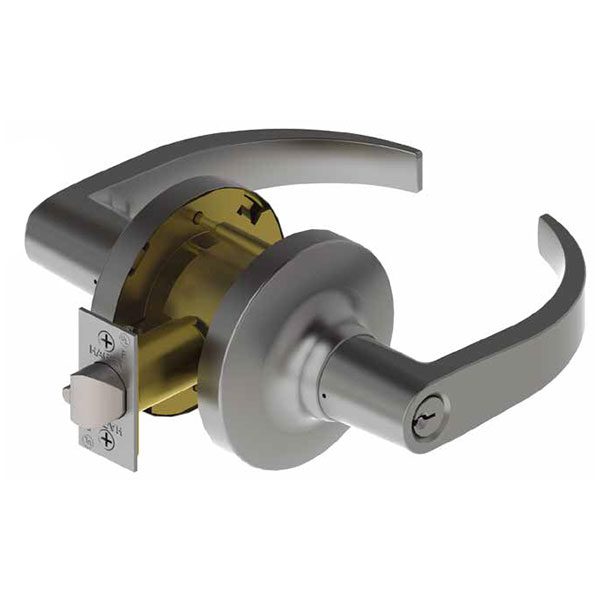

Hager 3450 Entry/Office Lever Lock, ARC Archer Lever Design, Satin Chrome Finish

Hager 3400 Series Grade 1 lock is designed and engineered to withstand the most abusive commercial, industrial, and institutional environments.

Hager 3450 Entry/Office Function (ANSI F82A) - Deadlocking latchbolt operated by lever from either side except when outside lever is locked by push button on inside lever. When outside lever is locked, operating key in outside lever or operating inside lever unlocks push button. Closing door does not release push button.

US26D satin chrome finish
Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
No exposed mounting screws

codes

Brand	Hager
Finishes	US26D (626) Satin Chrome
Lock Function	Entry (Entrance), Office
Lever Design	ARC (Archer)
ANSI Grade	BHMA Certified ANSI A156.2, Series 4000, Grade 1
Usage	Heavy Duty
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
Latch	1/2” throw, deadlocking - 1-1/8" x 2-1/4" face
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing	Non-Handed
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Fire-Rating	UL/cUL listed up to 3 Hours
Door Thickness	1-3/8" to 1-3/4"
Warranty	Limited Lifetime Warranty
