Hager

Hager 3216 Thumbturn x Occupancy Indicator Deadbolt

$46.27
Usually Ships:  3-5 Business Days
  • Ideal for Commercial Restroom Doors
  • Door Bolt Occupancy Indicator x Inside Turn
  • Includes Emergency Release Key

Available Options:

Clear

Product Overview

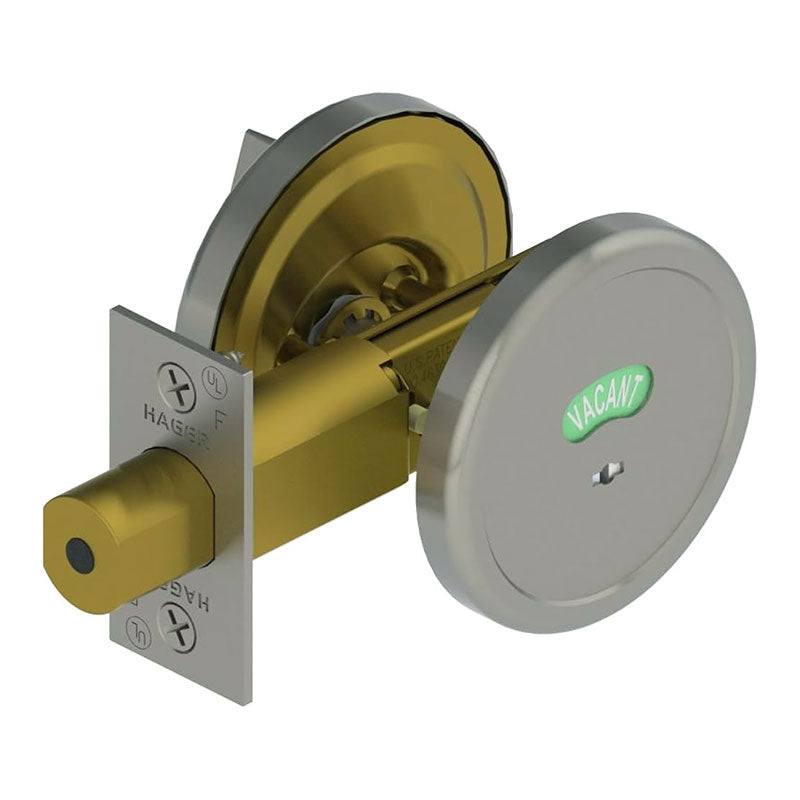

Hager 3216 Thumbturn x Occupancy Indicator Deadbolt

Hager 3200 Series Grade 2 deadlock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. The 3200 Series is an economical alternative to Grade 1 when Grade 1 is not required. It is a perfect complement to the 3500 or 2500 Series for extra protection against break-in and is backed by a lifetime warranty.

Thumbturn x Occupancy Indicator: Deadbolt operated by thumbturn inside, emergency override key outside. Outside indicator displays “In Use” when deadbolt is thrown and “Vacant” when deadbolt is retracted.

Brand

Finishes

US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel, US10B (613) Oil Rubbed Bronze

Deadbolt Type

Indicator

Usage

Medium Duty

ANSI/BHMA Standard

BHMA Certified ANSI A156.5 Grade 2

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/4"

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

UL/cUL Listed for all functions up to 3 hours for "A" label single doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/8" to 1-3/4"

Warranty

Limited Lifetime Warranty
