Product Overview

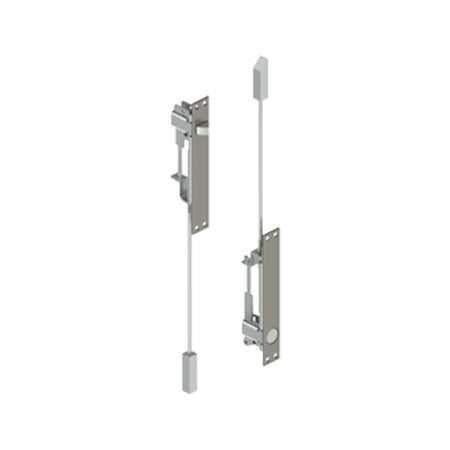

Hager 293D Constant Latching Flush Bolt Pair (2) for Metal Doors, US32D Satin Stainless Steel Finish
- 3-hour fire rating on metal doors up to 4' wide x 9' tall (A, B, C, D, and E label rating)
- 3/4" bolt throw
- 1" x 6-3/4" faceplate
- Eight #8 x 1'' combination screws
- Thermal lock automatically locks inactive door under high fire/heat conditions
- 280X dust proof strike are recommended for use with these sets
- 3-hour fire rating for metal doors up to 4 feet wide x 9 feet tall
- Consists of one 292S and one 293S for two point latching
- Inactive door remains latched until active door is opened, releasing the automatic bottom bolt
- Top bolt can be manually released by pressing plunger
- Inactive door will re-latch automatically when closed
- Non-handed
- Bolt head rods are adjustable
- To only be used with non-beveled doors
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel |
| ANSI/BHMA Standard |
ANSI A156.3 Type #27 |
| Fire-Rating |
3-hour fire rating on metal doors up to 4' wide x 9' tall |
