Product Overview

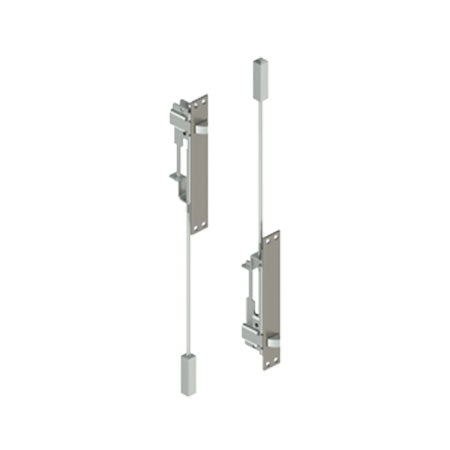

Hager 292D Automatic Flush Bolt Pair (2) for Metal Doors, US32D Satin Stainless Steel Finish
- 3-hour fire rating on metal doors up to 4' wide x 9' tall (A, B, C, D, and E label rating)
- 3/4" bolt throw
- 2" x 6-3/4" faceplate
- Ten #8 x 1'' combination screws
- Thermal lock automatically locks inactive door under high fire/heat conditions
- 280X dust proof strike are recommended for use with these sets
- Used in pairs at top and bottom of inactive door
- Fully automatic- bolts retract when active door is opened; bolts extend when active door is closed
- Non-handed
- Bolt head rods are adjustable
- To only be used with non-beveled doors
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel |
| ANSI/BHMA Standard |
ANSI 156.3 Type 25 |
| Fire-Rating |
3-hour fire rating on metal doors up to 4' wide x 9' tall |
