Global Door Controls THY-11_LFHD Full Surface Continuous Gear Hinge

$220.34
Usually Ships:  2-3 Business Days

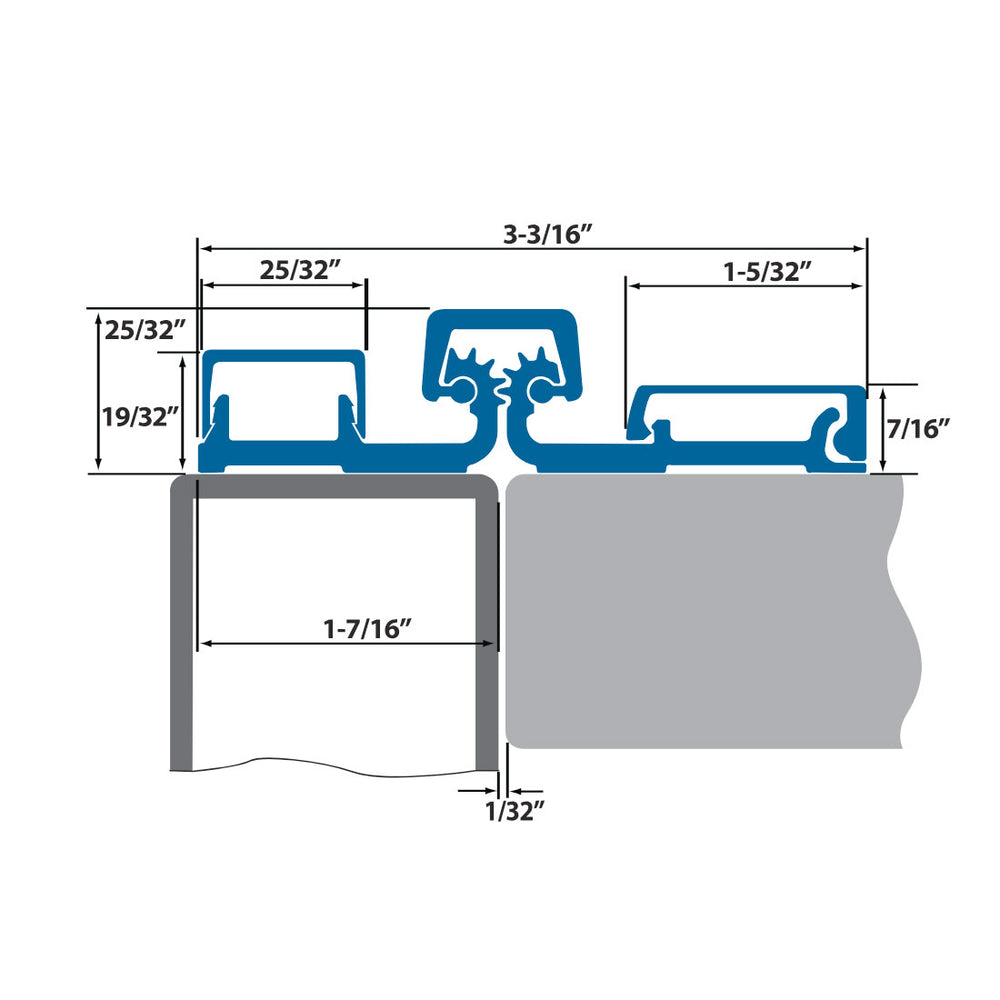

  • Full surface hinge
  • 1/32” clearance between door and frame
  • For narrow (limited) frame applications

Available Options:

Clear

Product Overview

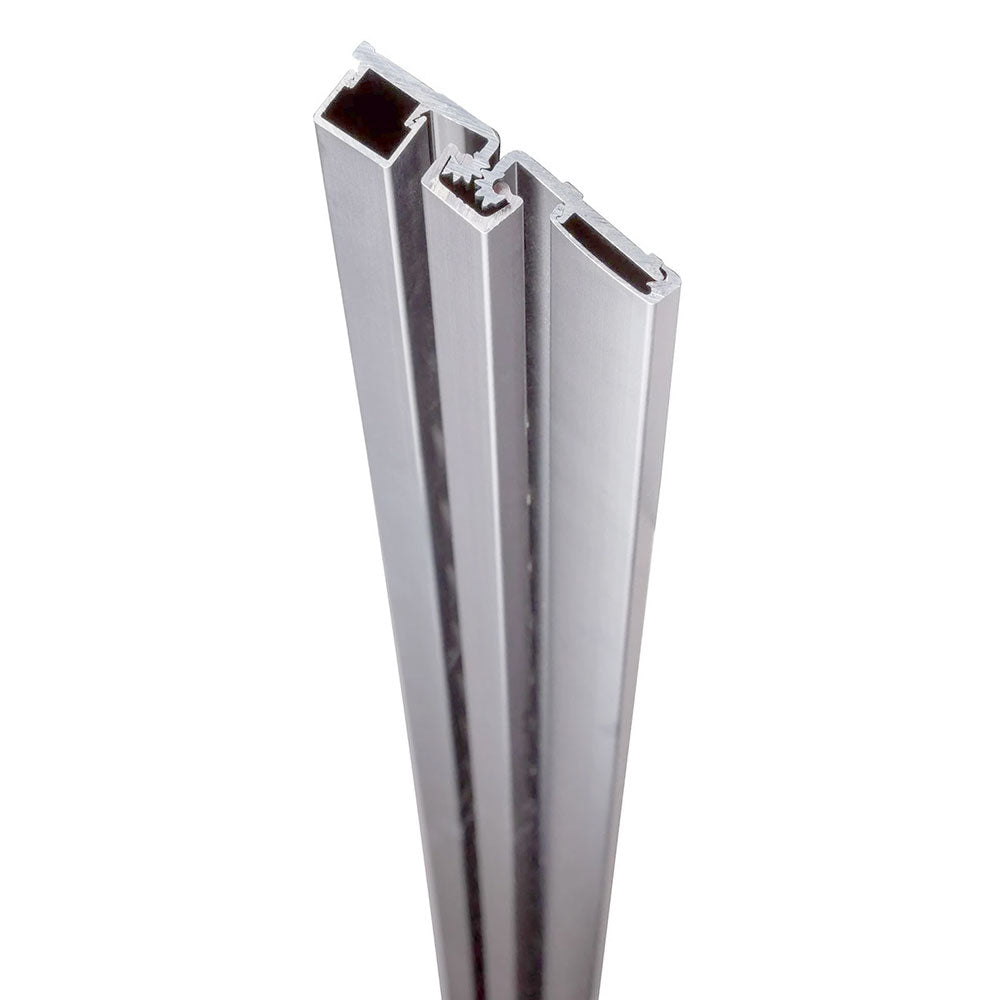

Global Door Controls THY-11_LFHD Full Surface Continuous Gear Hinge, Limited Frame

Full surface continuous hinge - For narrow (limited) frame applications

  • 6063 T6 Aluminum alloy, with interlocking extrusions
  • Tamper resistant removable door leaf cover
  • Non-handed design
  • 83” or *95” length
  • Heavy-duty with 32 thrust-type self-lubricating concealed bearings per hinge
  • High degree of security
  • Anodized aluminum after machining
  • Through bolt and machine screws fixing
  • Templated hole patterns
  • 10-year warranty

*Oversize handling fee applies (added at checkout)

Brand

Length

83" (for 7'0" door), 95" (for 8'0" door)

Finishes

C – Clear Anodized Aluminum, D - Dark Bronze Anodized Aluminum

Usage

Heavy Duty

Continuous Hinge Type

Full Surface

Door Applications

1-3/4″ Thick Doors
