Global Door Controls TC2201 ADA PA COV Door Closer

$77.62
Usually Ships:  2-3 Business Days
  • Grade 1 Certified, ANSI/BHMA A156.4
  • Adjustable Spring Size 1-4
  • Tri-Packed for Regular, Top Jamb, or Parallel Arm Mount

Available Options:

Clear

Product Overview

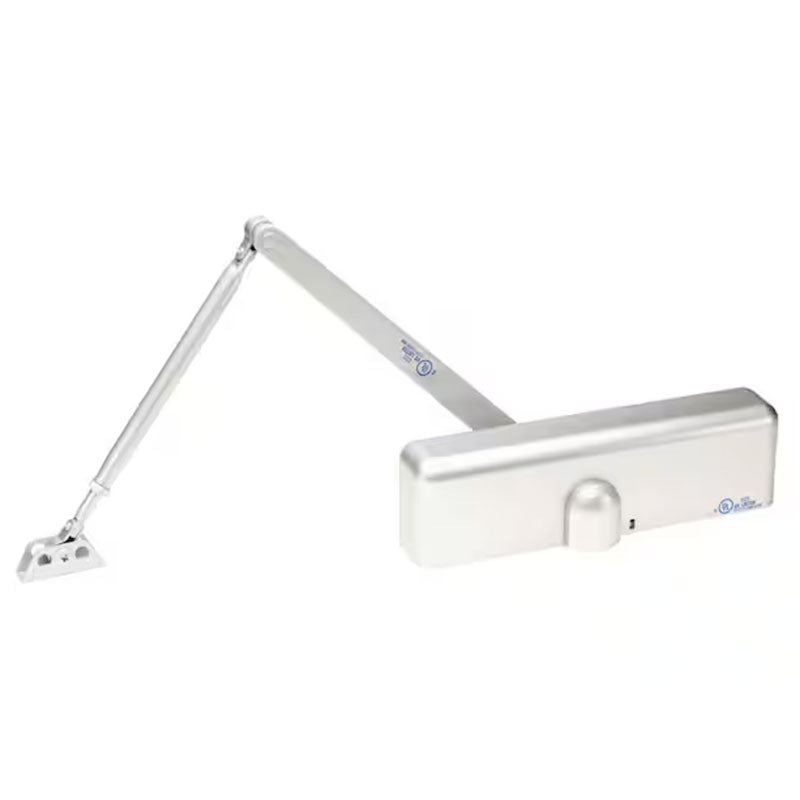

Global Door Controls TC2201ADAPACOV Grade-1 Door Closer, Size 1-4 Adjustable, Cast Aluminum Body, Regular Arm with PA Plate, Full Cover, Through Bolts

The TC2201ADA model is a GRADE 1. It offers adjustable spring power sizes 1- 4 for use on interior doors requiring less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA Grade 1 standard requirements. Both models will retrofit most full size closers with a 9 1/16“ industry standard hole pattern to update any opening for code compliance.

  • TC2201ADA conforms to handicap code requirements and meets ANSI/BHMA A156.4 Grade 1 requirements
  • Two independent valves control sweep and latch closing speeds - backcheck optional

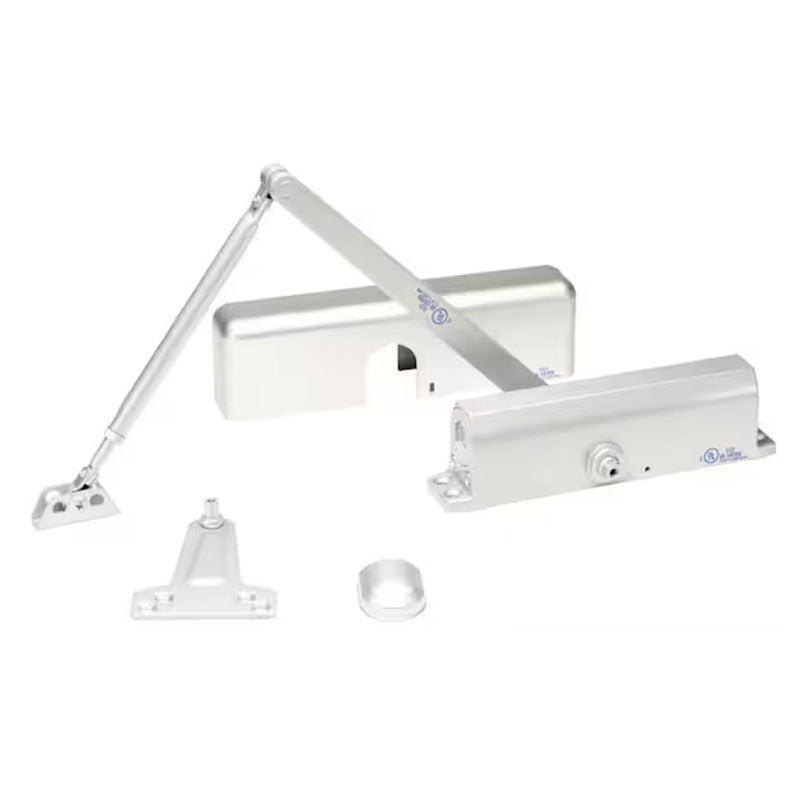

  • Tri-packed
  • Includes cover and through bolts
  • Supplied with both wood and machine screws
  • 5 Year mechanical warranty
Brand

Finish

Aluminum

Usage

Standard Duty

Mounting Options

Regular (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side)

Templating (Hole Pattern)

3/4" x 9-1/16"

Spring Size

Adjustable Spring Size 1-4

Body Construction

Cast Aluminum Body

Cover

Full Cover

Fire-Rating

UL/cUL listed

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
