Global Door Controls THY-11_CFMHD Full Mortise Continuous Gear Hinge

$165.57
Usually Ships:  2-3 Business Days
  • Full mortise hinge
  • 1/4" clearance between door and frame
  • Heavy-duty for high-frequency 1-3/4" doors

Available Options:

Clear

Product Overview

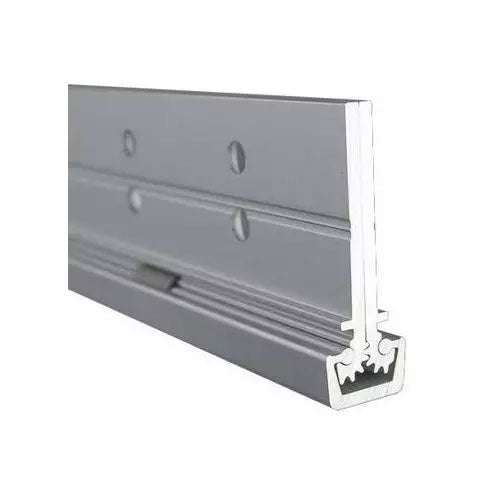

Global Door Controls THY-11_CFMHD Full Mortise Continuous Gear Hinge

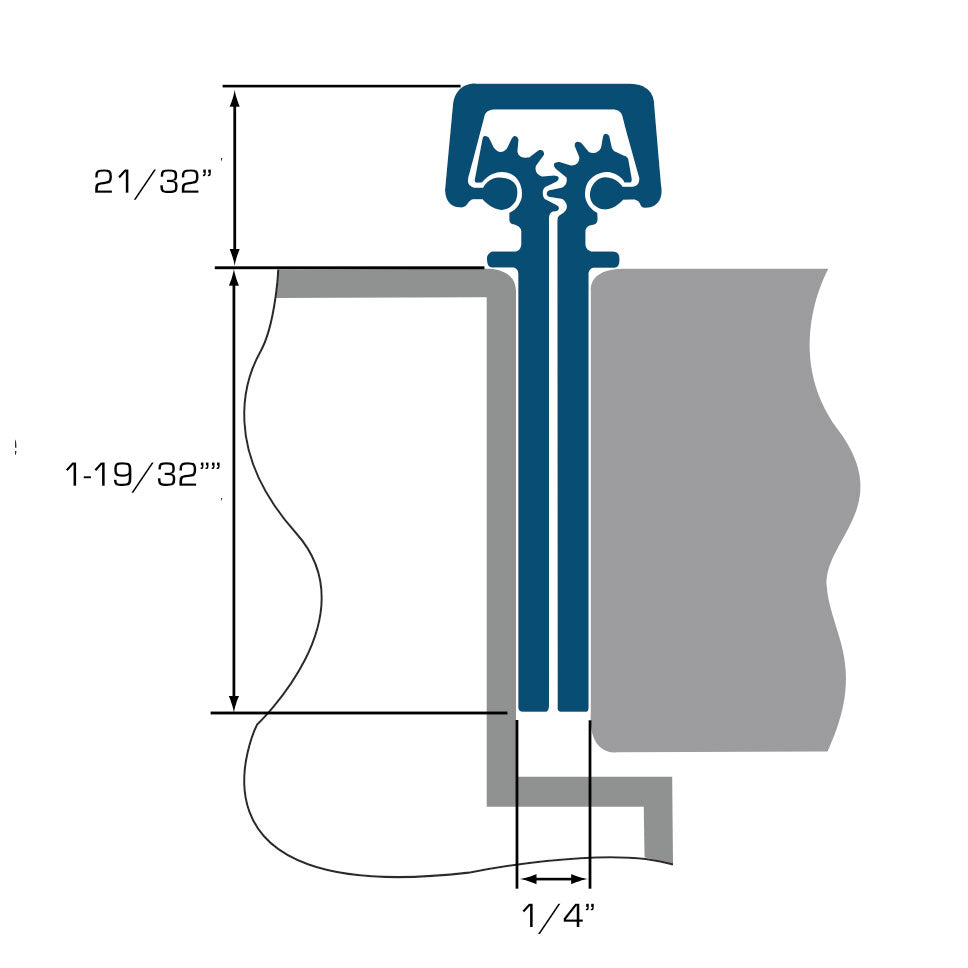

Mortise type - Flush mount - Each hinge leaf has an alignment stop 1/4” clearance between door and frame

  • 6063 T6 Aluminum alloy, with interlocking extrusions
  • Non-handed design
  • 83” or *95” length
  • Heavy-duty with 32 thrust-type self-lubricating concealed bearings per hinge
  • High degree of security
  • Anodized aluminum after machining
  • Through bolt and machine screws fixing
  • Templated hole patterns
  • 10-year warranty

*Oversize handling fee applies (added at checkout)

Brand

Length

83" (for 7'0" door), 95" (for 8'0" door)

Finishes

C – Clear Anodized Aluminum, D - Dark Bronze Anodized Aluminum

Usage

Heavy Duty

Continuous Hinge Type

Full Mortise (Concealed)

Door Applications

1-3/4″ Thick Doors
