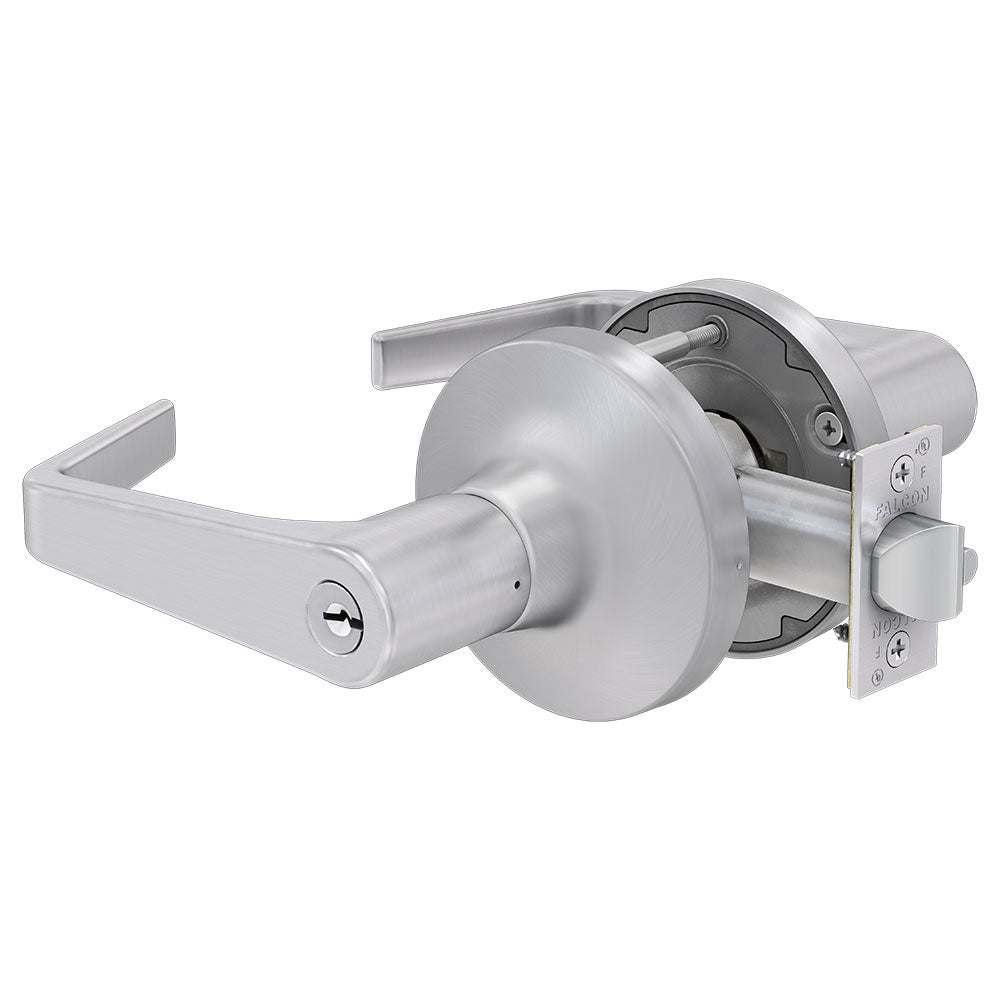

Falcon TM511P6 Extra Heavy-Duty Cylindrical Entry/Office Lever Lock

$288.10
Usually Ships:  5-10 Business Days
  • Certified ANSI/BHMA A156.2, Series 4000, Grade 1
  • ANSI Function F109 - Entry/Office Lock
  • ADA Compliant, 3-Hour Fire-Rated

Available Options:

Clear

Product Overview

Falcon TM511P6 / TM511CP6 Extra Heavy-Duty Grade-1 Entry/Office Cylindrical Lock, Non-keyed, 2-3/4" Backset, ASA Strike

Ideal for commercial and institutional facilities, TM offers a published 2.5 million cycle life, Pressure Release clutching lever protection with free‑wheeling operation under abusive loads (tested to 2,100 in‑lbs), and stainless‑steel latch construction to enhance security and longevity at high‑use openings.

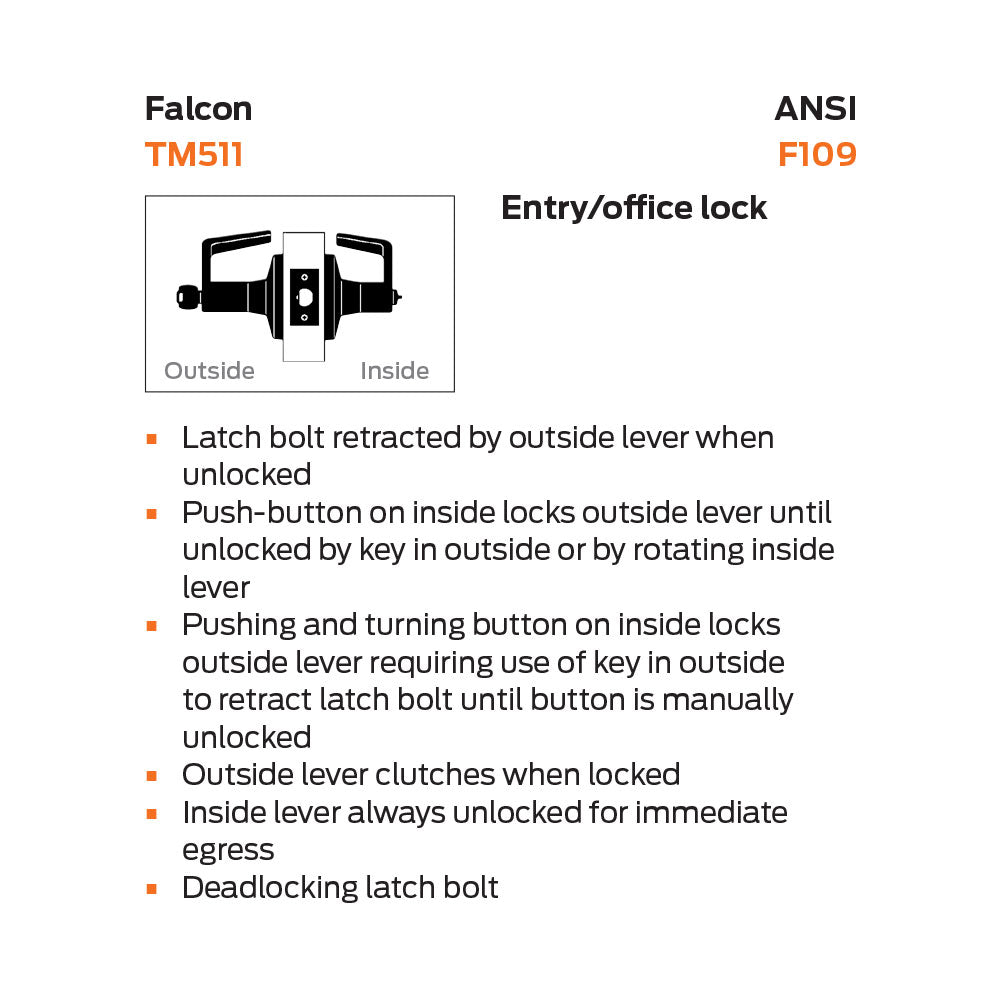

ANSI Function F109 – Latch bolt retracted by outside lever when unlocked. Push‑button on inside locks outside lever until unlocked by key in outside or by rotating inside lever. Pushing and turning button on inside locks outside lever requiring use of key in outside to retract latch bolt until button is manually unlocked. Outside lever clutches when locked. Inside lever always unlocked for immediate egress. Deadlocking latch bolt.

Keyways: P6 - Conventional KIL, Falcon 6‑pin, CP6 - 6‑pin conventional cylinder, Schlage C Keyway

  • Certified ANSI/BHMA A156.2, Series 4000, Grade 1
  • Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
  • UL 10C and CAN/ULC‑S104 listed 3‑hour fire door
  • All levers with a return to door of 1/2" (13 mm) or less comply (Boardwalk, Dane, Longitude and Quantum)
  • Complies with Florida Building Code requirements for hurricanes
  • Meets FF‑H‑106C Series 161
  • Limited warranty, 10 years from date of manufacturer

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze

ANSI/BHMA Standard

Certified ANSI/BHMA A156.2, Series 4000, Grade 1

Usage

Heavy Duty

Lock Function

Entry (Entrance), Office

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway, Falcon G Keyway

Lever Design

DAN (Dane), AVA (Avalon), BRK (Boardwalk), BRW (Broadway), LAT (Latitude), LON (Longitude), QUA (Quantum)

Backset

2-3/4"

Latch

Square corner 1‑1/8" x 2‑1/4" (29 mm x 57 mm) - 1" (25mm) housing diameter, 1/2" (13 mm) throw, restoring spring latch or deadlatch with retained screws; stainless steel

Strike

Standard: ANSI curved lip: 1‑1/4" x 4‑7/8" x 1‑3/16" (32 mm x 124 mm x 30 mm) with retained screws

Door Thickness

Standard (134): Fits doors 1‑3/8" (35 mm) to 1‑3/4" (44 mm) without adjustment

Handing

Non-Handed

Fire-Rating

UL 10C and CAN/ULC‑S104 listed 3‑hour fire door ‑ A label single doors, 4' x 10' and pairs 8' x 10' ‑ Letter F and UL symbol on latch front indicate listing

ADA Compliance

Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

Warranty

Limited warranty, 10 years from date of manufacturer
