Falcon

Falcon SC71A Rw/PA Door Closer

$162.69
Usually Ships:  Same Day
  • Heavy-Duty, ANSI/BHMA Grade 1 certified
  • Adjustable spring size 1-6
  • Tri-Pack: Regular, parallel, or top jamb mount

Available Options:

Clear

Product Overview

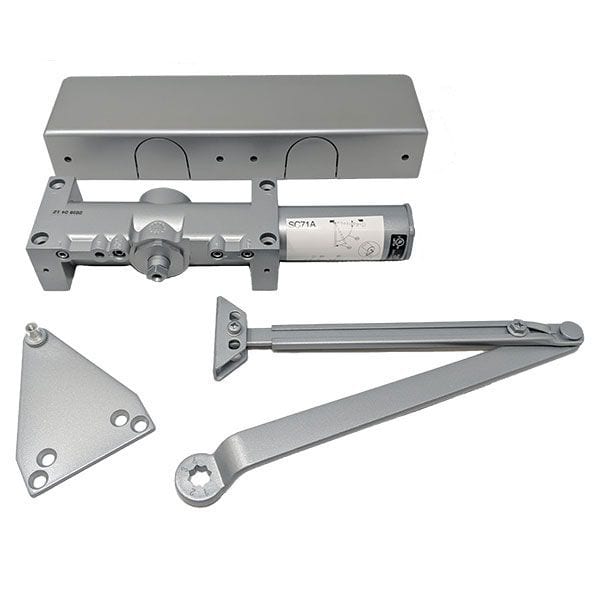

Falcon SC71A RWPA, SC70 Series Grade-1 Door Closer, Regular Arm with PA Bracket, Full Cover

Falcon SC70A Series heavy-duty closers are built for applications that demand reliable door control and easy maintenance. The SC70 Series closers are ANSI Grade-1, ADA compliant, and deliver tough performance at an unbeatable value. Choose the SC71A for interior or exterior doors in retail shops, restaurants, apartments, small offices, and a variety of other high-traffic applications.

Rw/PA – Regular Arm with Parallel Arm Bracket. Includes adjustable forearm assembly to accommodate a variety of door types and frame conditions. Parallel Arm (PA) bracket allows closer to be installed on the ‘push’ side of the door in a parallel arm type configuration.

  • Standard Tri-Pack includes arm and bracket for Regular Pull Side, Top Jamb or Parallel Arm Mounting
  • Single-piece cast aluminum body
  • Separate adjustable general speed, latch speed, and backcheck
  • Common industry hole pattern
  • Comes standard with a universal screw pack, including self reaming and tapping screws
  • Listed ANSI/BHMA A156.4, Grade 1 and meets ANSI A117.1
  • UL listed and compliant to UL10C and UBC 7-2 (1997)





Finishes:

  • AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
  • BR, BHMA 696 – Brass Painted
  • DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)
  • MTBK, BHMA 622 – Matte Black

Models: SC71A-RWPA-AL, SC71A-RWPA-BR, SC71A-RWPA-DKB, SC71A-RWPA-MTBK

Brand

Finishes

696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated), 622 Matte Black

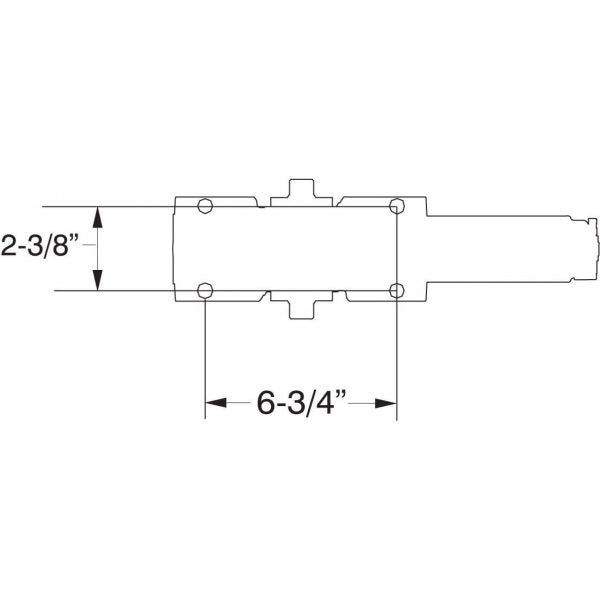

Templating (Hole Pattern)

2-3/8" x 6-3/4"

Usage

Heavy Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Body Construction

Cast Aluminum Body

Cover

Full Cover

Spring Size

Adjustable Spring Size 1-6

Door Applications

Hollow Metal or Wood

Handing

Non-handed for Left or Right Swinging Doors

ANSI/BHMA Standard

Tested and certified under ANSI Standard A156.4 - Grade-1

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)

Warranty

10 Years
