Falcon

Falcon SC71A HDPA Door Closer with Heavy Duty Parallel Arm

$188.39
Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI Grade-1 Certified
  • Includes heavy-duty arm
  • Parallel arm mount only

Available Options:

Clear

Product Overview

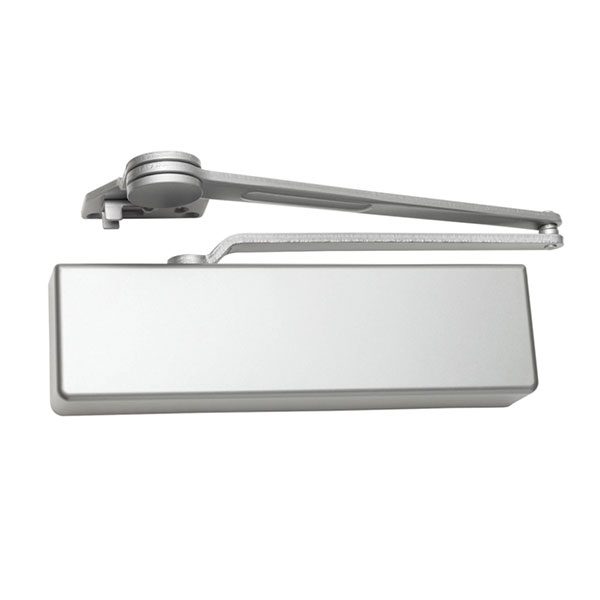

Falcon SC71A HDPA Grade 1 Heavy Duty Surface Door Closer, Heavy Duty Arm, Push Side Parallel Arm Mount, Size 1 to 6, Full Plastic Cover

Falcon SC70 Series heavy-duty closers are built for applications that demand reliable door control and easy maintenance. The SC70 Series closers are ANSI Grade 1, ADA compliant, and deliver tough performance at an unbeatable value. Choose the SC71A for interior or exterior doors in retail shops, restaurants, apartments, small offices, and a variety of other high-traffic applications.

HDPA – Heavy Duty Parallel Arm. Non-handed, stamped, heavy-duty, parallel arm for use in high-traffic applications.

  • Includes SC70A-3077HD arm
  • Separate adjustable general speed, latch speed and backcheck
  • Comes standard with a universal screw pack, including self reaming and tapping screws

Finish:

  • AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
  • BR, BHMA 696 – Brass Painted
  • DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)
  • MTBK, BHMA 622 – Matte Black

Models: SC71A-HDPA-AL, SC71A-HDPA-BR, SC71A-HDPA-DKB, SC71A-HDPA-DKB, SC71A-HDPA-MTBK

Brand

Finishes

695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated), 622 Matte Black, 696 Brass (Powder Coated)

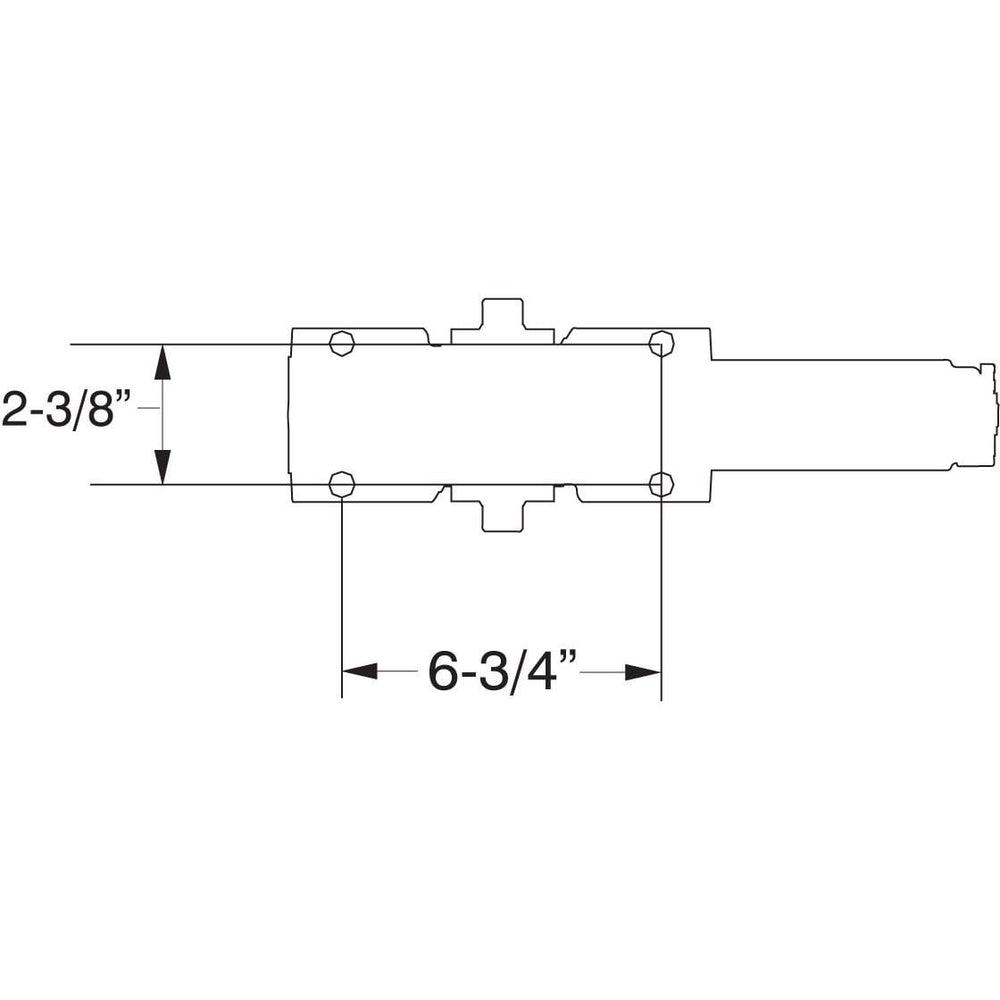

Templating (Hole Pattern)

2-3/8" x 6-3/4"

Mounting Options

Parallel Arm (Push Side)

ANSI/BHMA Standard

Tested and certified under ANSI Standard A156.4 - Grade-1

Usage

Heavy Duty

Fire-Rating

UL and cUL Listed – up to 3 Hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Handing

Non-Handed

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Cover

Full Cover
