Product Overview

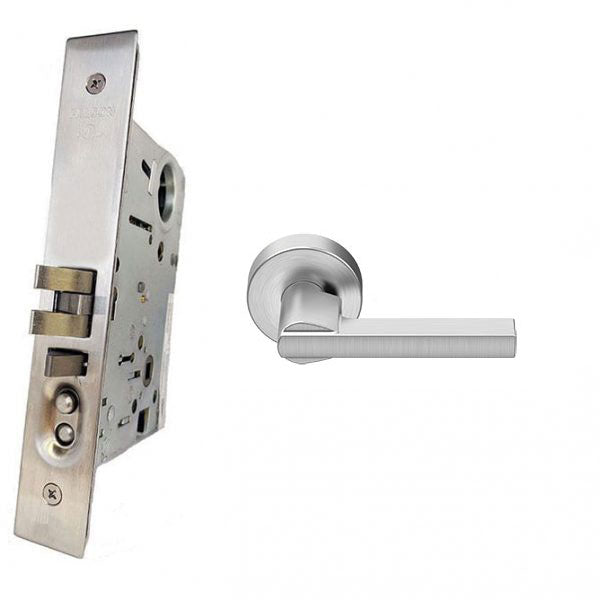

Falcon MA521 LTG Entry/Office Mortise Lock, Latitude Lever, Gala Rose
The MA Series lock delivers high performance at an affordable cost in an office, hospital, education, or other commercial projects. It provides security and is built to stand up to constant use without fail. The MA Series is one of Falcon’s toughest, most dependable locks.

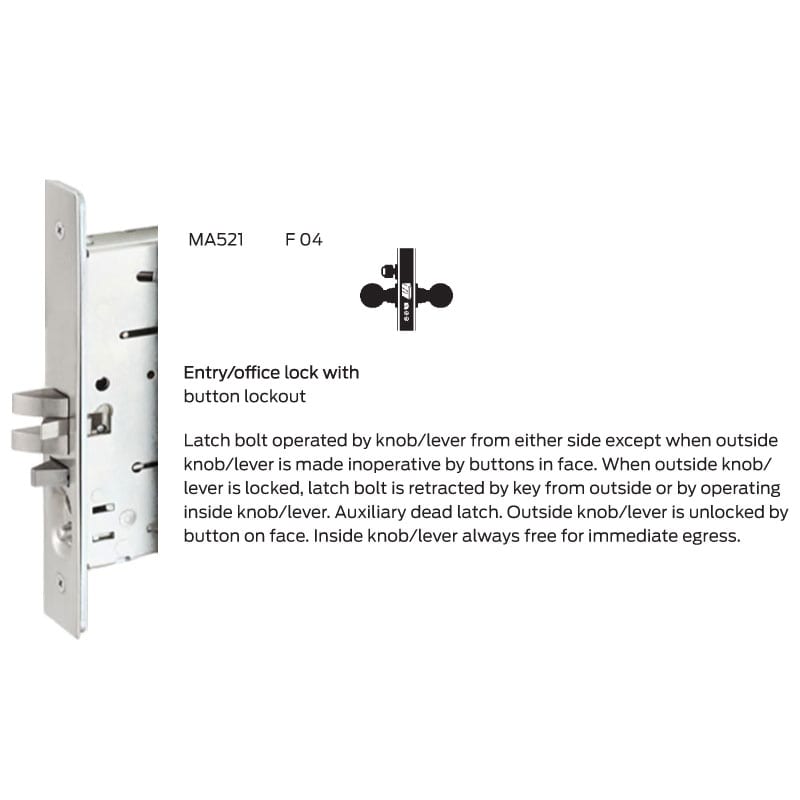

ANSI F04 – Entry/office lock with button lockout: Latch bolt operated by knob/lever from either side except when outside lever is made inoperative by buttons in face. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary deadlatch. Outside lever is unlocked by button on face.
- UL listed and certified Operational Grade 1 and Security Grade
- Cold-formed steel, zinc plated with dichromate for corrosion resistance
- Ability to easily re-hand the lock in the field
- Conventional cylinder or (SFIC) small format interchangeable core housing (less core)
Models: MA521P-LTG-605, MA521CP6-LTG-605, MA521D-LTG-605, MA521L-LTG-605, MA521P-LTG-606, MA521CP6-LTG-606, MA521D-LTG-606, MA521L-LTG-606, MA521P-LTG-613, MA521CP6-LTG-613, MA521D-LTG-613, MA521L-LTG-613, MA521P-LTG-622, MA521CP6-LTG-622, MA521D-LTG-622, MA521L-LTG-622, MA521P-LTG-626, MA521CP6-LTG-626, MA521D-LTG-626, MA521L-LTG-626
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 643e Aged Bronze |
| Cylinder |
985 Mortise Cylinder (Schlage C Keyway), Less Cylinder (no cylinder), 985 Mortise Cylinder (Falcon G Keyway), 987 SFIC Mortise Cylinder Housing (Less Core) |
| Lever Design |
LTG Latitude Gala |
| Lock Function |
Entry (Entrance) |
| ANSI Function |
F04 |
| Usage |
Heavy Duty |
| ANSI Grade |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Fire-Rating |
“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| Handing |
Right hand is standard; Reversible in the field |
| Backset |
2-3/4" |
| Case |
Cold formed steel, zinc dichromate plated, .090” thick |
| Latchbolt |
Two-piece stainless steel, mechanical anti-friction bolt. 3 ⁄ 4 " projection |
| Faceplate |
(armored front) 1 1 ⁄ 4 " x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs |
| Strike |
Meets ANSI AII5.1 for frame preparation. Strike is non-handed |
| Door Thickness |
1-3/4" |
