Product Overview

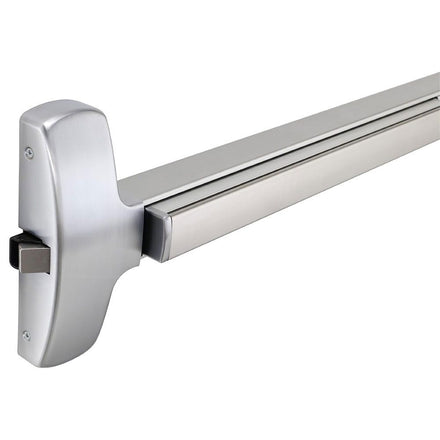

Falcon F-25-R-EO Rim Exit Device, Fire-Rated, Exit Only
The Falcon F-25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design. The Falcon F-25-R Series rim device combines sleek styling and durability with the protection of a fire-rated device.
- EO = Exit Only, ANSI Function 01 (25 Series Outside Trim sold separately)
- For use with single fire doors and double fire doors with a mullion
- Stock Sizes: 3' and 4' - Cut to size in the field
- Deadlocking latchbolt standard
- UL listed fire hardware, A or B label fire-rated (3 Hours)
| Brand | |
|---|---|
| Finishes |
619 Satin Nickel, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel, US28 (628) Anodized Aluminum, US19 Flat Black, US26 (625) Bright Chrome, US3 (605) Bright Brass, 313AN Anodized Dark Bronze, US10 (612) Satin Bronze, US4 (606) Satin Brass |
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
| Usage |
Heavy Duty |
| Fire-Rating |
UL listed A or B label Fire-Rated (3 Hours) |
| Strike |
299F fire-rated roller strike |
| Hand |
Non-handed |
| Latchbolt |
Stainless steel, 3/4" throw - Deadlocking |
| Stile Type |
Wide (Standard) |
| Minimum Stile Width |
4" w/ Standard Roller Strike |
| Dogging Feature |
None |
| Projections |
2-3/4" |
| Fasteners |
All mounting screws are concealed, sheet metal screws and machine screws standard |
| Center Case & Working Parts |
Center case is heavy wrought and sintered metal parts |
| Door Applications |
1-3/4″ Thick Fire-Rated Doors |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
