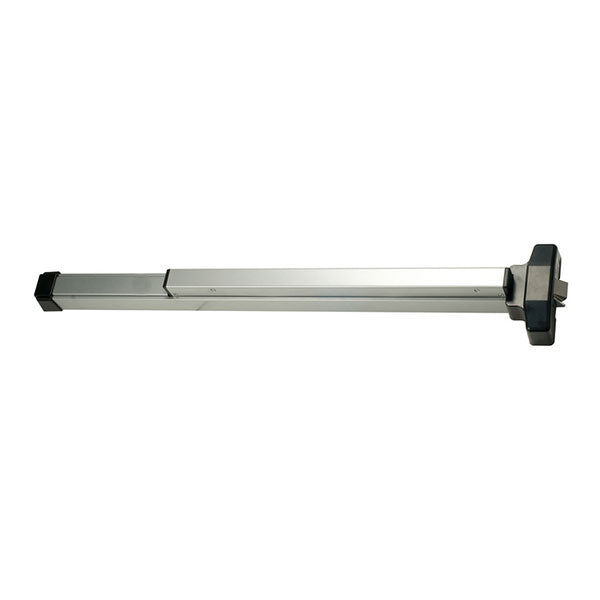

Falcon F-19-R-EO Fire-Rated Rim Exit Device

$421.82
This item ships FREE! Usually Ships:  20-30 Business Days
  • ANSI/BHMA Certified Grade-1
  • Exit Only (outside trim sold separately)
  • Fits door stiles as narrow as 3-1/2"

Available Options:

Clear

Product Overview

Falcon F-19-R-EO Grade 1 Fire Rated Rim Exit Device, Exit Only

This device is non-handed and is listed by UL for B label fire door installations on 4'0" x 7'2" single doors and/or 8'0" x 7'2" double doors with an F–4023 removable mullion or KRF-4023.

  • EO = Exit Only (Outside Trim Sold Separately)
  • UL Rated (Fire-rated) “B” label (1 1⁄2"hr.); 4'0" x 7'2"
  • Centercase and end cap are powder-coated black only
  • Non-handed
Brand

Finishes

US32D (630) Satin Stainless Steel, 695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated)

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Fire-Rating

“B” label (90 Minutes)

Hand

Non-handed

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Medium Duty

Stile Type

Narrow

Stile

3-1/2" Minimum

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

None

Projections

2-1/2" in neutral position, 1-7/8" in dogged position. Pushbar height is 1-3/4"

Strike

F570 Standard

Door Applications

1-3/4″ Thick Fire-Rated Doors
