Falcon

Falcon 511L Dane Vandal Resistant Lever Trim for 25 Series Exit Device

$278.16
Usually Ships:  2-3 Business Days
  • For use with 25 Series Exit Device
  • Key Locks/Unlocks Lever
  • Mortise Cylinder Sold Separately

Available Options:

Clear

Product Overview

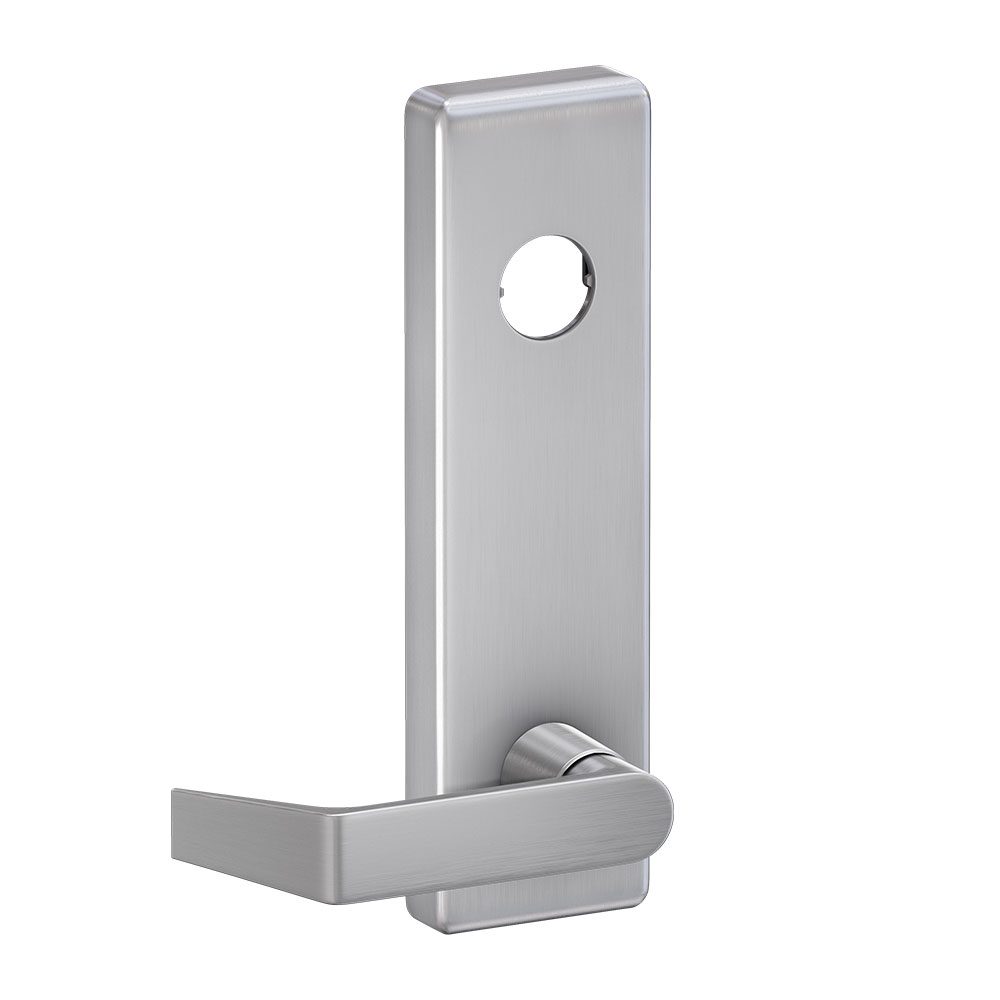

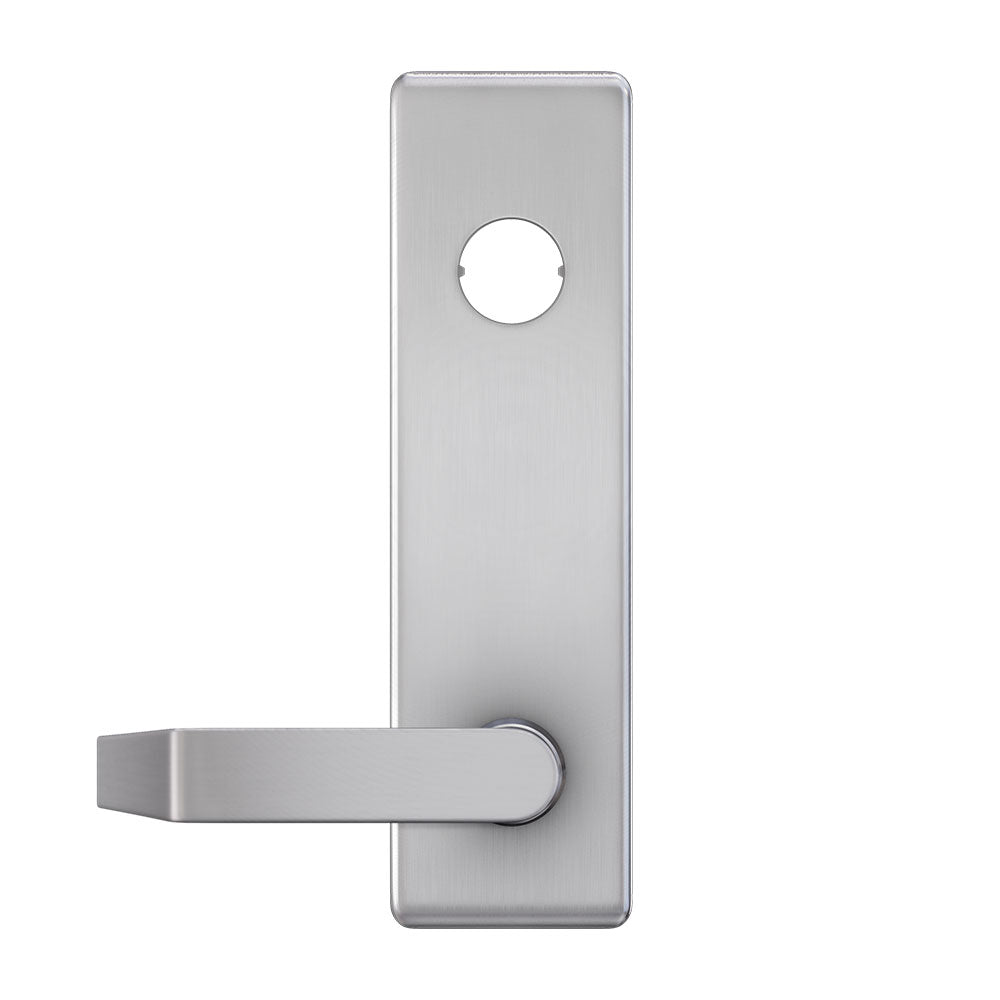

Falcon 511L 25 Series Lever Trim, Classroom Function, Dane Lever Design

Provides resistance to rotation, making damage of trim due to attack from the outside less likely. Designed to operate normally after vandalism attempts without the need for maintenance personnel intervention.

  • Heavy-duty, vandal-resistant, ANSI AI56.3 grade 1 security trim
  • Lever deflects up to 22 ft-lb for a minimum of 10,000 vandal-resistant cycles
  • Vandal resistance is present in both lever rotation directions
  • After lever is fully deflected, lever stops rotating and a shear pin breaks at 70 ft-lb to prevent damage to unit
  • ANSI Function: 08
  • Escutcheon plate size: 2-3/4" x 9-3/4" x 7/8"
  • DANE lever style furnished standard
  • Cylinder must be ordered separately - Requires 1-1/4" mortise cylinder

Brand

Finishes

US26D (626) Satin Chrome, SP313 (695) Dark Bronze, US32D (630) Satin Stainless Steel, US19 Flat Black, US26 (625) Bright Chrome, US3 (605) Bright Brass, US10 (612) Satin Bronze, US4 (606) Satin Brass

Function

Entry / Classroom

Cylinder

1-1/4" Mortise Cylinder (sold separately)

Handing

Supplied RHR - Lever is reversible

Usage

Heavy Duty

Lever Design

D (Dane)

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Buy American Act Compliance

Meets Buy American Act - Made in USA
