Product Overview
Prestained Solid Core Wood Doors for Commercial Applications
Built with traditional solid core construction components, ColledgeGuard Prestained Doors can be adapted to many popular applications. Perfect for light to medium-duty commercial applications where a prefinished surface is desirable. ColledgeGuard Prestained Doors have a color-coordinated pre-painted wood edge.Features
- 1-3/4” Thick, Beveled Edges
- Available with a wide range of glass lites, louvers and hardware preps
- Optional 20-Minute Fire-rating with WHI / ITS metal label applied
- Made from environmentally friendly materials
- Supplied with 5-mil peelcoat protective film
| Construction |
3 Ply Construction - Meets or exceeds industry standards of WDMA I.S.1; |
|---|---|
| Core |
28-30lb particleboard – Meets or exceeds requirements of ANSI A208.1 and CS236-66 |
| Stiles |
Softwood; Width = 1” Nominal, 13/16” Minimum after prefit size |
| Thickness |
1-3/4” Standard |
| Quick Ship Sizes |
Width – 3’0″ : Height – 6’8″ or 7’0″ |
| Non-Stock Sizes |
Up to 4’0″ x 8’0″ (4-8 Week Lead Time) |
| Undercut |
3/4″ Standard |
| Veneers |
2 ply high density fiberboard (HDF) backer wood veneers |
| Finishes |

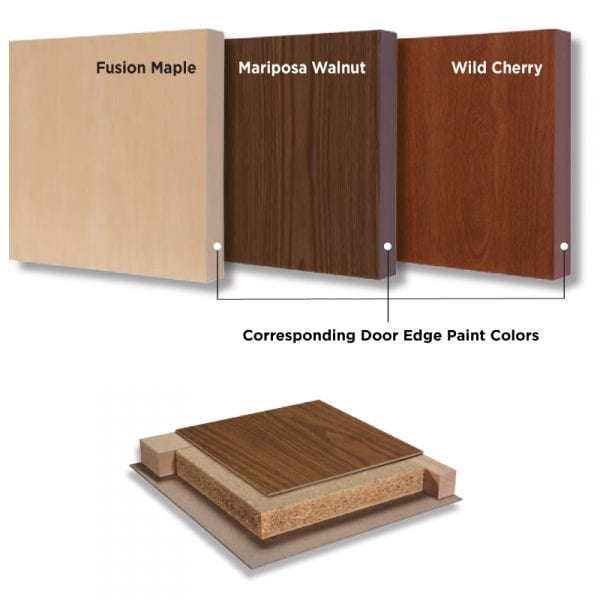

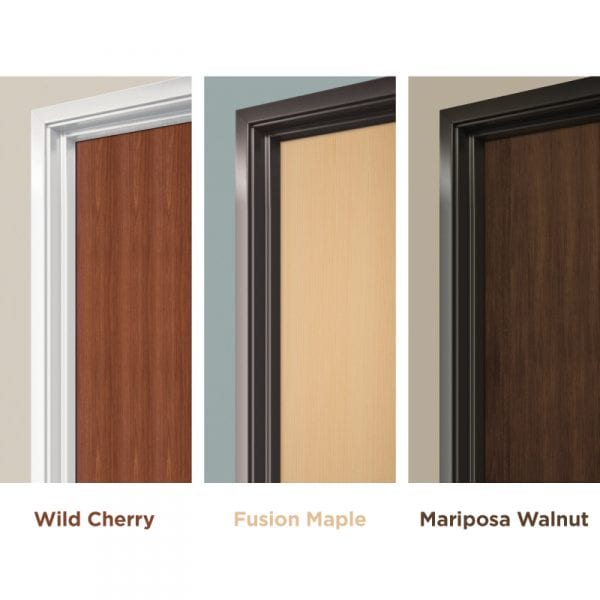

Fusion Maple, Mariposa Walnut, Wild Cherry |
| Standard Preps |
161 (cylindrical lock), 86 Edge (mortise lock), Deadbolt |
| Optional Preps |
Exit Device Trim, Deadbolts, Lite and Louver Cutouts |
| Fire-Rating |
Non-Fire-Rated (Optional 20-Minute Fire Label) |
| Buy American Act Compliance |
Meets Buy American Act – Made in USA |
| Mfg. Hinge/Lock Locations |
Steelcraft, Timely, Western Integrated, Ready-Frame, Mesker, Ceco, Curries, Republic, Baron, DKS, Pioneer, Deansteel, Custom Locations |
