Dormakaba

Dormakaba M1080D Storeroom Mortise Lock with Sectional Trim, LR Lever

$562.05
This item ships FREE! Usually Ships:  2-3 Business Days
  • Extra Heavy-Duty ANSI/BHMA A156.13 Grade-1
  • ANSI Function F07: Storeoom
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

Dormakaba M1080D Mortise Lock with Sectional Lever Trim, Storeroom Function, LR Lever, A or B Rose

The M1000 Series Grade 1 heavy-duty mortise locksets provide exceptional security, enhanced aesthetics, and rugged dependability.

These premium performance locksets are built with a heavy-duty mortise chassis for all applications where ANSI/BHMA A156.13 Grade 1 products are required.

The M1000 Series is ideal for schools and universities, hotels, apartments, hospitals and nursing homes, churches, municipal buildings, airports, retail complexes, offices and warehouse applications.

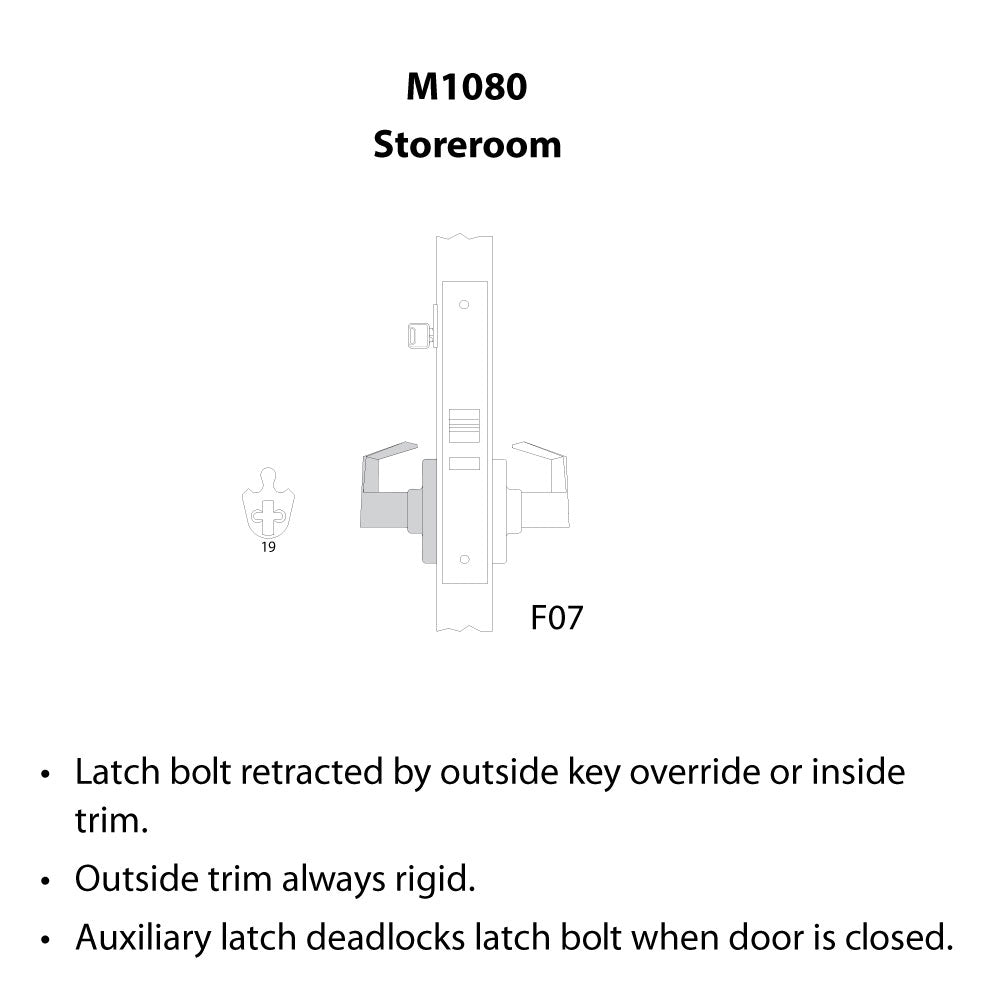

ANSI Function F07, Storeroom - Latch bolt retracted by outside key override or inside trim. • Outside trim always rigid. • Auxiliary latch deadlocks latch bolt when door is closed.

Features:

  • M1000 features advanced design concepts for extreme reliability and is manufactured for exceptional durability.
  • Built with a heavy-duty mortise chassis for all applications where ANSI/BHMA A156.13 Grade 1 products are required.
  • UL listed 3-hour rating; conforms to standards UL10C and UBC 7-2-1997
  • Built in the USA – meets Buy America Act (BAA)
  • Meets A117.1 accessibility code and ADA requirements for barrier-free accessibility
  • The M1000 complies with TAS 201-94, 202-94, and 203-94 to meet High Velocity Hurricane Zone (HVHZ) and thus meeting the requirement for Miami-Dade
  • Meets California State Reference Code (formerly title 19, California State Fire Marshall standard)
  • Field-reversible latch bolt is easily changed in seconds
  • Includes mortise cylinder, Schlage C Keyway

Recommended Applications

  • Schools and Universities
  • Hotels
  • Apartments
  • Hospitals and Nursing Homes
  • Churches
  • Municipal Buildings
  • Airports
  • Retail Complexes
  • Offices
  • Warehouses

Brand

Finishes

626 Satin Chrome

Lever Design

LR

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Lock Function

Storeroom

ANSI Function

F07

ANSI Grade

Meets ANSI - A156.13, Series 1000, Grade 1 Standards

Usage

Heavy Duty

Fire-Rating

UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Latchbolt

Stainless steel 3/4” throw

Backset

2-3/4"

Strike

Brass, non-handed curved strike 4-7/8" x 1 1/4"

Handing

Handed - Field Reversible

Door Thickness

1-3/4"

Warranty

2-year limited warranty

Buy American Act Compliance

Meets Buy American Act - Made in USA
