Dormakaba M1000 Series Mortise Lock with Sectional Trim, LR Lever, A Rose

$450.94

This item ships FREE! Usually Ships: 2-3 Business Days

Extra Heavy-Duty ANSI/BHMA A156.13 Grade-1
ADA compliant, 3 hour fire-rated
Select model/function below (displayed image is M1953 model)

Available Options:

Clear

Finish
Model

Quantity:

Added to Cart

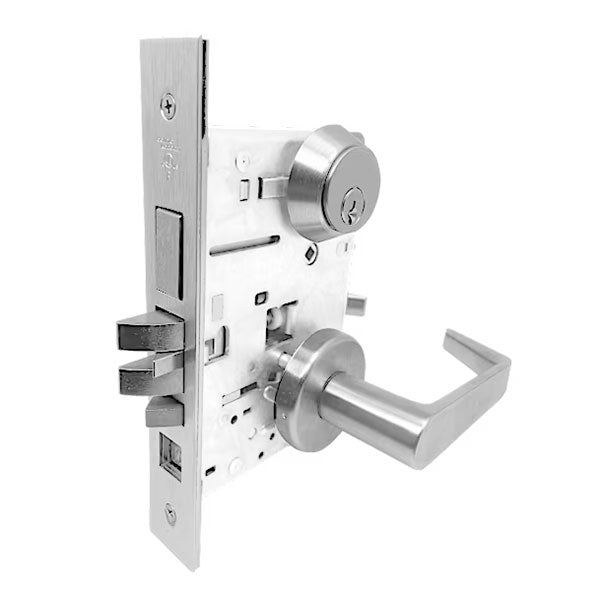

Dormakaba M1000 Series Grade-1 Mortise Lock with Sectional Lever Trim, LR Lever, A Rose

The M1000 Series Grade 1 heavy-duty mortise locksets provide exceptional security, enhanced aesthetics, and rugged dependability.

These premium performance locksets are built with a heavy-duty mortise chassis for all applications where ANSI/BHMA A156.13 Grade 1 products are required.

The M1000 Series is ideal for schools and universities, hotels, apartments, hospitals and nursing homes, churches, municipal buildings, airports, retail complexes, offices and warehouse applications.

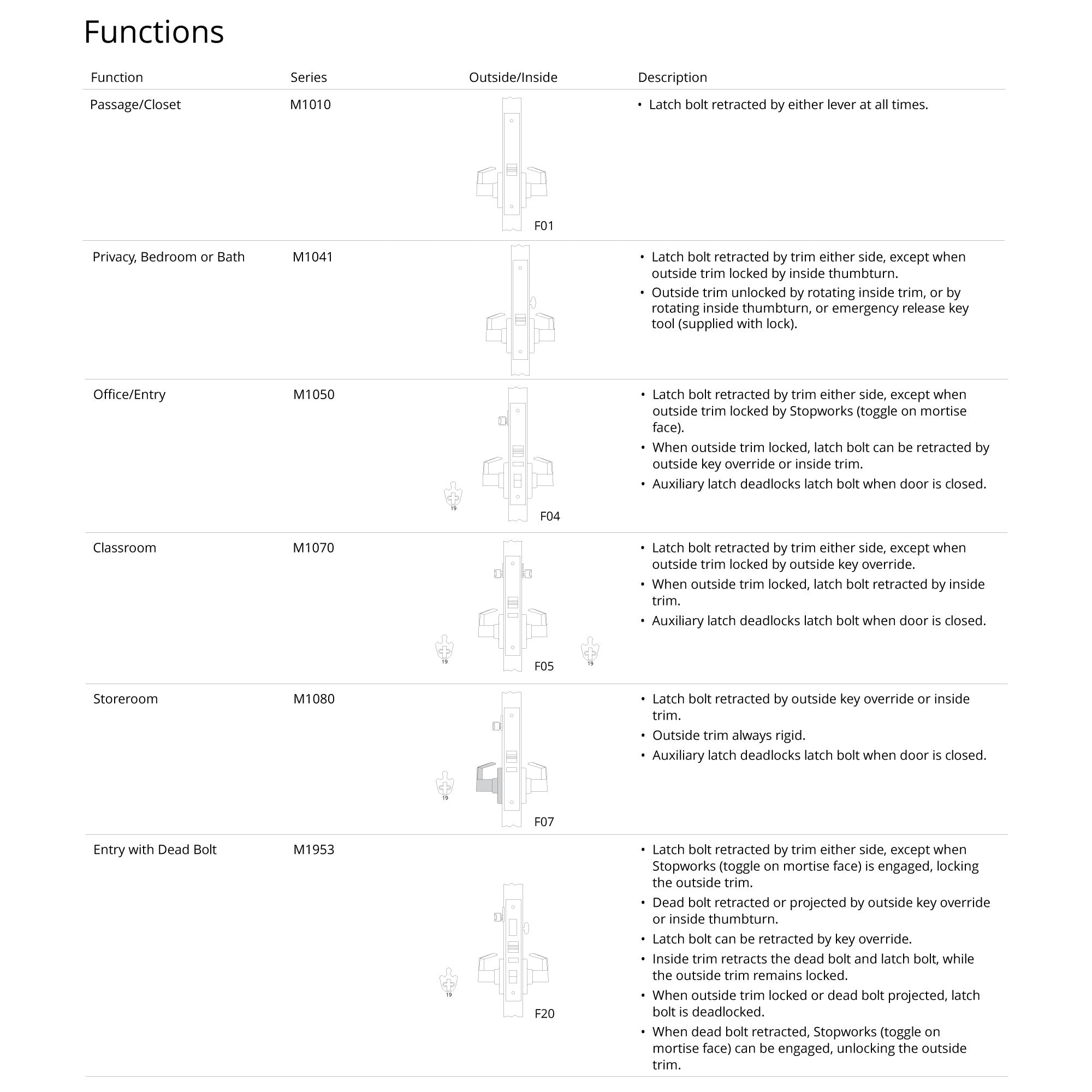

Models / Functions:

M1010 Passage / ANSI Function F01 / Keyless
M1041 Privacy Bedroom/Bath / Keyless
M1050D Office/Entrance / ANSI Function F04
M1070D Classroom / ANSI Function F05
M1080D Storeroom / ANSI Function F07
M1953D Entrance w/ Deadbolt / ANSI Function F20

Features:

M1000 feature advanced design concepts for extreme reliability and manufactured for exceptional durability.
Built with a heavy-duty mortise chassis for all applications where ANSI/BHMA A156.13 Grade 1 products are required.
UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
Built in USA – meets Buy America Act (BAA)
Meets A117.1 accessibility code and ADA requirements for barrier-free accessibility
Field reversible latch bolt is easily changed in seconds
Keyed functions include mortise cylinder, Schlage C Keyway

Brand	Dormakaba
Finishes	626 Satin Chrome
Model	M1010 - Passage, M1041 - Privacy, Bedroom, or Bath, M1050 - Office/Entry, M1070 - Classroom, M1080 - Storeroom, M1953 - Entry w/ Deadbolt

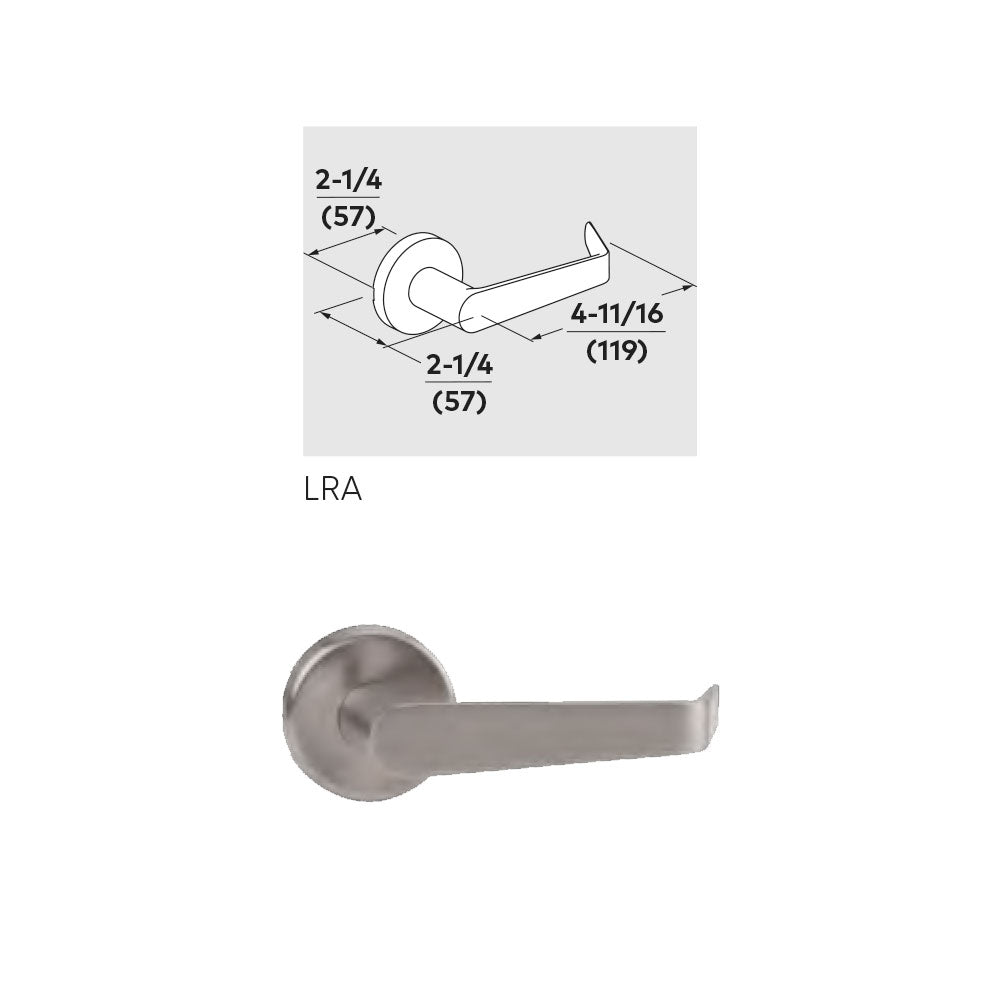

Lever Design	LR
Rose Design	A
ANSI Grade	Meets ANSI - A156.13, Series 1000, Grade 1 Standards
Usage	Heavy Duty
Fire-Rating	UL Listed for "A" Label 3 Hour Fire Doors
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Latchbolt	Heavy duty ¾" latch bolt with anti-friction latch
Backset	2-3/4"
Strike	Brass, non-handed curved strike 4-7/8" x 1 1/4"
Handing	Handed - Field Reversible
Door Thickness	1-3/4"
Warranty	2-year limited warranty
Buy American Act Compliance	Meets Buy American Act - Made in USA
