Dormakaba

Dormakaba ITS9613 HO Concealed in Door Closer, Hold Open

$548.23
This item ships FREE! Usually Ships:  1-2 Business Days
  • For interior 1-3/4" wood, hollow metal, and aluminum doors and frames
  • For doors up to 36" wide NOT to exceed 125 lb.
  • Adjustable spring size 1-3 - ADA compliant

Available Options:

Clear

Product Overview

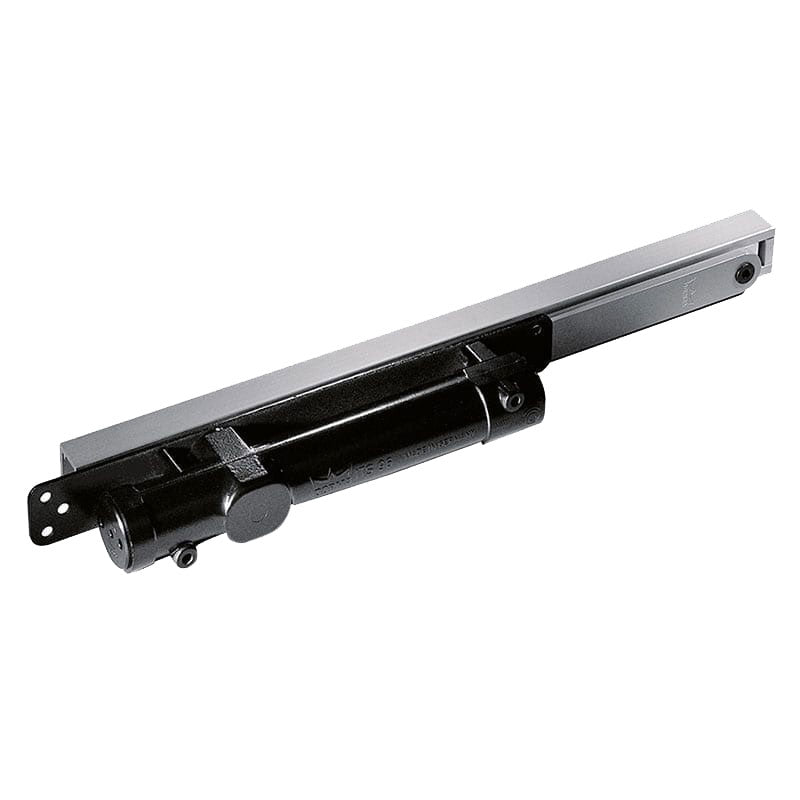

Dormakaba ITS9613 HO Grade 1 Concealed-in-Door Closer, Hold Open, Size 1-3, Painted Finish

The ITS96 series offers the optimum solution for applications requiring concealed door controls. It is suited for virtually any door and frame combination in a variety of leaf thicknesses and configurations.

  • Body gets mounted into door and track gets mounted into frame
  • Rapid decrease in opening force makes doors easy to open
  • Efficient cam and roller design
  • Non-handed
  • Hold open adjustable between 80° and 120°
  • Adjustable spring force size

Cam and roller technology

The ITS96 door closer’s unique cam and roller technology meets the challenge of providing the operation and features necessary in a compact design.

Door applications

The ITS96 Series is suitable for interior wood, hollow metal, and aluminum doors and frames. All ITS96 models can be inverted to install the closer body in the frame.  Maximum door opening is approximately 130°.

Certification

Meets the requirements of ANSI/BHMA A117.1 and ADA for barrier-free accessibility.

Brand

Finishes

689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated)

Usage

Standard Duty

Handing

Non-Handed

Fire-Rating

Non-Rated with Hold Open Arm

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Applications

Interior 1-3/4" Metal, Wood and Aluminum Doors

Door Weight

up to 125 lbs.

Door Width

36" max.

Door Opening

Maximum (approximately) 130°
