Product Overview

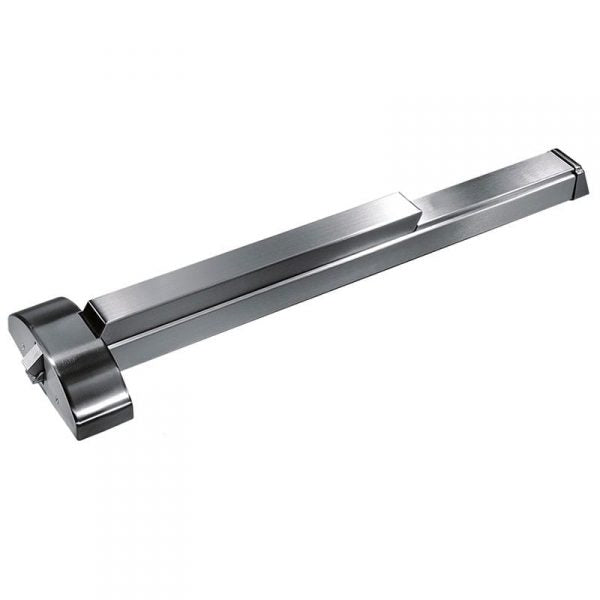

Dorma 9300 Heavy Duty Grade 1 Rim Exit Device, Motorized Latch Retraction (Electric Dogging), Wide Stile Pushpad, Non-handed
The 9000 Series heavy-duty exit device provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards. This premium exit device is for high impact applications such as schools, universities, and other institutional or commercial buildings.
Motorized latch bolt retraction
A motor concealed in the touchbar assembly provides retraction of the latch bolt by drawing in the touch bar to allow access from the secure side of the door. MLR can also be used to electrically dog/hold the exit push bar in a retracted position during non-secure hours (latch bolt is retracted). Remote control can be accomplished with switching devices such as key switches and card readers that provide a normally open electrical contact. The motor is rated at 24 VDC, 1.5 AMP.
The motor draws approximately 215 milliamp during continuous operation. MLR can be powered by the RPSMLR Power Supply series. The RPSMLR Power Supply can power up to 2 MLR panic exit devices RPSMLR2 – Small enclosure, no battery storage RPSMLR2BB – Larger enclosure for battery storage (Batteries not included) The 9000 MLR can also be powered with ED900 Low Energy ADA Operator.
- Exit Only (Dorma outside exit device trim sold separately)
- Devices fit standard 1-3/4”- 2-1/4” thick doors
- Complies with NFPA 101 life safety code. Fire-rated devices comply with NFPA 80 fire doors and windows.
- Size B = 36", Size A = 48"
| Brand | |
|---|---|
| Length |
Size B - 28" to 36", Size A - 34" to 48" |
| Electric Options |
Motorized Latch Retraction |
| Finishes |
630 Satin Stainless Steel |
| ANSI/BHMA Standard |
Certified/listed to ANSI/BHMA 156.3, Grade 1 for exit devices |
| Usage |
Heavy Duty |
| Fire-Rating |
Non Fire-Rated |
| Dogging Feature |
No Manual Dogging - Electric Latch Retraction |
| Latchbolt |
Deadlatching, 3/4" throw |
| Strike |
463 Standard |
| Stile Type |
Wide (Standard) |
| Stile |
4-1/2 " minimum |
| Handing |
Non-Handed |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
