Dormakaba

Dormakaba 9300 CD Rim Exit Device with Cylinder Dogging

$1,013.85
Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Includes cylinder dogging kit (cylinder not included)
  • Mortise cylinder sold separately

Available Options:

Clear

Product Overview

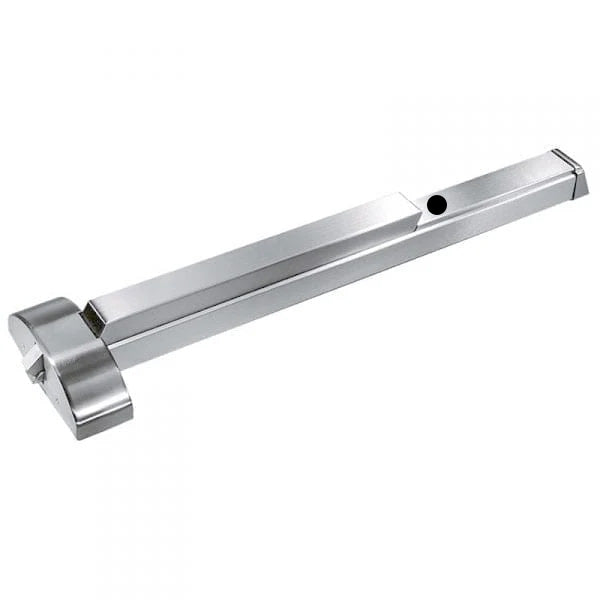

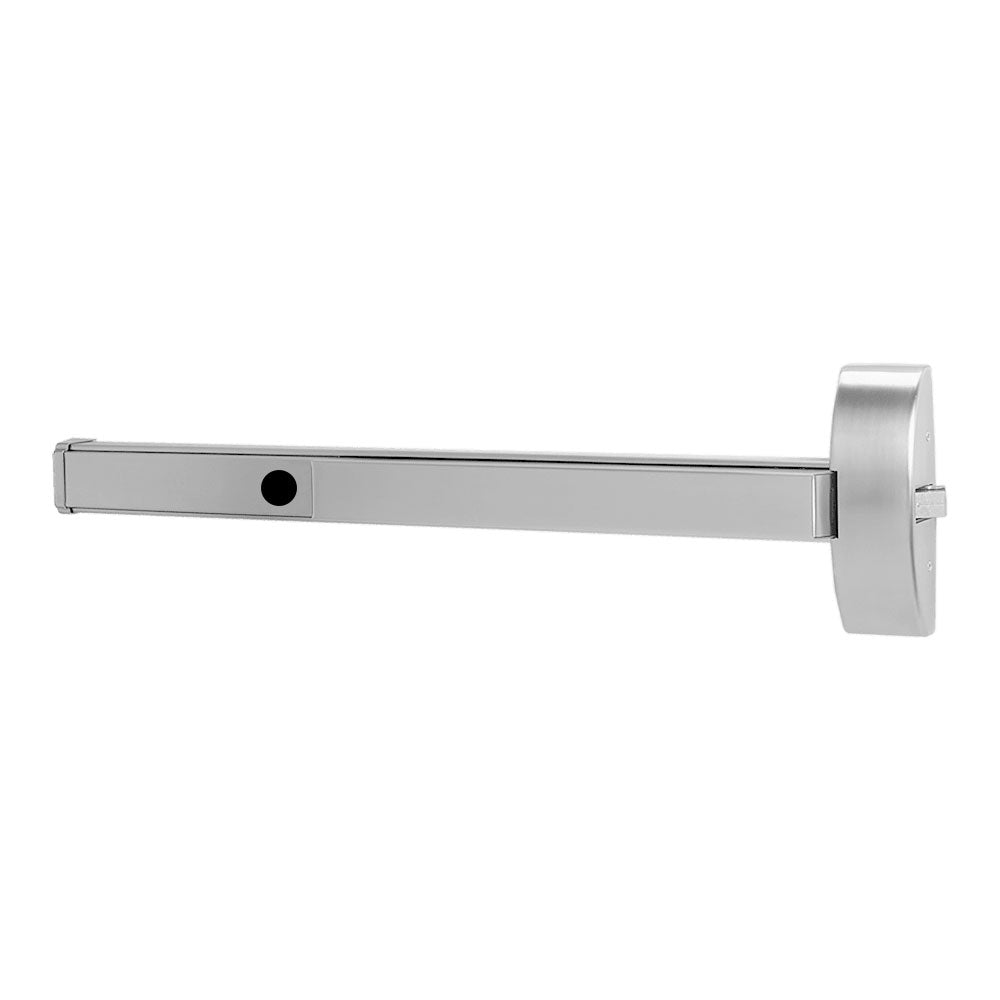

Dorma 9300 CD Heavy Duty Grade 1 Rim Exit Device, Cylinder Dogging, Less Cylinder, Wide Stile Pushpad, Non-handed

The 9000 Series heavy-duty exit device provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards. This premium exit device is for high impact applications such as schools, universities, and other institutional or commercial buildings.

  • Exit Only (Dorma outside exit device trim sold separately)
  • Includes cylinder dogging kit (mortise cylinder sold separately)
  • Devices fit standard 1-3/4”- 2-1/4” thick doors
  • Complies with NFPA 101 life safety code. Fire-rated devices comply with NFPA 80 fire doors and windows.
  • Size B = 36", Size A = 48"

made-in-usa

Brand

Length

Size B - 28" to 36", Size A - 34" to 48"

Finishes

630 Satin Stainless Steel

Mechanical Options

Cylinder Dogging

ANSI/BHMA Standard

Certified/listed to ANSI/BHMA 156.3, Grade 1 for exit devices

Usage

Heavy Duty

Fire-Rating

Non Fire-Rated

Dogging Feature

CD - Cylinder Dogging (less cylinder)

Latchbolt

Deadlatching, 3/4" throw

Strike

463 Standard

Stile Type

Wide (Standard)

Stile

4-1/2 " minimum

Handing

Non-Handed

Buy American Act Compliance

Meets Buy American Act - Made in USA
