Dormakaba

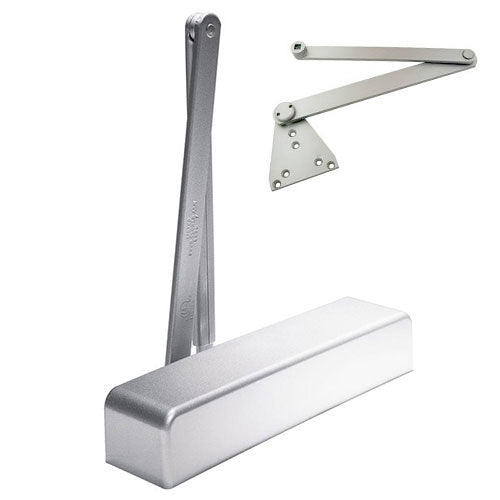

Dormakaba 8916 SPA Door Closer with Heavy Duty Super Parallel Arm

$290.24
Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade 1 Certified
  • Includes SPA (super parallel arm)
  • Push side, parallel arm mount only

Product Overview

Dorma 8916 SPA Complete Surface Closer Door, Super Parallel Arm, Non Hold Open, Full Cover

The 8900 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and backcheck, along with a narrow projection full cover and flatform style arm.

Versatile, durable, and reliable, featuring modern styling for institutional or high-traffic commercial applications.

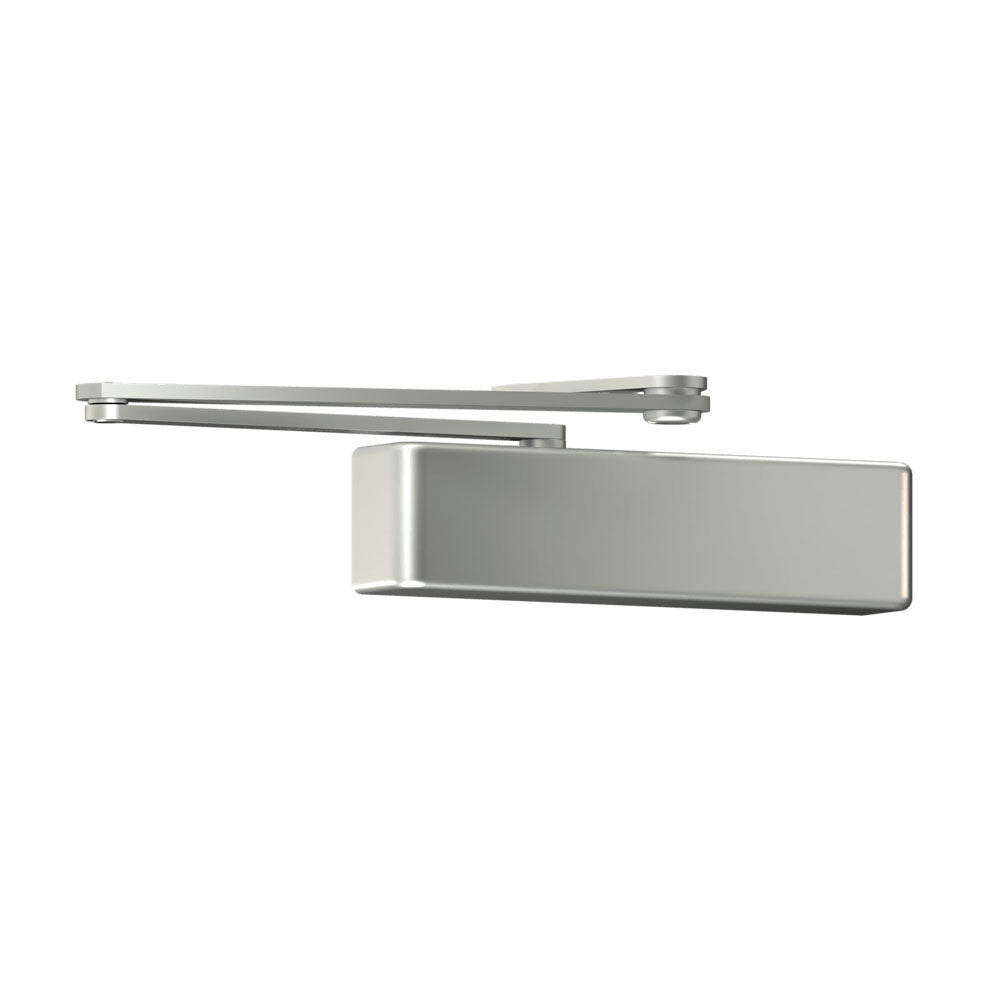

  • 8916-SPA-FC-SN1-689
  • Includes SPA Arm — Super parallel arm, non-hold open
  • Parallel Arm Mount Only
  • Long term performance
  • Adjustable spring sizes and power
  • Meets barrier-free requirements
  • Adjustable backcheck
  • Corrosion-resistant aluminum body
  • Backed by 25 year warranty

Super Parallel Arm

  • Heavy-duty parallel arm
  • Units can be installed for maximum opening of 100° or 180°
  • Maximum opening is 180° (conditions permitting)
  • Arm is nonhanded
Brand

Templating (Hole Pattern)

2-1/8" x 5"

Finishes

689 Aluminum (Powder Coated)

Mounting Options

Parallel Arm (Push Side)

Handing

Non-Handed

Spring Size

Adjustable Spring Size 1-6

Body Construction

Cast Aluminum Body

Usage

Heavy Duty

ANSI Grade

ANSI/BHMA A156.4 Grade 1 Certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL and CUL listed – Meets UL10C for positive pressure

Cover

Full Cover

Fasteners

SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard

Warranty

25 Year
