Dormakaba

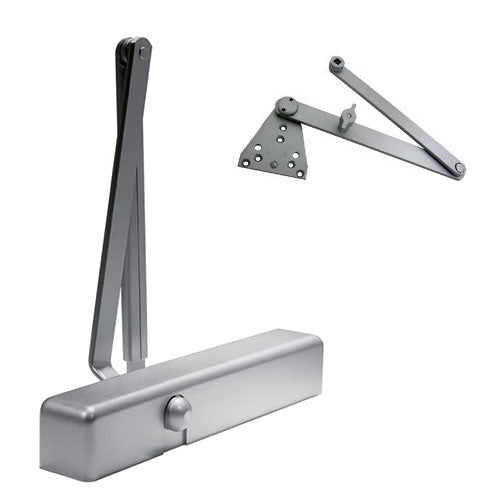

Dormakaba 8616 DST Door Closer with Door Saver Parallel Cushion Stop Arm with Thumb Turn Hold Open

$284.95
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade 1 Certified
  • Adjustable spring size 1-6
  • Parallel arm mount, stop arm with hold open

Product Overview

Dorma 8616 DST Complete Surface Closer Door, Door Saver Parallel Cushion Stop Arm with Hold Open, Slim Cover

The 8600 door closer series is a non-handed surface applied door closer with adjustable spring power and backcheck positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

  • 8616 DST COV SNB1 689
  • Includes DST Arm — Door saver arm thumb turn hold open
  • Adjustable spring sizes and power
  • Meets barrier-free requirements
  • Adjustable backcheck
  • Corrosion-resistant aluminum body
  • Backed by 25-year warranty

DST Door Saver Arm with Hold Open

  • Heavy-duty parallel arm with integral cushioned opening function
  • Hold open
  • Units can be installed to achieve either stop or stop and hold open at 85°, 90°, 100°, and 110°
  • Maximum opening is 110° (conditions permitting)
  • Arm is non-handed
Brand

Finishes

689 Aluminum (Powder Coated)

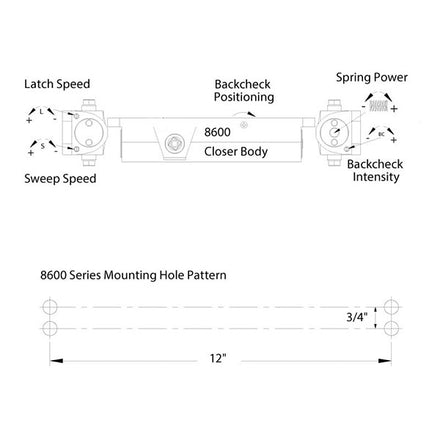

Templating (Hole Pattern)

3/4" x 12"

Mounting Options

Parallel Arm (Push Side)

Handing

Non-Handed

Spring Size

Adjustable Spring Size 1-6

Body Construction

Cast Aluminum Body

Usage

Medium Duty

ANSI Grade

ANSI/BHMA A156.4 Grade 1 Certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

None

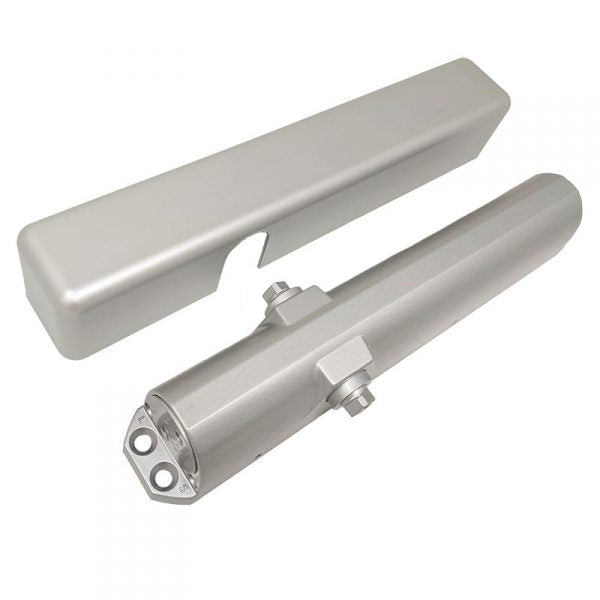

Cover

Slim Cover

Fasteners

SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard

Warranty

25 Year
