Doormerica

Doormerica LHV53 IC Entrance Lever Lock, SFIC Prep

$112.48
Usually Ships:  2-3 Business Days
  • ANSI A156.2 Grade 1
  • ANSI function F109
  • Small format interchangeable core prep (core sold separately)

Available Options:

Clear

Product Overview

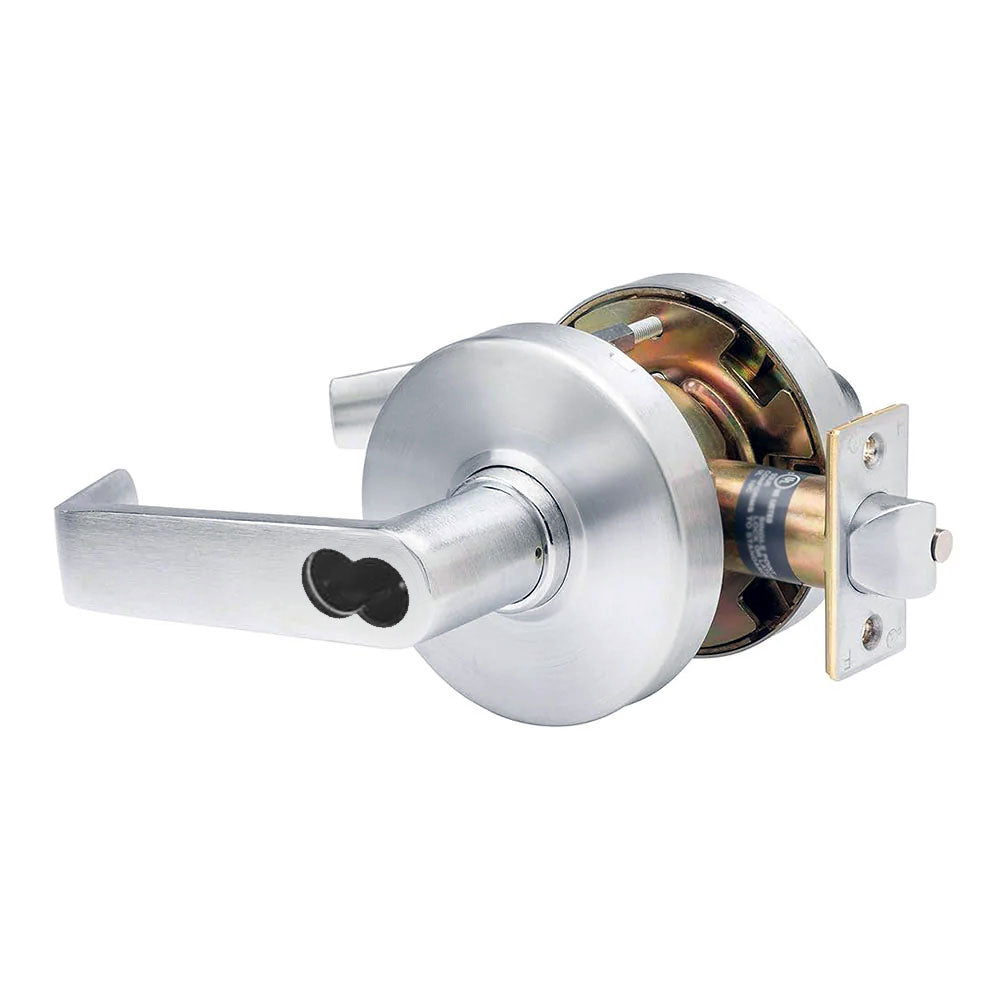

Doormerica LHV53 Grade 1 Entrance Cylindrical Lock, 2-3/4" B.S., ASA Strike, Small Format Interchangeable Core Prep, Less Core

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

Entry Function, ANSI F109 – Pushing inside button locks outside trim requiring key to unlock. Pushing and twisting button locks outside lever and always requires a key to unlatch. Inside lever always allows free egress

Features

  • Non-handed and reversible
  • 2-3/4" backset, 1-1/8"x 2-1/4" faceplate, UL 3-hour fire listed stainless steel latch
  • PLKASA - 4-7/8"x 1-1/4" ANSI strike
  • Saturn, Sparta, and Tubular lever design
  • Barrier-free and returns within 1/2" from the door face
  • Door thickness 1-3/4"- 2"

Code Compliance

  • ANSI A156.2 Grade 1
  • UL10C and UBC 7.2 for positive pressure
  • ANSIA117.1 and ADA for barrier-free accessibility
  • C-UBC California Amended Uniform Builders Code - 2001
  • NFPA-80 National Fire Protection Assoc. - 1999
  • NFPA-101 National Fire Protection - Life Safety 2000
Brand

Finishes

US26D (626) Satin Chrome

ANSI/BHMA Standard

ANSI/BHMA A156.2 Grade 1

Usage

Heavy Duty

Lock Function

Entry (Entrance)

Cylinder Format

Small Format Interchangeable Core (SFIC)

Backset

2-3/4"

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Lever Design

SAT (Saturn), SPA (Sparta)

Handing

Non-Handed

Fire-Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Warranty

Limited Lifetime Warranty
