Doormerica LDV70 Classroom Lever Lock

$47.95
Usually Ships:  2-3 Business Days
  • ANSI A156.2 Grade 2
  • ANSI function F84
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

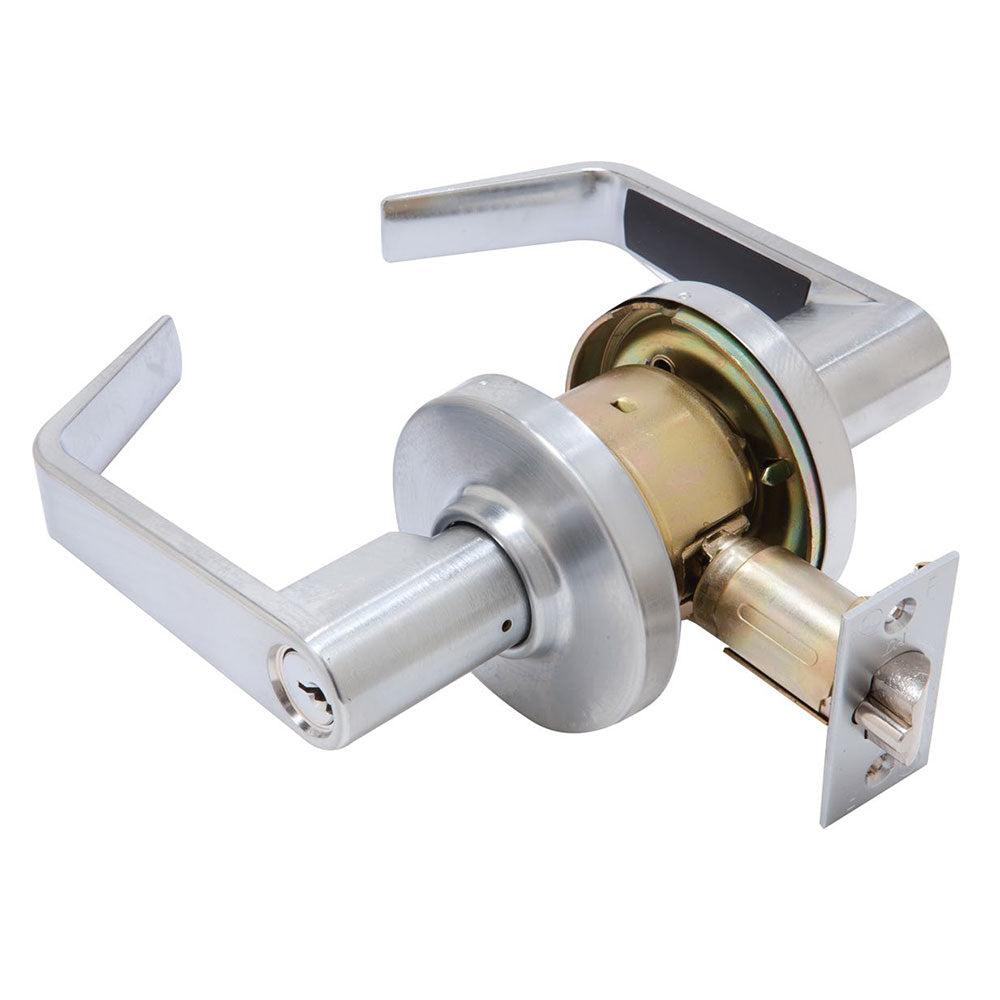

Doormerica LDV70 Grade 2 Classroom Cylindrical Lock, 2-3/4" B.S.

Doormerica offers quality hardware for commercial applications at an affordable price.

Classroom Function, ANSI F84 – Outside lever locked or unlocked by key. Inside lever always allows free egress.

Features

  • Non-handed and reversible
  • 2-3/4" backset, 1-1/8" x 2-1/4" faceplate
  • PLKASA - 4-7/8"x 1-1/4" ANSI strike
  • Schlage "C" 6-pin keyway standard

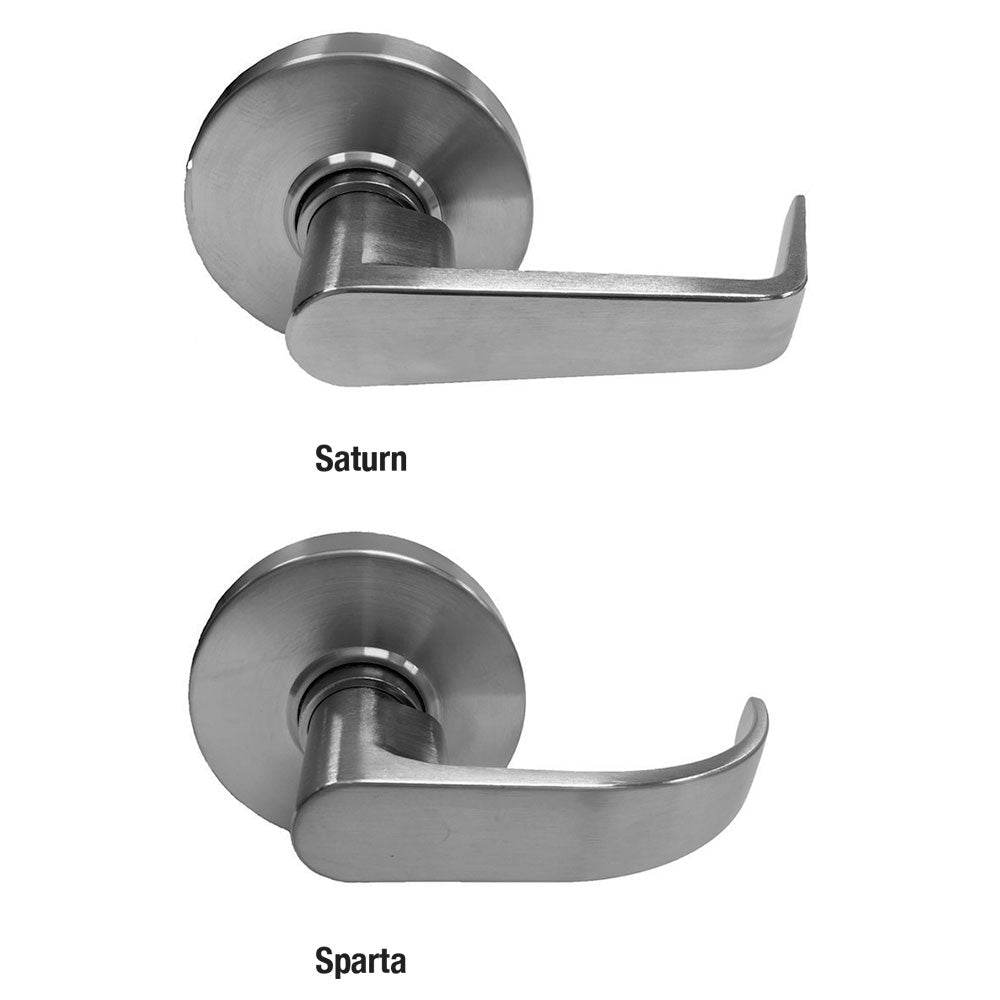

  • Sparta or Saturn lever trim
  • Barrier-free and returns within 1/2" from the door face
  • Door thickness 1-3/8"- 1-3/4"

Code Compliance

  • ANSI A156.2 Grade 2. UL10C and UBC 7.2 for positive pressure
  • ANSIA117.1 and ADA for barrier-free accessibility
  • C-UBC California Amended Uniform Builders Code - 2001
  • NFPA-80 National Fire Protection Assoc. - 1999
  • NFPA-101 National Fire Protection - Life Safety 2000
Brand

Finishes

US26D (626) Satin Chrome

ANSI/BHMA Standard

ANSI/BHMA A156.2 Series—Grade 2

Usage

Medium Duty

Lock Function

Classroom

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Backset

2-3/4"

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Fire-Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Warranty

1 Year
