Doormerica

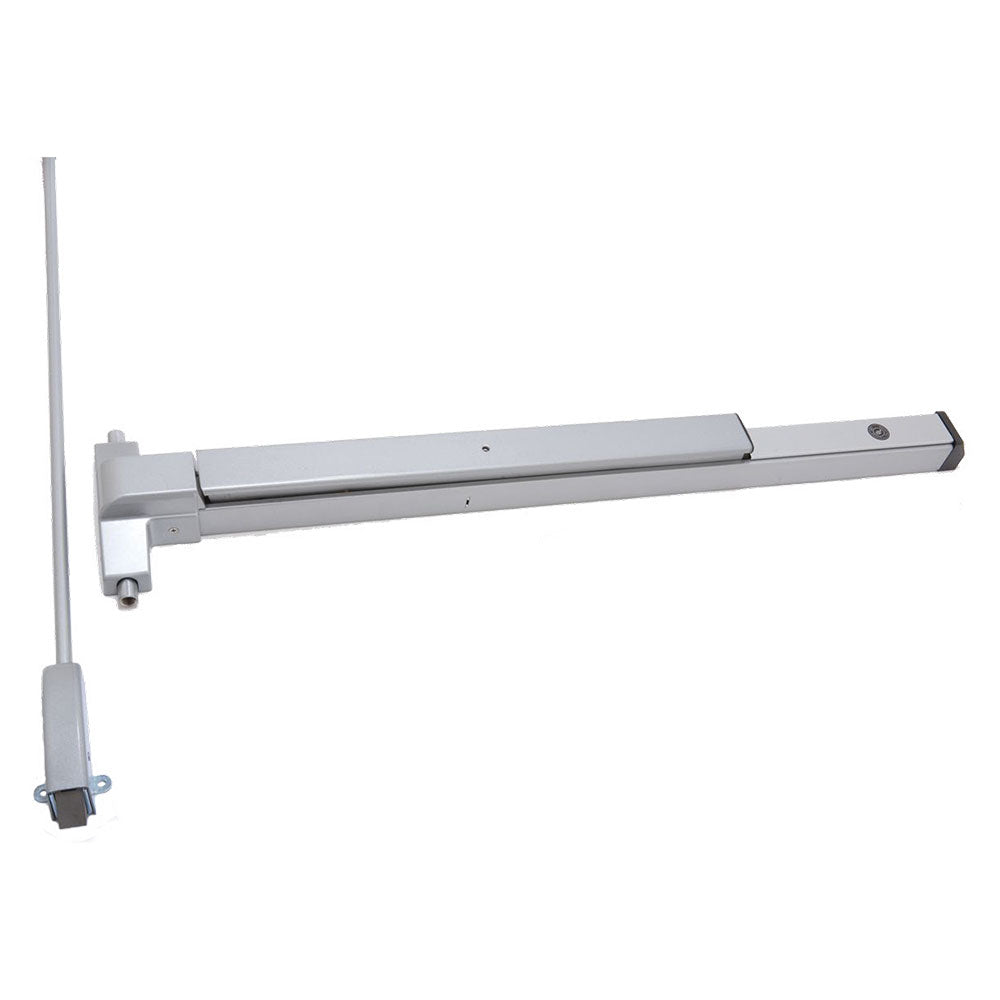

Doormerica EDVR531 Surface Vertical Rod Exit Device

$191.22
Usually Ships:  2-3 Business Days
  • ANSI A156.3 Grade 2
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed for panic exit hardware

Available Options:

Clear

Product Overview

Doormerica EDVR531 Surface Vertical Rod Exit Device, Wide Stile Pushpad, Hex Dogging, Exit Only

Doormerica offers quality hardware for commercial applications at an affordable price.

Features

  • Exit Only (Doormerica Exit Device Trim sold separately)
  • Deadlatching and non-handed
  • Interlocking top and pullman bottom latch
  • For all doors up to 36" (3') x 84" (7')
  • Standard door thickness 1-3/4”

Code Compliance

  • ANSI A156.3 Grade 2
  • UL listed for Panic and UL 10C, UBC 7-2-1997 codes
  • ANSI A117.1 and ADA for barrier-free accessibility
  • C-UBC California Uniform Builders Code - 2001
Brand

Finishes

AL - Aluminum, BLK Black, DU - Dark Bronze

Length

36" (30" to 36" Door Width)

Usage

Light Duty

ANSI/BHMA Standard

ANSI A156.3, Grade 2

Fire-Rating

Non-Fire-Rated

Device Type

Surface Rod Device

Stile Type

Wide (Standard)

Minimum Stile Width

3"

Door Thickness

1-3/4"

Dogging Feature

Half turn hex dogging standard

Warranty

1 Year
