Product Overview

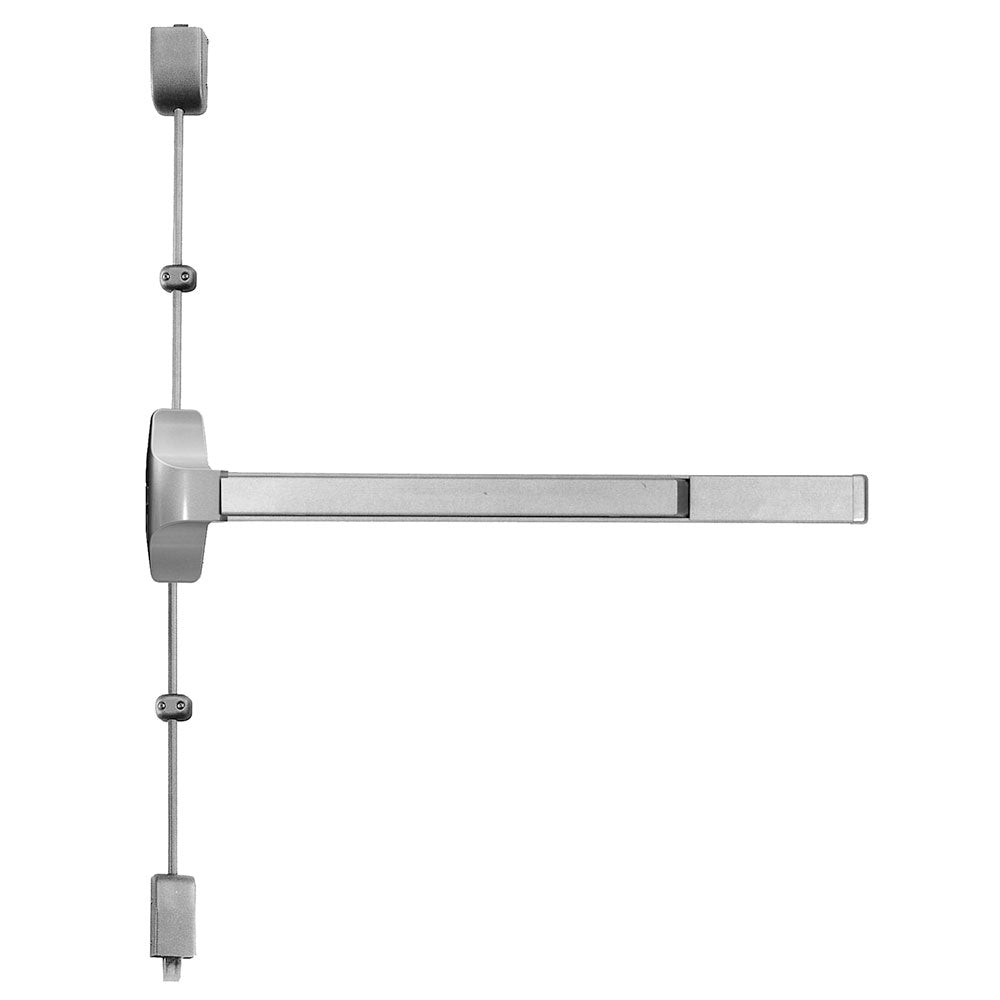

Doormerica EDFV701 Surface Vertical Rod Exit Device, Wide Stile Pushpad, Hex Dogging, Exit Only, Fire Rated
Doormerica offers quality hardware for commercial applications at an affordable price.
Features
- Exit Only (Doormerica Exit Device Trim sold separately)
- 50" top rod, can accommodate doors up to 8'0" height
- Chassis mounted unit construction
- Minimum style 3-1/2”
- Standard door thickness 1-3/4”
- Universal design retrofits on Von Duprin 9927 series & Sargent 88 Series
- Material: Cover, and cap and rail are made of brass, bronze or Stainless Steel
- Mounting: Furnished with wood & machine screws
- Non Handed
- Latch Bolt: Stainless Steel 3/4”
Sizes
- 3'0" x 8'0" (for 2'6" to 3'0" wide door, up to 8'0" height - top rod can be field cut for shorter doors)
- 4'0" x 8'0" (for 3'1" to 4'0" wide door, up to 8'0" height - top rod can be field cut for shorter doors)
Code Compliance
- ANSI A165.3, Grade 1
- UL listed for Panic and UL 10C, UBC 7-2-1997 codes
- UL listed for Fire Exit Hardware 3-Hours
- (A) label rating on pairs of doors up to 8'0" x 8'0" swinging in same or opposite directions
| Brand | |
|---|---|
| Finishes |
US28 (628) Anodized Aluminum, US32D (630) Satin Stainless Steel, US10B Oil Rubbed Bronze, BLK Black |
| Length |
36" (30" to 36" Door Width), 48" (42" to 48" Door Width) |
| Device Type |
Surface Rod Device |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 Series—Grade 1 |
| Fire-Rating |
UL/cUL listed up to 3 Hours |
| Stile Type |
Wide (Standard) |
| Minimum Stile Width |
3-1/2" |
| Projections |
2-1/2" active, 1-3/4" depressed |
| Dogging Feature |
None |
| Door Thickness |
1-3/4" |
| Warranty |
Limited Lifetime Warranty |
