Doormerica DMH Touch Touchscreen Digital Lock with Smart+ Prox Card

$432.82
Usually Ships:  2-3 Business Days
  • Certified ANSI/BHMA A156.2 Series 4000, Grade 1
  • Easy installation and programming
  • Mechanical key override, Schlage C keyway

Available Options:

Clear

Product Overview

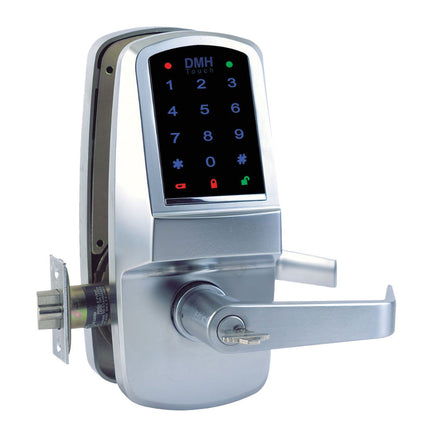

Doormerica Grade-1 DMH Touch Touchscreen Digital Lock with Smart+ Prox Card

Stand-alone touchscreen responds to human touch enabling convenient entrance or access to programming menu. After operation has been completed, the lock reverts to sleep mode.

Features

  • Grade 1 lockset with electronic modern touchscreen
  • Easy programmable menu
  • Smart+ Prox card compatible - slim "no slot" design
  • Convenient wake-up button illuminates and activates the easy-to-read key pad
  • Low battery indicator
  • Allows up to 1,000 individual user codes and credentials
  • Free-wheeling lever mechanism
  • 9-volt battery terminal for emergency power supply
  • Saturn lever design
  • Allows continuous entry for non-restricted traffic
  • Non-handed, field reversible
  • Wake-up Button activates and illuminates the number pad for PIN code and Prox Card entry
  • Includes 2 Smart+ Prox Cards with additional cards available

Code Compliance

  • ANSI/BHMA - Certified ANSI/BHMA A156.2 Series 4000, Grade 1 strength and operational requirements
  • A.D.A. - All levers conform to ADA requirements for barrier-free accessibility
  • UL/cUL - UL listed to U.S. and Canadian safety standards for 3-hour doors. Letter F and UL symbol latch fronts indicate listing
  • Positive Pressure - Meets UL 10C and UBC 7-2 (1997)
  • California State Reference Code - Levers with less than 1/2"(13mm) returns comply: Levers returns to within 1/2"(13mm) door face
Brand

Finishes

US26D (626) Satin Chrome, US10A Antique Bronze

Lock Function

Touchscreen Keypad

Usage

Heavy Duty

ANSI Grade

ANSI Grade 1

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8" ASA Strike

Door Thickness

1-3/4"

Handing

Non Handed – Completely Reversible

Fire-Rating

UL/cUL listed up to 3 Hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Power

4 AA batteries

Reader Type

Keypad, Proximity

Door Applications

Interior or Exterior Doors

Warranty

1 Year
