Doormerica

Doormerica DC70 / DC70PF Door Closer

$104.15
Usually Ships:  2-3 Business Days
  • ANSI A 156.4 Grade 1
  • Fully Adjustable (Sizes 1-6)
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear
Added to Cart

Product Overview

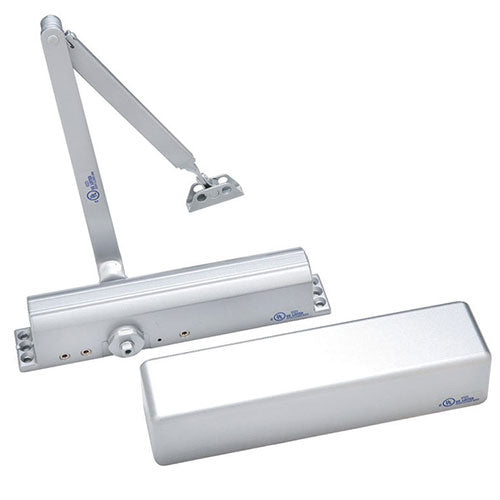

Doormerica DC70BF Grade-1 Door Closer, Size 1-6 Adjustable, Cast Aluminum Body, Regular Arm with PA Bracket, Full Cover, Barrier Free

Doormerica offers quality hardware for commercial applications at an affordable price.

  • Tri-Pack with regular, parallel, and top-jamb mounting
  • Standard spring adjustment from size 1 to 6
  • Non handed
  • Standard with adjustable sweep, latch, and back check
  • Full plastic cover
  • SNB - Sex Nuts and Bolts
  • Standard hole pattern and mounting location
  • Limited Lifetime Warranty

Code Compliance

  • ANSI A 156.4 Grade 1
  • UL 1 OC and UBC 7.2 for positive pressure
  • ANSI A 117.1 and ADA for barrier-free accessibility C-UBC
  • California Amended Uniform Builders Code -2001
  • California State Fire Marshall (CSFM) approved
  • ADA compliant

codes

Brand

Finishes

696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated)

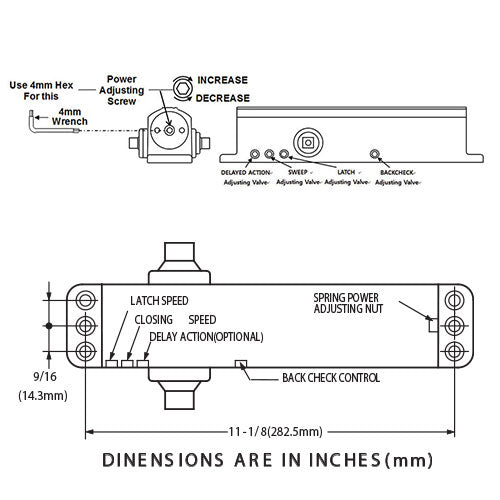

Templating (Hole Pattern)

9/16" x 11-1/8"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Usage

Medium Duty

ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Fire-Rating

UL10C and UBC 7.2 for positive pressure

Handing

Non-Handed

Cover

Full Cover

Door Applications

Hollow Metal, Wood or Aluminum

Warranty

Limited Lifetime Warranty
