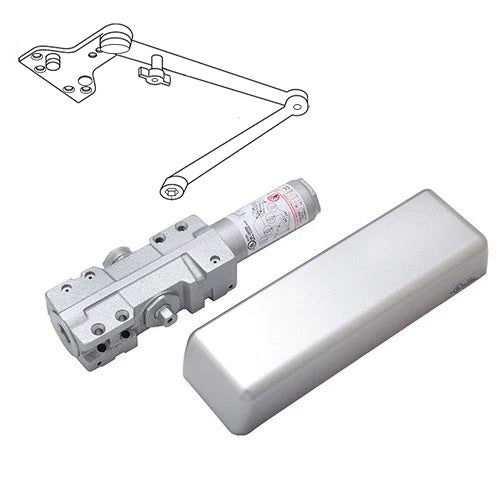

Doormerica DC40HCUSH Door Closer with Heavy Duty Hold Open Cush Stop Arm

$171.68

Usually Ships: 2-3 Business Days

Available Options:

Finish

Quantity:

Added to Cart

Doormerica DC40HCUSH Heavy-Duty Grade-1 Door Closer, Size 1-6 Adjustable, Cast Iron Body, Heavy Duty Parallel Mount Hold Open Stop Arm, Full Cover

Doormerica offers quality hardware for commercial applications at an affordable price.

Same hole pattern as LCN 4040XP HCUSH
Parallel arm mounting
Conforms to the minimum opening force requirements of the ADA and ANSI/BHMA Standard A117.1
Spring adjustment from size BF-6.
Non-handed
Standard with adjustable sweep, latch, and backcheck.
Full plastic cover
SNB -Sex Nuts and Bolts
Cast iron body
Limited Lifetime Warranty

Brand	Doormerica
Finishes	689 Aluminum (Powder Coated)
Templating (Hole Pattern)	2-1/4" x 5"
Mounting Options	Parallel Arm (Push Side)
Special Feature	Hold Open Parallel Arm with Dead Stop
Usage	Heavy Duty
ANSI Grade	Meets ANSI A156.4 – Grade 1 Standards
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Body Construction	Cast Iron Body
Spring Size	Adjustable Spring Size 1-6
Fire-Rating	Non-Rated with Hold Open Arm
Handing	Non-Handed
Cover	Full Cover
Door Applications	Hollow Metal, Wood or Aluminum
Warranty	Limited Lifetime Warranty

DMHClosersDC40
