Doormerica DB851 Single Cylinder Deadbolt

$63.94
Usually Ships:  2-3 Business Days
  • Meets ANSI A156.2 Grade 1 standards
  • Single cylinder x inside turn
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

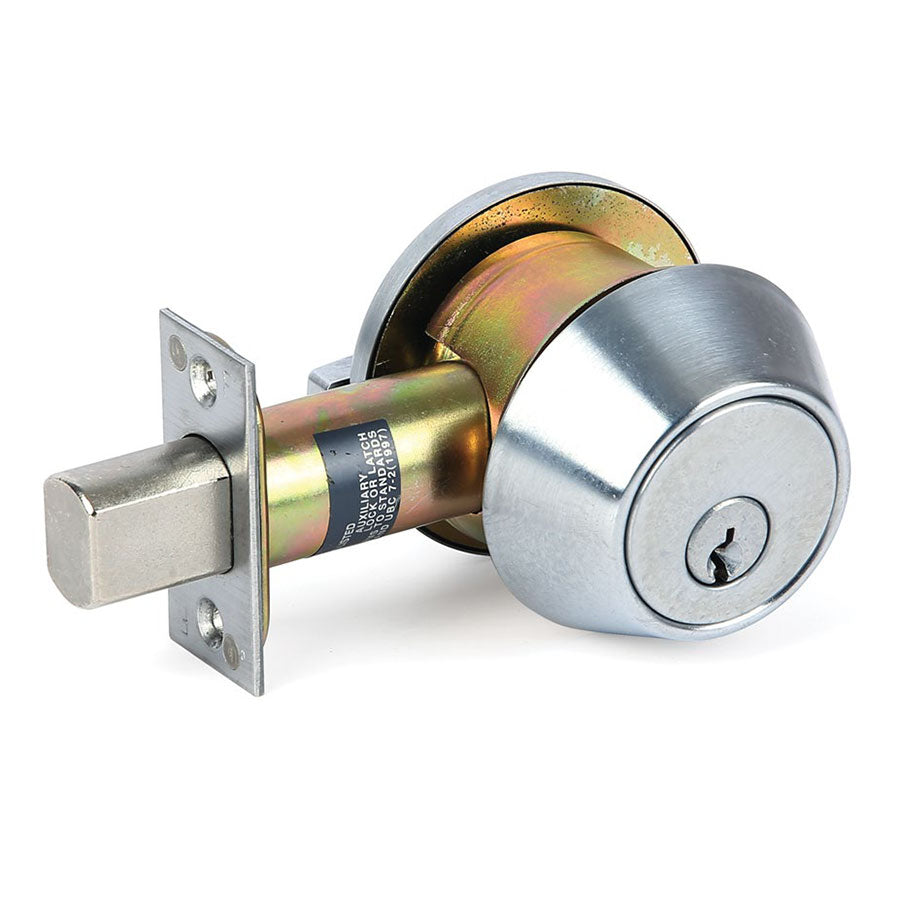

Doormerica DB851 Single Cylinder Deadbolt, 2-3/4" Backset, Grade-1

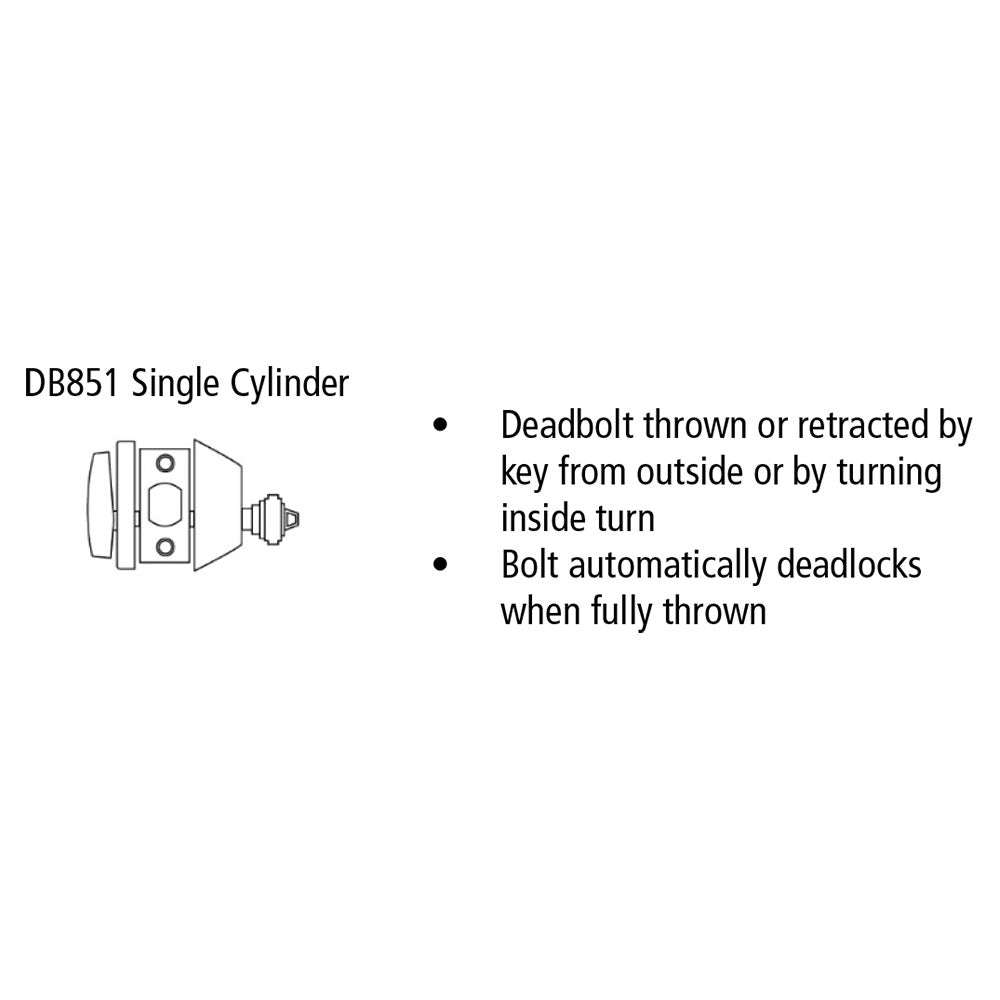

ANSI Function E1151: Deadbolt thrown or retracted by key from outside or by turning inside turn. • Bolt automatically deadlocks when fully thrown.

Features

  • Tested to exceed 250,000 operational cycles ANSI Grade 1 requirements for durability
  • 3" steel screws provide the added strength to prevent break-in attacks on wood doors (exclusive concealed wood frame reinforcer protects wood jambs from kick-in attacks)
  • 1" throw, high-strength deadbolt with hardened steel roller resists sawing and kick-in attacks
  • Standard dust box includes additional space inside strike box for true deadlatch (provides deep anchoring and added strength)
  • Concealed screws on double cylinder deadbolts for enhanced security and safety
Brand

Finishes

US26D (626) Satin Chrome

Deadbolt Type

Single Cylinder

ANSI Function

E1151

ANSI Grade

ANSI/BHMA A156.36 Series 600, Grade 1

Usage

Heavy Duty

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/4"

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/4"

Cylinder Format

Conventional

Warranty

Limited Lifetime Warranty
