Doormerica

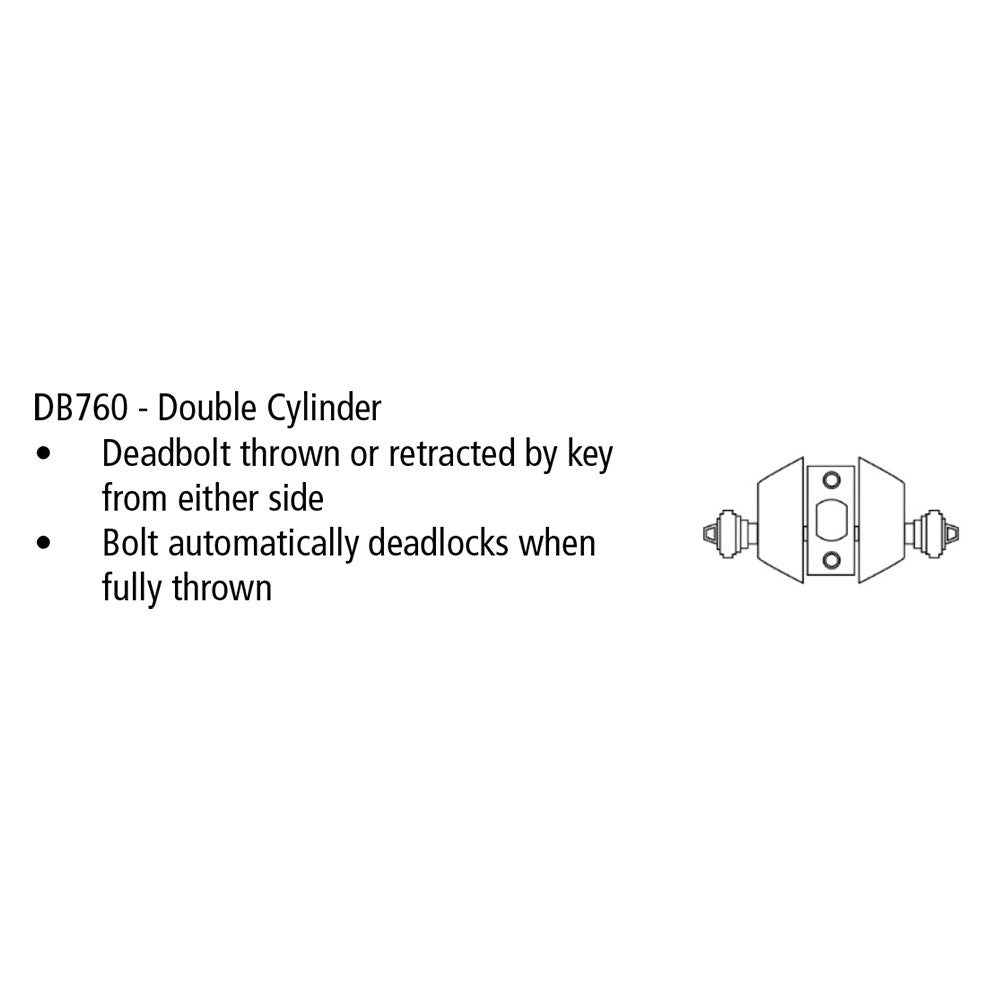

Doormerica DB760 Double Cylinder Deadbolt

$43.81
Usually Ships:  2-3 Business Days
  • Meets ANSI A156.2 Grade 2 standards
  • Double cylinder (key on both sides)
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

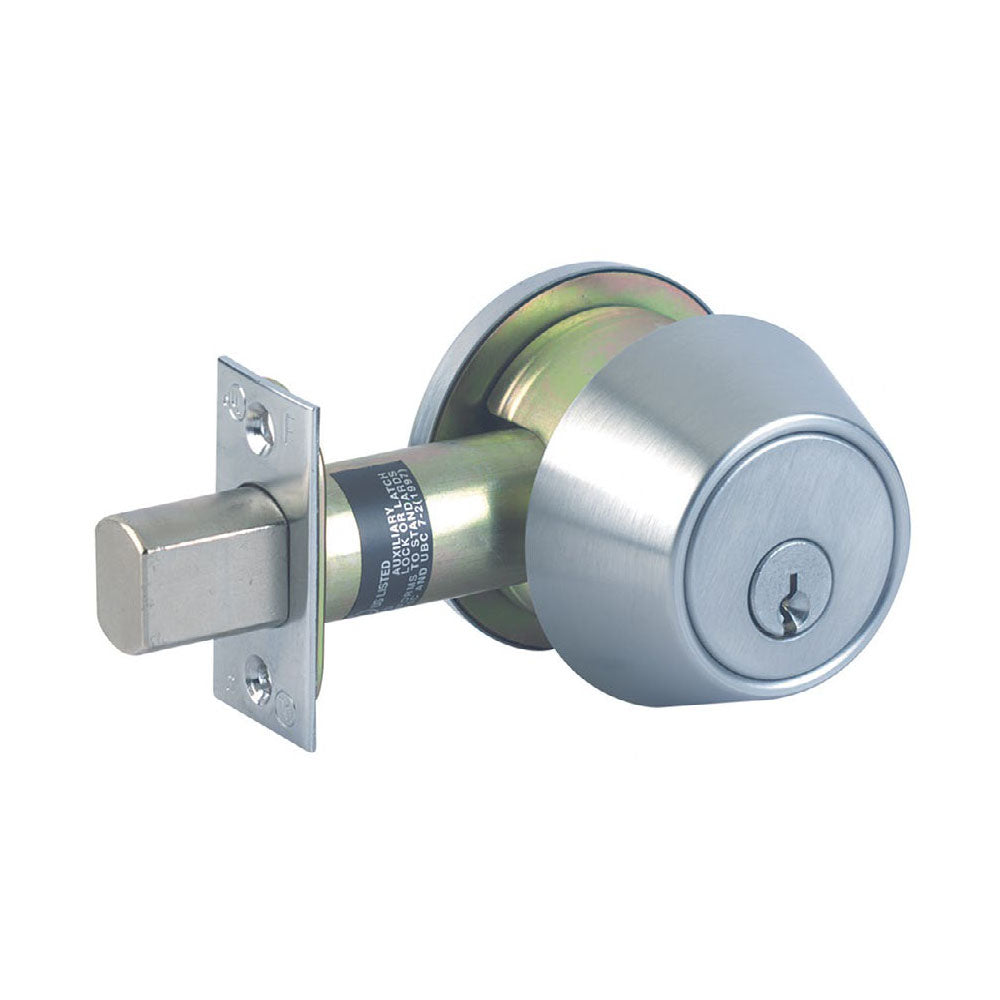

Doormerica DB751 Single Cylinder Deadbolt, 2-3/4" Backset, Grade-2

ANSI Function E21412: Deadbolt thrown or retracted by key from either side • Bolt automatically deadlocks when fully thrown

Features

  • Tested to exceed 150,000 operational cycles ANSI Grade 2 requirements for durability
  • 3" steel screws provide the added strength to prevent against break-in attacks for wood door (exclusive concealed wood frame reinforcer protects wood jambs from kick-in attacks)
  • 1" throw, high-strength deadbolt with hardened steel roller resists sawing and kick-in attacks
  • Standard dust box includes additional space inside strike box for true deadlatch (provides deep anchoring and added strength)
  • Concealed screws on double cylinder deadbolts for enhanced security and safety
Brand

Finishes

US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, US32D (630) Satin Stainless Steel

Deadbolt Type

Double Cylinder

ANSI Function

E21412

ANSI Grade

Meets & exceeds ANSI – A156.2, Grade 2 standards

Usage

Medium Duty

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/4"

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

Door Thickness

1-3/4"

Cylinder Format

Conventional

Warranty

Limited Lifetime Warranty
