Doormerica DB751 Single Cylinder Deadbolt

$31.38

Usually Ships: 2-3 Business Days

Meets ANSI A156.2 Grade 2 standards
Single cylinder x inside turn
ADA compliant, 3-hour fire-rated

Available Options:

Clear

Finish

Quantity:

Added to Cart

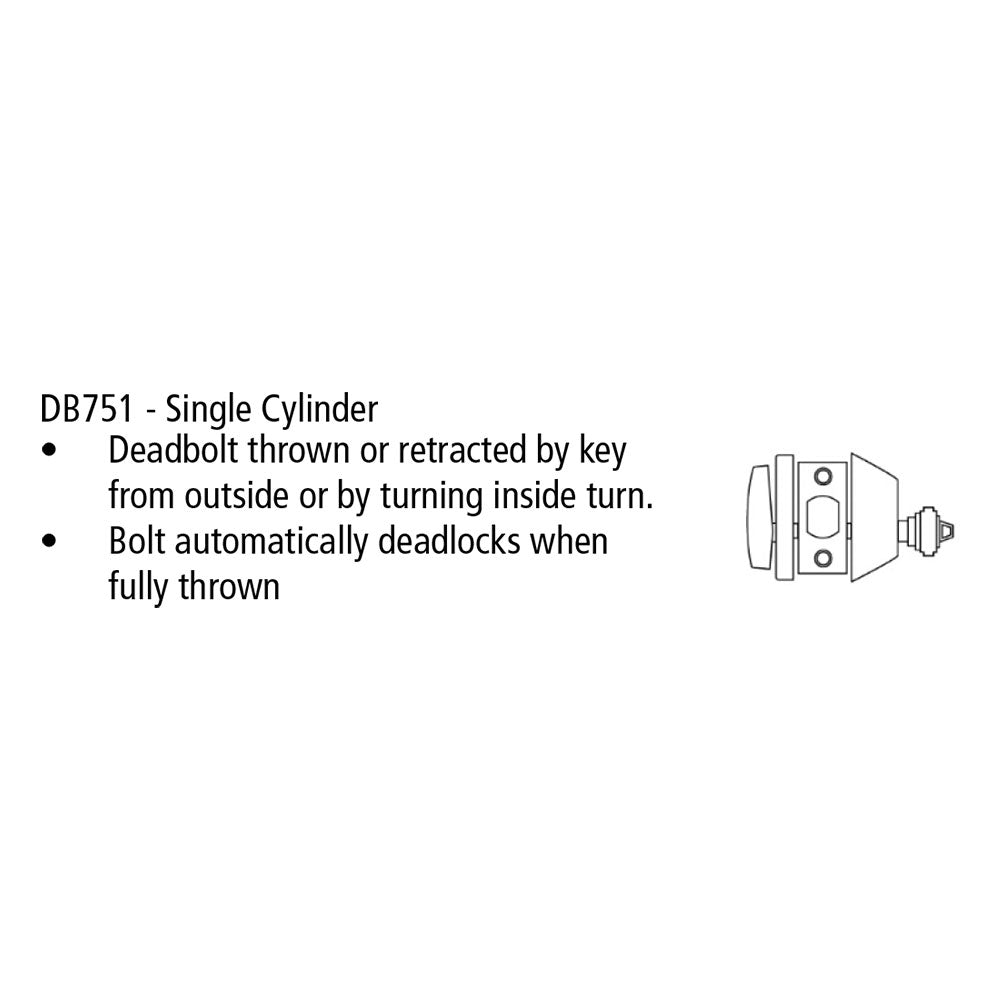

Doormerica DB751 Single Cylinder Deadbolt, 2-3/4" Backset, Grade-2

ANSI Function E1151: Deadbolt thrown or retracted by key from outside or by turning inside turn. • Bolt automatically deadlocks when fully thrown.

Features

Tested to exceed 150,000 operational cycles ANSI Grade 2 requirements for durability
3" steel screws provide the added strength to prevent against break-in attacks for wood door (exclusive concealed wood frame reinforcer protects wood jambs from kick-in attacks)
1" throw, high-strength deadbolt with hardened steel roller resists sawing and kick-in attacks
Standard dust box includes additional space inside strike box for true deadlatch (provides deep anchoring and added strength)
Concealed screws on double cylinder deadbolts for enhanced security and safety

Brand	Doormerica
Finishes	US26D (626) Satin Chrome, BLK Black, US32D (630) Satin Stainless Steel, US10B (613) Oil Rubbed Bronze
Deadbolt Type	Single Cylinder
ANSI Function	E1151
ANSI Grade	Meets & exceeds ANSI – A156.2, Grade 2 standards
Usage	Medium Duty
Cylinder & Keys	5-pin or 6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
Bolt	1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset	2-3/4"
Strike	1-1/8” x 2-3/4“ square corner
Fire-Rating	UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Door Thickness	1-3/4"
Cylinder Format	Conventional
Warranty	Limited Lifetime Warranty
