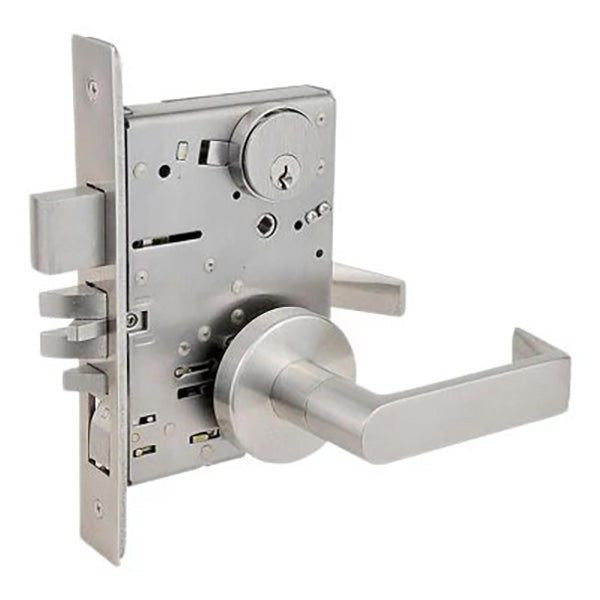

Doormerica CML Series Mortise Lock with Sectional Lever Trim

Doormerica CML Series Mortise Lock with Sectional Lever Trim, US26D/626 Satin Chrome Finish

Doormerica offers quality hardware for commercial applications at an affordable price.

Features

• 6-pin Schlage "C" keyway (keyed functions)

• Door thickness 1-3/4" standard

• Backset 2-3/4 "

• Lock case Heavy-gauge plated steel

• Armored Front Wrought stainless steel or brass adjustable angle and attached by screws to the lock case front

• Dead bolt 1" throw, stainless steel with hardened anti-saw pins

• Latchbolt Stainless steel latch and anti-friction insert

• Guard bolt Stainless steel

• Stop works Push buttons - chrome-plated brass

• Strike Stainless steel or brass, 4-7/8" x 1-1/4" curved lip ANSI strike

• Handing Handed, field-reversible

• UL Listings UL listed, 3-hour fire doors, single and pairs

• ANSI Specification Meets all Grade 1 security, operational, dimensional and cycling requirements of ANSI/BHMA A156.13 Series 1000, Lock body conforms to Federal Standatd FF-H-106 Type 86/87

Code Compliance

• ANSI A156.13 Series 1000 Grade 1

• Listed UL10C and UBC 7.2 for positive pressure

• ANSI A117.1 ADA Barrier-free Accessibility

• C-UBC California Uniform Builders Code - 2001

• NFPA-80 National Fire Protection - 1999

• NFPA-101National Fire Protection-Life Safety - 2000

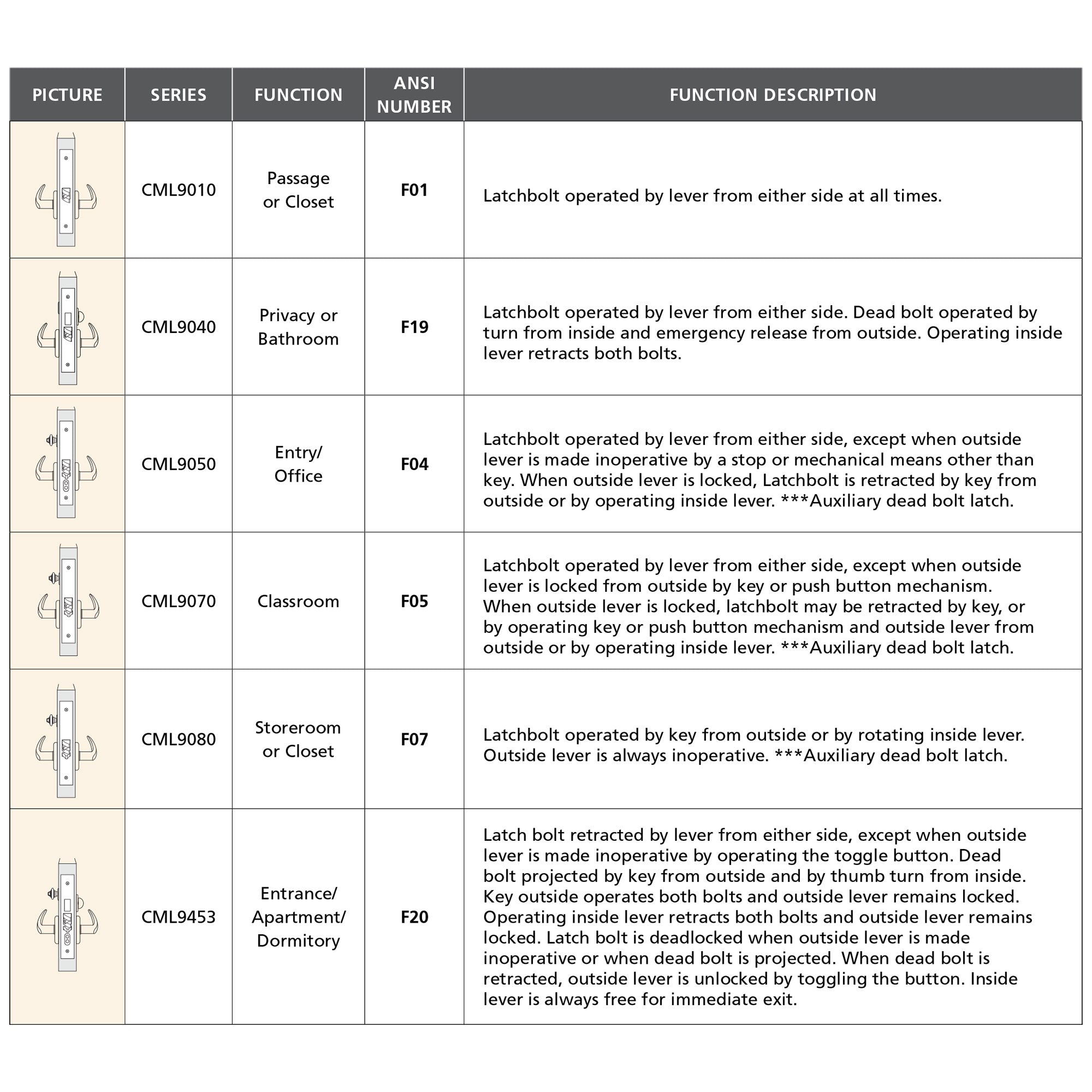

Available Models / Functions:

• CML9010 Passage / ANSI Function F01 / Keyless
• CML9040 Privacy / ANSI Function F19
• CML9050 Office / ANSI Function F04
• CML9070 Classroom / ANSI Function F05

• CML9080 Storeroom or Closet / ANSI Function F07
• CML9453 Entrance/Apartment/Dormitory / ANSI Function F20
